  • CDP-TW 3000-K-BSY+

CDP-TW 3000-K-BSY+

MOST POWERFUL 230 V CHAIN DRIVE
Category:

An attractive design thanks to its slim construction: the CDP-TW 3000-K-BSY+ opens large NSHEV roof windows as well as heavy windows and flaps. BSY+ technology allows synchronisation of up to 2 drives.

CDP-TW 3000-K-BSY+

Features

  • Can be used for smoke exhaust openings, D+H Euro SHEV to EN 12101-2, and for daily ventilation.
  • With an integrated BSY+ motor and microprocessor-controlled synchronised electronics.
  • Direct control via 230 V AC
  • High-speed function (HS) for exceptionally fast window opening in the event of fire (SHEV).
  • Up to 4 drives possible in one synchronous group
  • Symmetrical chain outlet for easy installation
  • Pressure relief on the window seal after closing
  • Programmable drive functions and various drive parameters
  • Travel speed in the CLOSE direction drops to 5 mm/s (passive closing edge protection)
  • Timed reversing when an obstacle is detected in the CLOSE direction (active closing edge protection)
  • Available in any RAL shade
  • Can be used for practically all types of window openings
  • The drive is suitable for surface mounting on the window sash or frame
  • Thanks to universal brackets, the drive is compatible with almost all available types of system profiles incl. Aluprof, Colt, Gutmann, Heroal, Hueck, Jet-Brakel, Raico, Reynaers, Sapa, Schüco, Technal, Wicona

Gallery

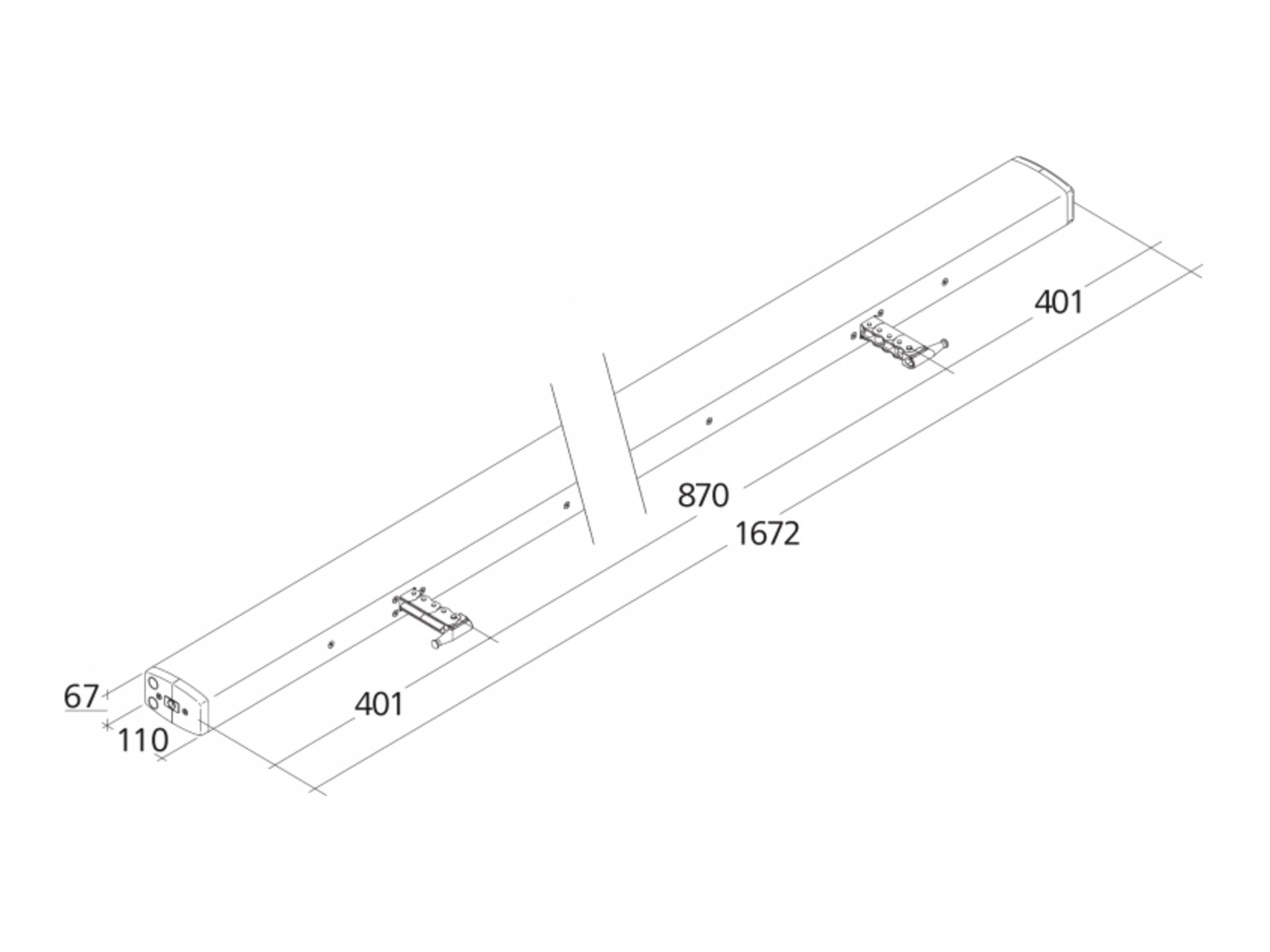

CDP-TW 3000-K-BSY+ - Dimensions
CDP-TW 3000-K-BSY+ - Dimensions (PNG, ~504 KB)

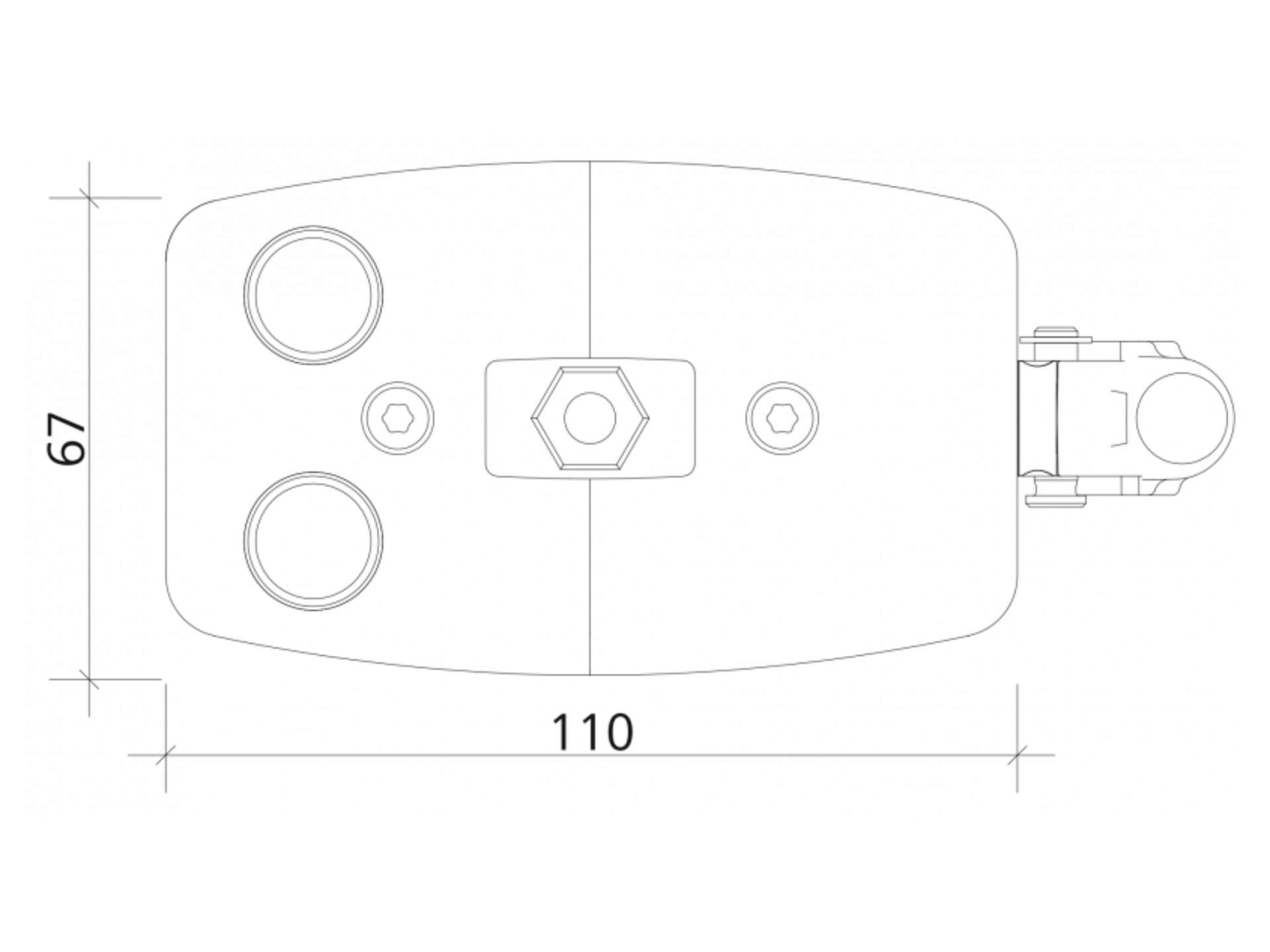

CDP-TW 3000-K-BSY+ - Dimensions (detail)
CDP-TW 3000-K-BSY+ - Dimensions (detail) (PNG, ~630 KB)

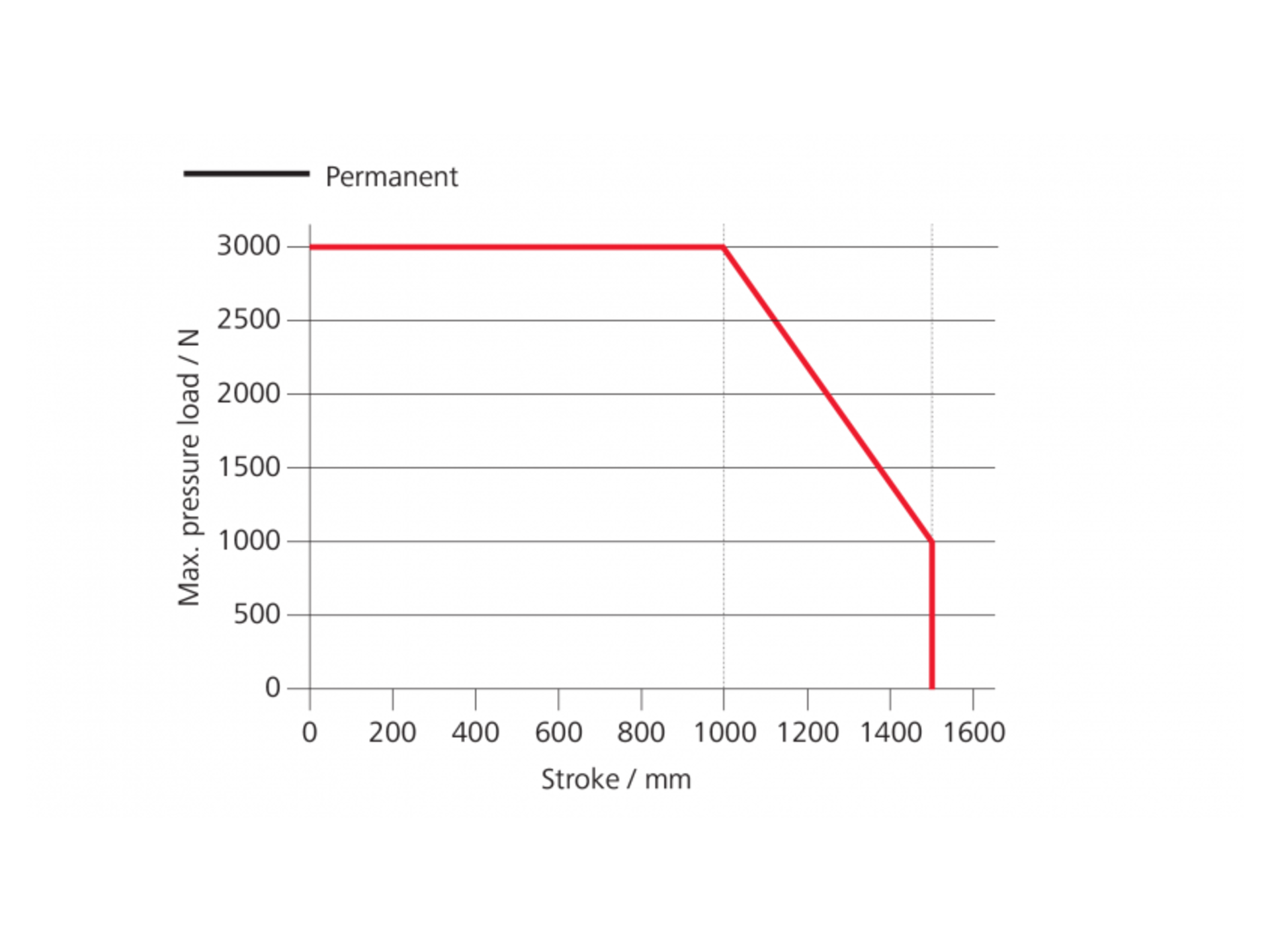

CDP-TW 3000-K-BSY+ - Force diagram
CDP-TW 3000-K-BSY+ - Force diagram (PNG, ~457 KB)

Downloads

Technical data

CDP-TW 3000-K-BSY+
Power supply 230 V AC / +10 % … - 15 %
Input frequency 50 Hz
Power 160 W / 214 VA
Duty cycle 30 % (ON: 3 min. / OFF: 7 min.)
Push force 3 000 N
Pull force 3 000 N
Nominal locking force * 6 000 N
Service life > 10 000 double strokes
Stroke 800 - 1 500 mm
Opening speed (daily ventilation) 6 mm/s
Opening speed (SHEV) 17.7 mm/s
Closing speed 6 mm/s
Protection rating IP 32
Emission sound pressure level LpA ≤ 70 dB(A)
Temperature range -15 °C (-5 °C **) ... +75 °C
Fire resistance B300 (30 min / 300 °C)
Material aluminium
Surface finish powder coating
Colour white aluminium (~ RAL 9006)
Connection 2.5 m silicone cable
W x H x D 1 672 - 2 002 *** x 67 x 110 mm
Weight 14.90 - 21.40 kg***
* Depending on the anchoring method.
** In accordance with VdS 2580.
*** Depending on the stroke length.

Optional extras

  • Function programming
    The option of configuring drive parameters (e.g. the stroke) individually using software and the related service tools, for drives fitted with PLP, BSY or BSY+ electronics.
  • BSY+ (drive synchronisation)
    BSY+ enables communication and synchronisation between different components in a window. For example, between chain drives in synchronous operation or between window drives and locking drives (e.g. FRA 11 BSY+ or VLD-BSY+).
  • SGI signal (position reporting)
    In combination with the D+H servo plug-in unit SE 622 or the BSY gateway BSY-GW-024-010-U, drives can be controlled with precise positioning.
  • Acoustic signal (corresponding to the protection class)
    AS2 corresponds to “protection class 2” of the ZVEI risk assessment by means of an acoustic warning signal in the “CLOSED” running direction. AS3 corresponds to “protection class 3” of the ZVEI risk assessment: in addition to AS2, it stops the drive for 11 s with a remaining stroke of 28 mm.
  • End position signal (OPEN / CLOSED)
    Feedback from the drive via an integrated potential-free switching contact. It is given when the chain drive or linear drive has fully extended or retracted.

Certificates and approvals

  • EN 12101-2
  • Dekra
