  • CPS-M1-080

CPS-M1-080

MODULAR SHEV CONTROL PANEL PACKED WITH TECHNOLOGY
Category:

A digital, pre-assembled SHEV control panel: the CPS-M1-080 represents a revolution in safety technology. It boasts a load current of 80 A, ten combined RT and RM lines and also ten independently controllable motor connections.

CPS-M1-080

Features

  • Power supply to connected drives with a total current draw of up to 80 A
  • Tested and certified to ISO 21927-9, VdS 2581, VdS 2593 and DIN EN 12101-10.
  • The AdComNet bus system for seamless interconnection of modules within the CPS-M and other D+H AdComNet components.
  • Two-way communication with ACB-compatible drives
  • Power supply and communication connection via integrated connectors
  • Customisable, programmable control panel functions
  • Elegant menu control via a 3.5" colour touch panel, through which the system status of individual modules can be visually monitored (optional)
  • Freely assignable lines/groups
  • Trigger module TMA: 2 independent lines for connecting up to 10 SHEV control panels each and 30 fire detectors
  • Trigger module AM: 2 independent groups for connecting drives, each with a total maximum current of 10 A

Gallery

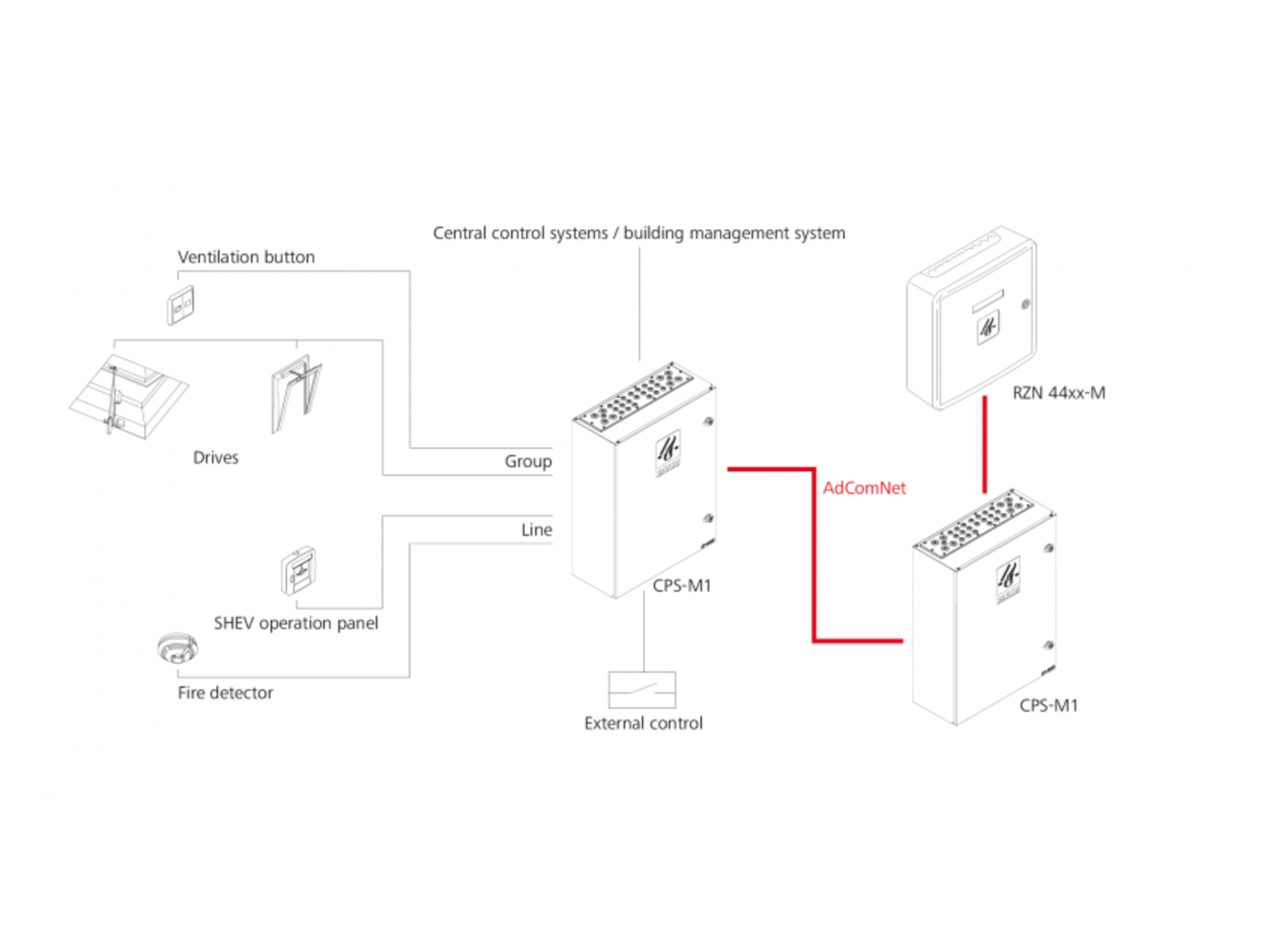

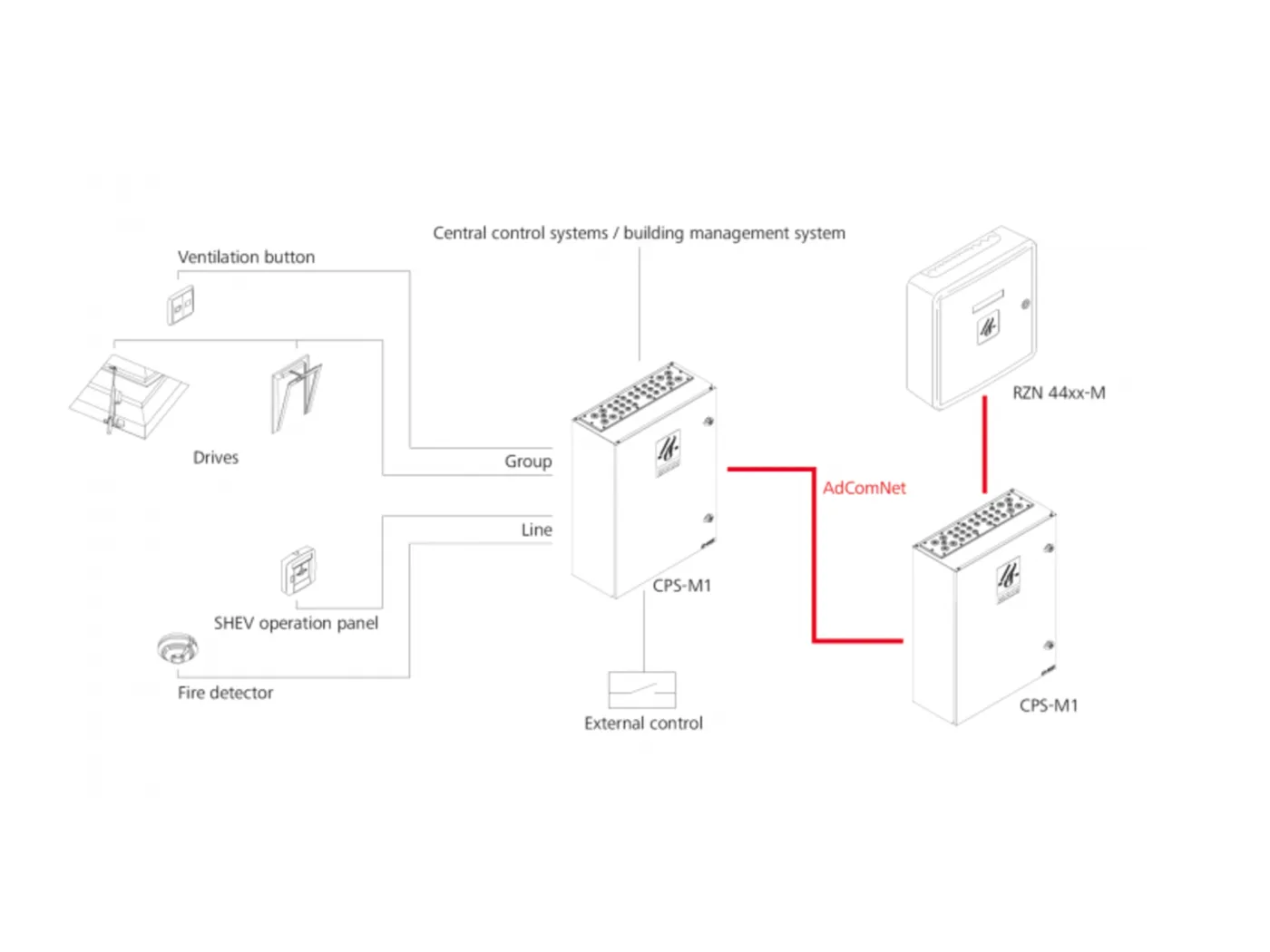

CPS-M1-080 - Wiring diagram
CPS-M1-080 - Wiring diagram (PNG, ~492 KB)

Downloads

Technical data

CPS-M1-080
Power supply 230 V AC / 50 Hz / 2080 VA
Output 24 V DC / 80 A
Ripple < 50 mVss
Battery Type 6 (4x)
Number of groups default 10, max. 10*
Number of lines default 4, max. 4*
Monitoring mode pulse operation
Operating mode SHEV / daily ventilation short-term operation 30% duty cycle
Protection rating IP 54
Temperature range -5 °C ... +40 °C
Material Steel
Colour Light grey (~ RAL 7035)
W x H x D 800 x 1 000 x 300 mm
Weight ≥ 58.50kg **
* The maximum number stated is in the basic configuration. In a custom configuration, the maximum number is not limited.
** Depending on the number of groups and lines selected.
