CPS-M1-S
MODULAR SHEV CONTROL PANEL PACKED WITH TECHNOLOGY
A fully modular SHEV control panel: the CPS-M1-S is our most innovative development. This control panel is fitted with the required current load and CPS-M modules according to customer requirements.
Features
- Variable modular technology for complex positioning requirements
- Tested and certified to ISO 21927-9, VdS 2581, VdS 2593 and DIN EN 12101-10.
- Flexible system design thanks to a mounting rail assembly for all modules and accessories
- Power supply and communication connection via integrated connectors
- Possibility of retrofitting components in the event of structural changes
- Configurable SHEV and ventilation functions via D+H SCS software
- 2x max. 10 A drive current for each drive module
- Connection of up to 30 fire detectors or 10 SHEV control panels for each plug-in unit of the monitored line.
- The AdComNet bus system for seamless interconnection of modules within the CPS-M and other D+H AdComNet components.
- Flexible use of configurable digital inputs and outputs
- Stabilised output voltage thanks to Power Pack technology
Gallery

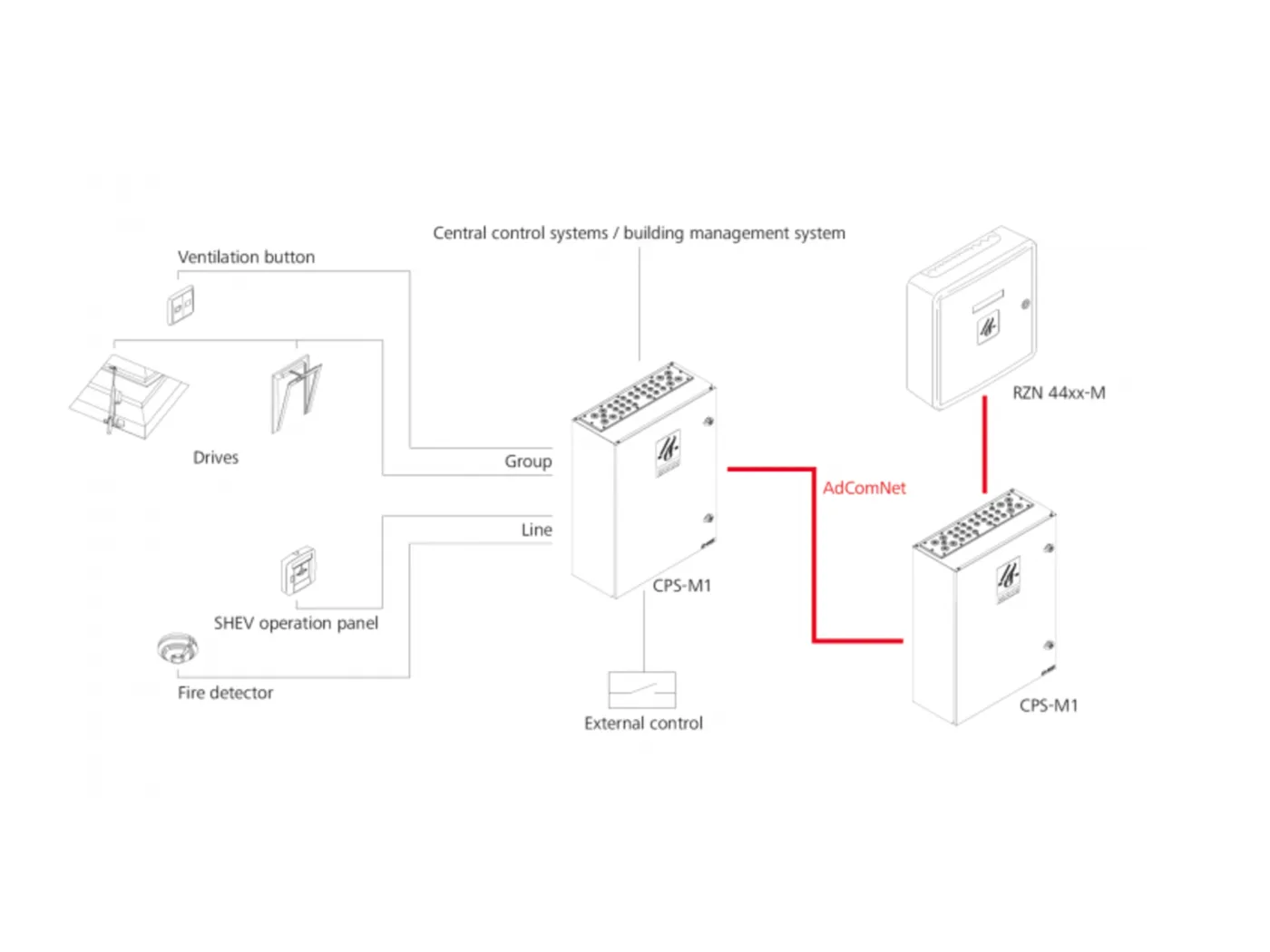

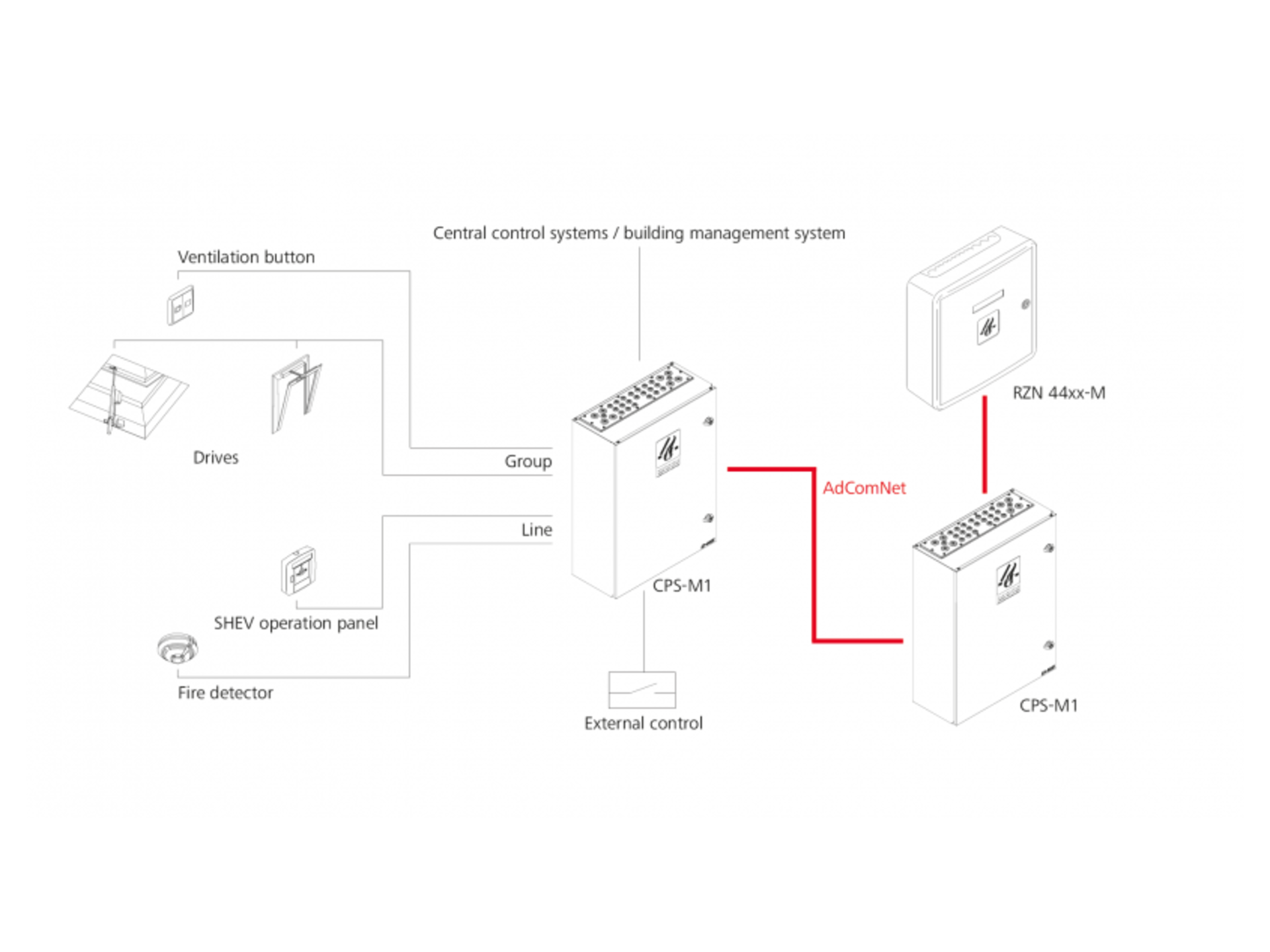

CPS-M1-S - Wiring diagram (PNG, ~492 KB)
Technical data
| CPS-M1-S | |
|---|---|
| Power supply | 230 V AC / 50 Hz |
| Output | 24 V DC |
| Ripple | < 50 mVss |
| Number of groups | unlimited |
| Number of lines | unlimited |
| Monitoring mode | pulse operation |
| Operating mode SHEV / daily ventilation | short-term operation 30% duty cycle |
| Protection rating | IP 54 |
| Temperature range | -5 °C ... +40 °C |
| Material | Steel |
** Depending on the number of groups and lines selected.
Certificates and approvals
- VdS Schadenverhütung
