  • FIEGER FLW 40

FIEGER FLW 40

LOUVRE WINDOW, NOT JUST FOR SHEV
Category:

The FLW 40 is a leader in its field, boasting some of the best technical parameters ever achieved in louvre windows. It is a versatile, highly adaptable product offering unlimited height and variable window width, recessed frames and custom louvre sizes.

Thanks to certification to burglar resistance class RC2, DIN EN 1627-1630, the FLW 40 window is also suitable for buildings with high security standards.

FIEGER FLW 40

Features

  • Certified to EN 12101-2 – suitable for use in smoke and heat exhaust ventilation equipment
  • Fitted with a CE label to EN 14351-1
  • Option of triple glazing or thermally insulated aluminium panels
  • Offers good acoustic and thermal insulation properties
  • Wide range of uses including daily ventilation or SHEV
  • Supplied including a 24 V or 230 V electric drive (LDx)
  • Surface finish available in any RAL shade
  • Available incl. a perimeter frame for installation into a mullion-transom façade or directly into a structural opening.

Gallery

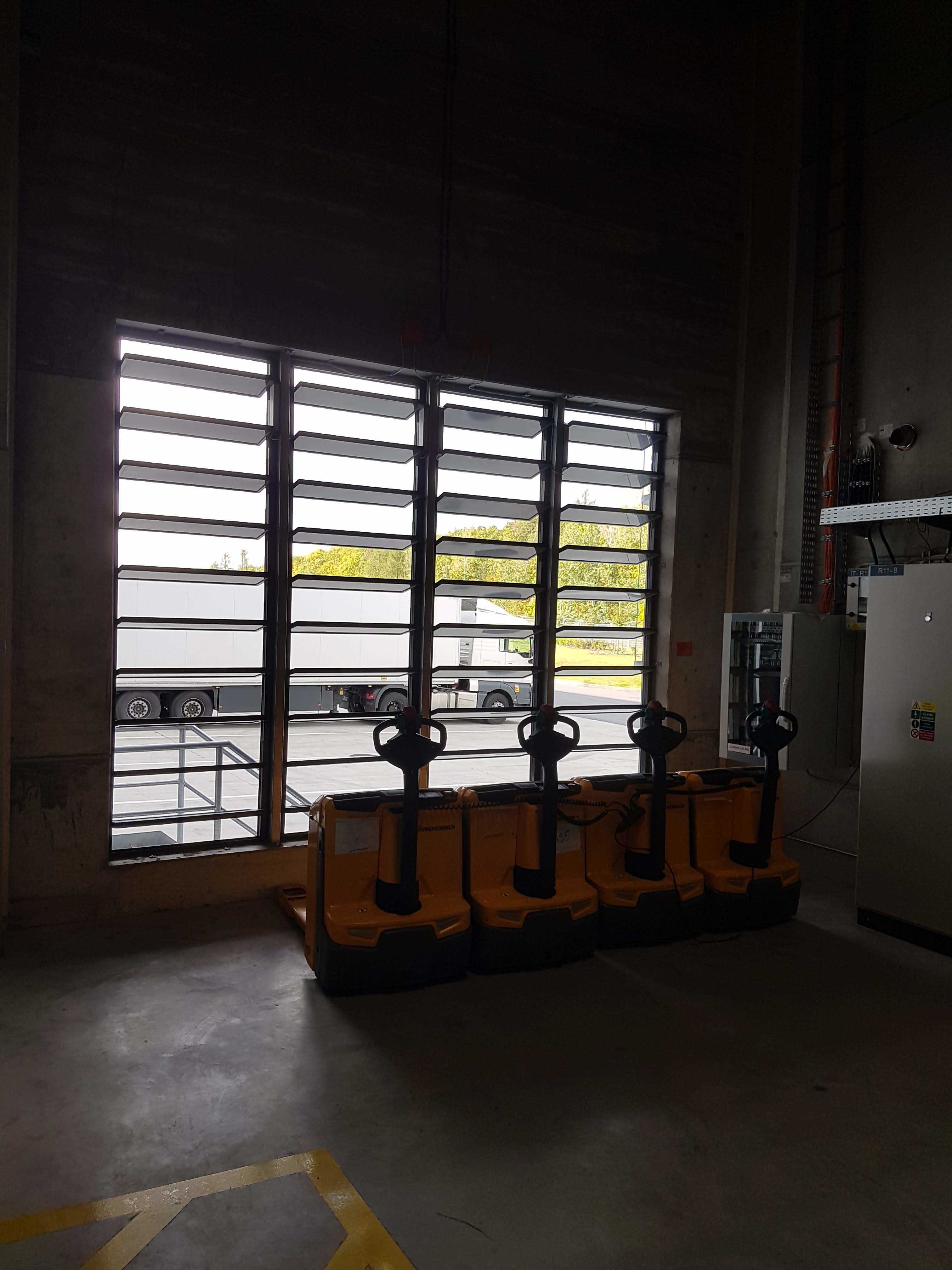

FLW 40 - Air supply for SHEVS
FLW 40 - Air supply for SHEVS (JPG, ~427 KB)

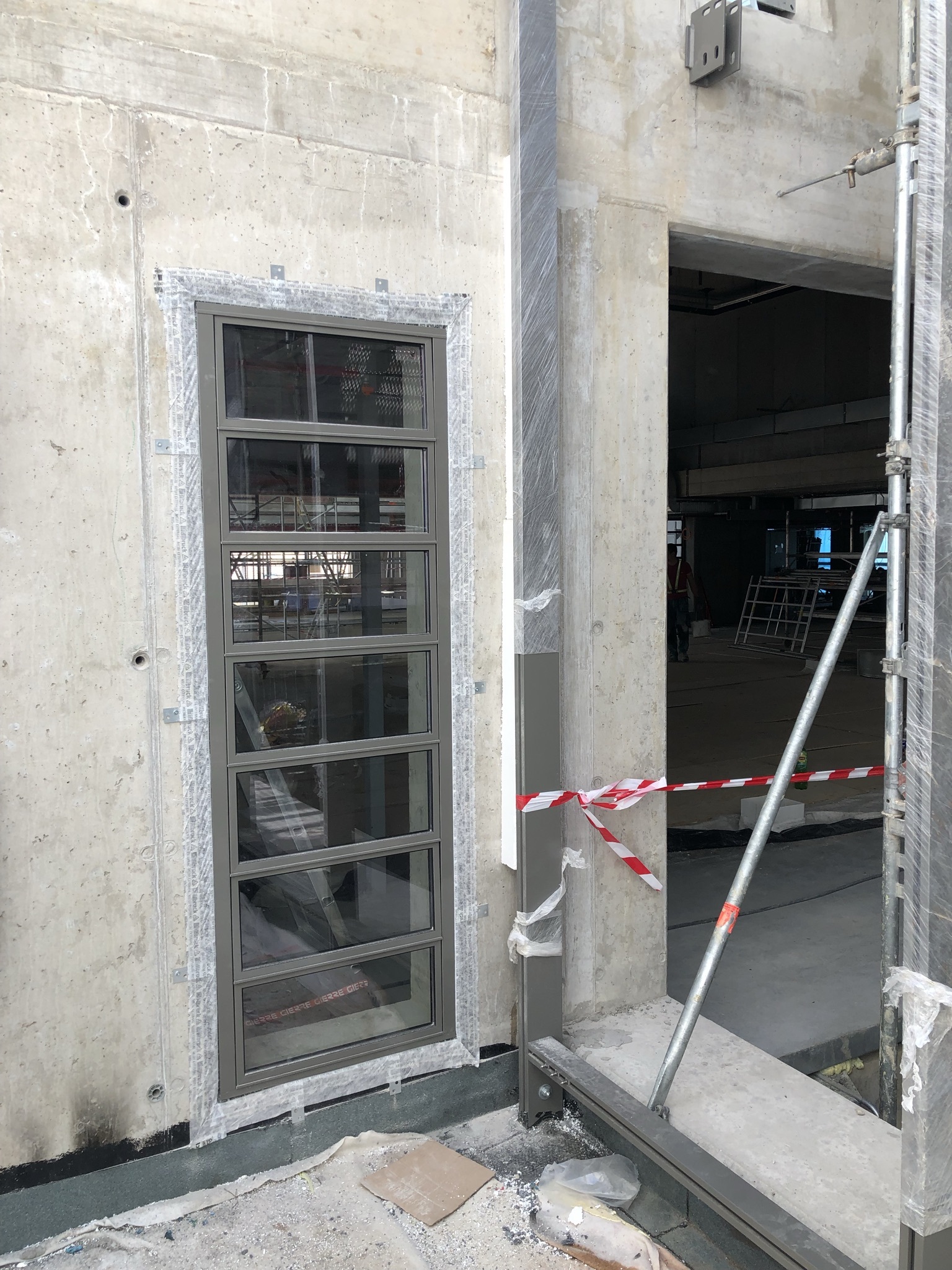

FLW 40 - Air supply for SHEVS from the inner courtyard
FLW 40 - Air supply for SHEVS from the inner courtyard (JPEG, ~946 KB)

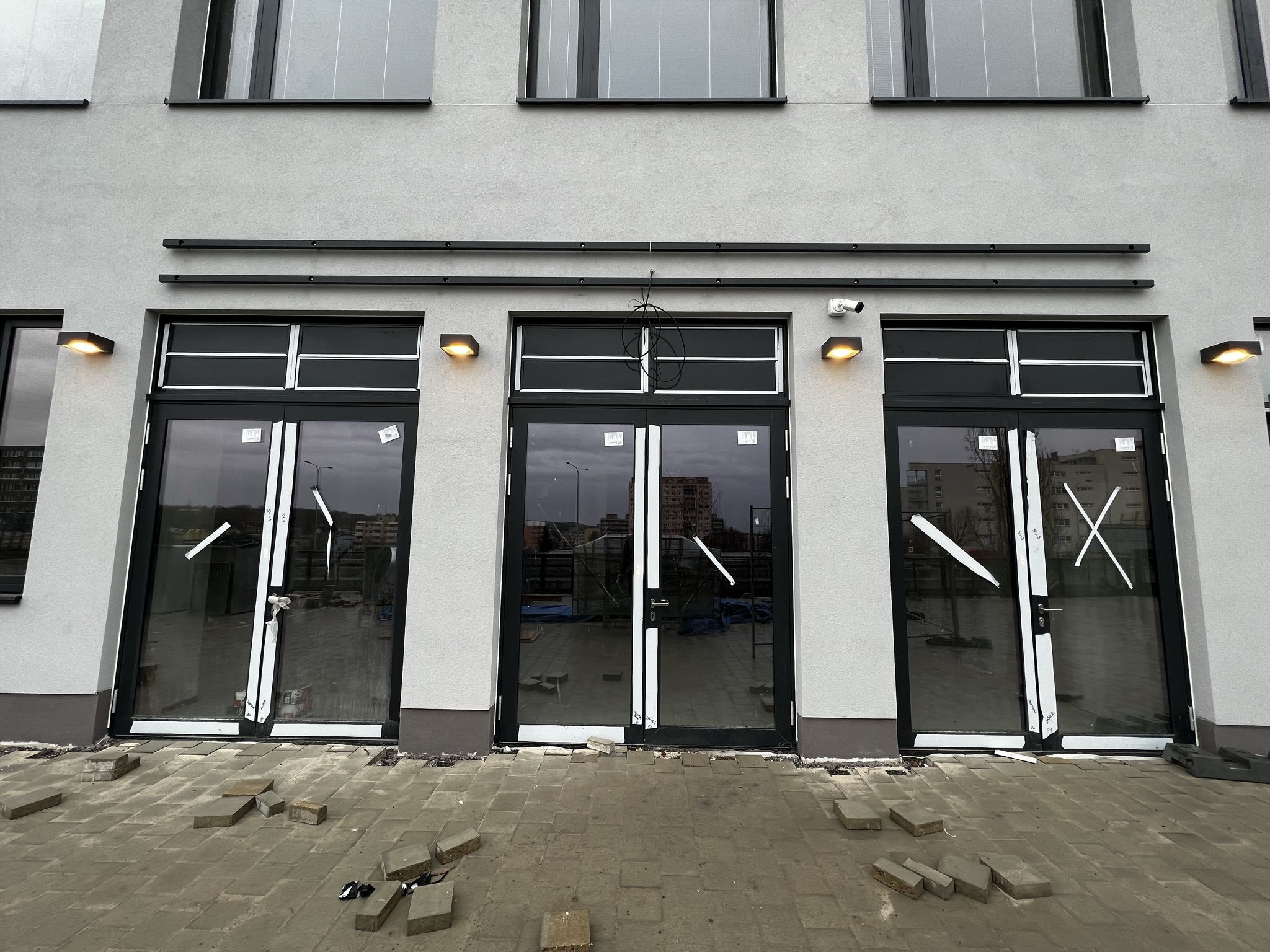

FLW 40 - Air supply for SHEVS above the door
FLW 40 - Air supply for SHEVS above the door (JPEG, ~931 KB)

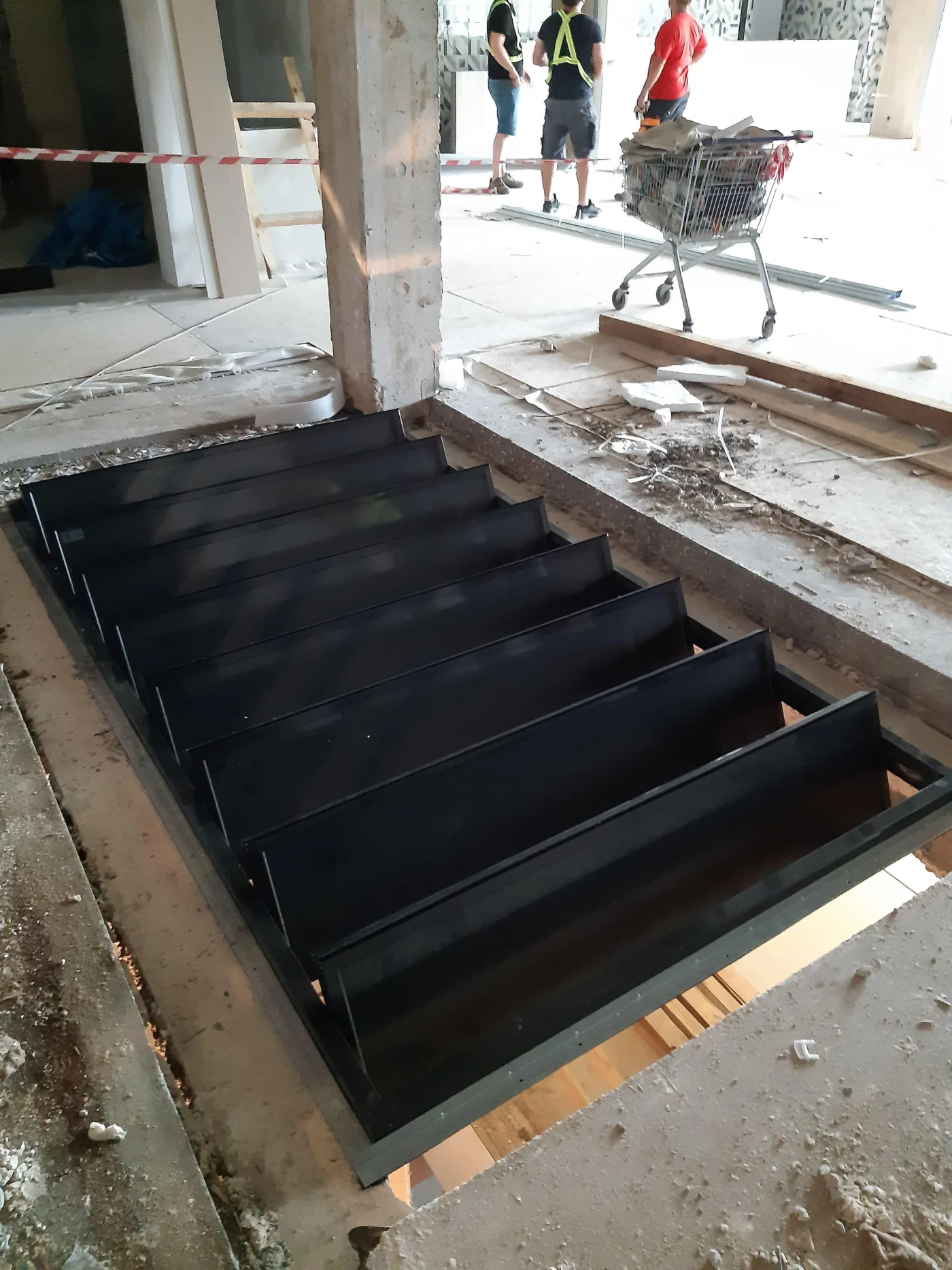

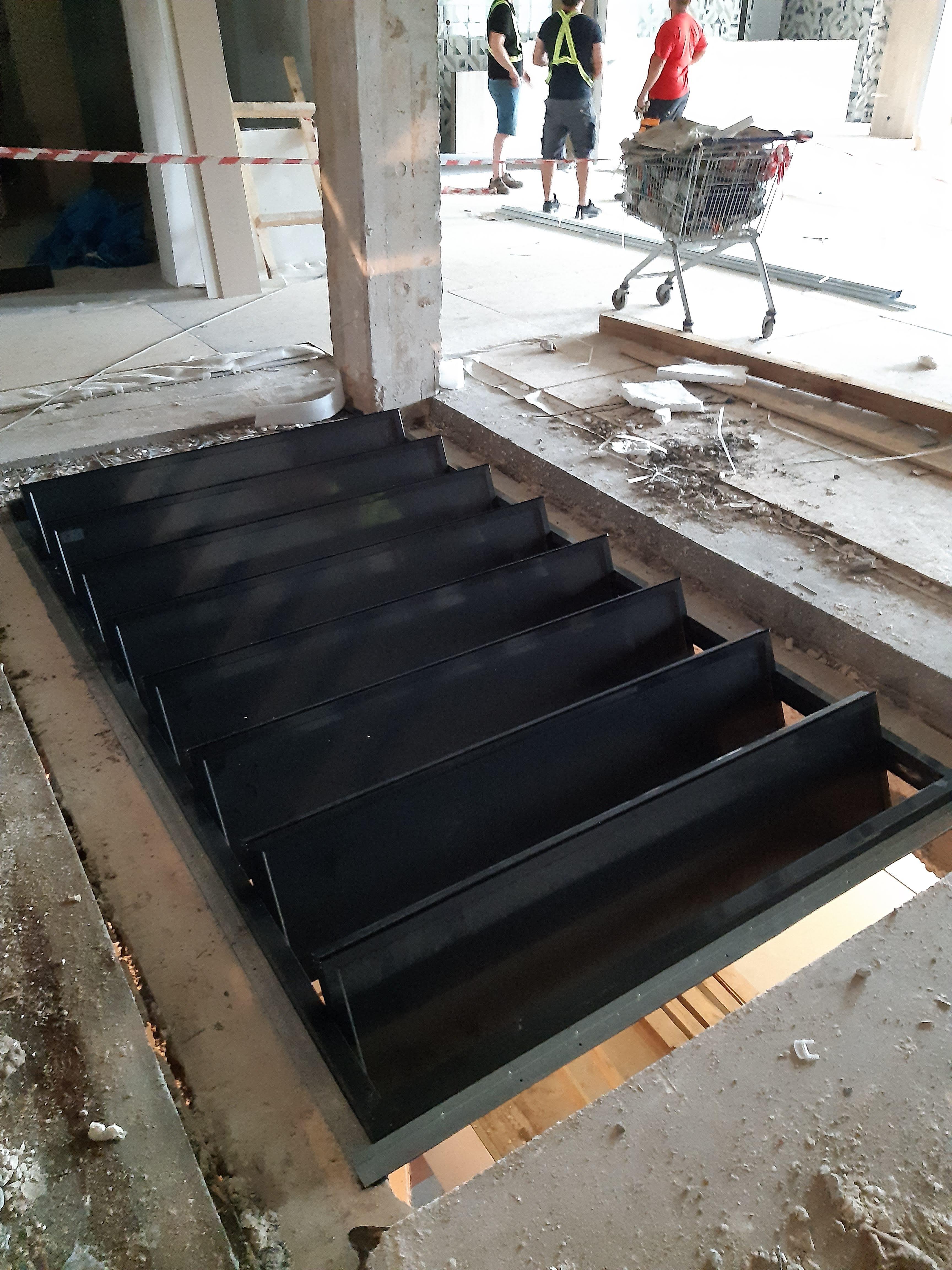

FLW 40 - Partition of a vertical ventilation shaft
FLW 40 - Partition of a vertical ventilation shaft (JPG, ~2 MB)

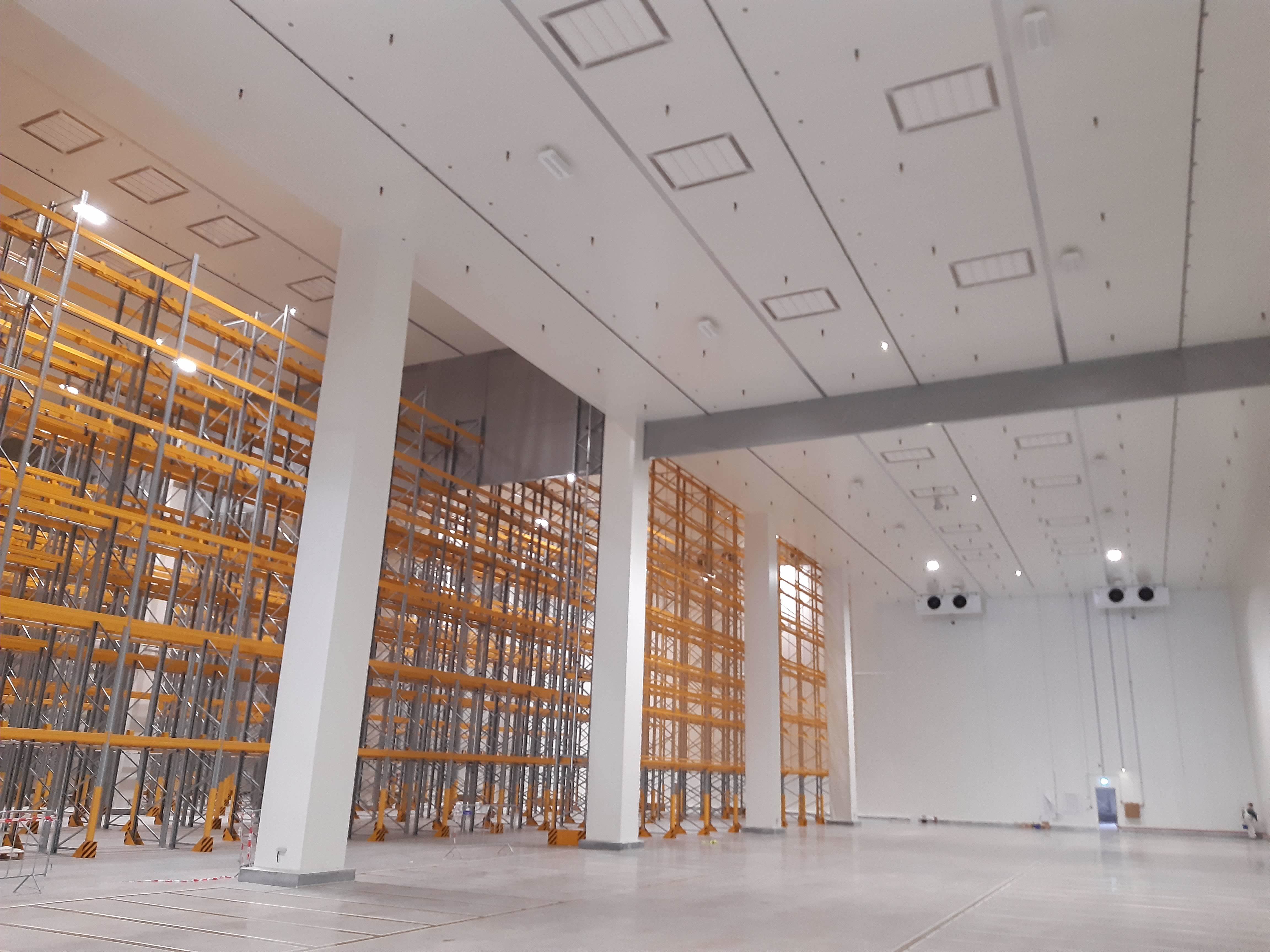

FLW 40 - Fire ventilation of a freezer room
FLW 40 - Fire ventilation of a freezer room (JPG, ~978 KB)

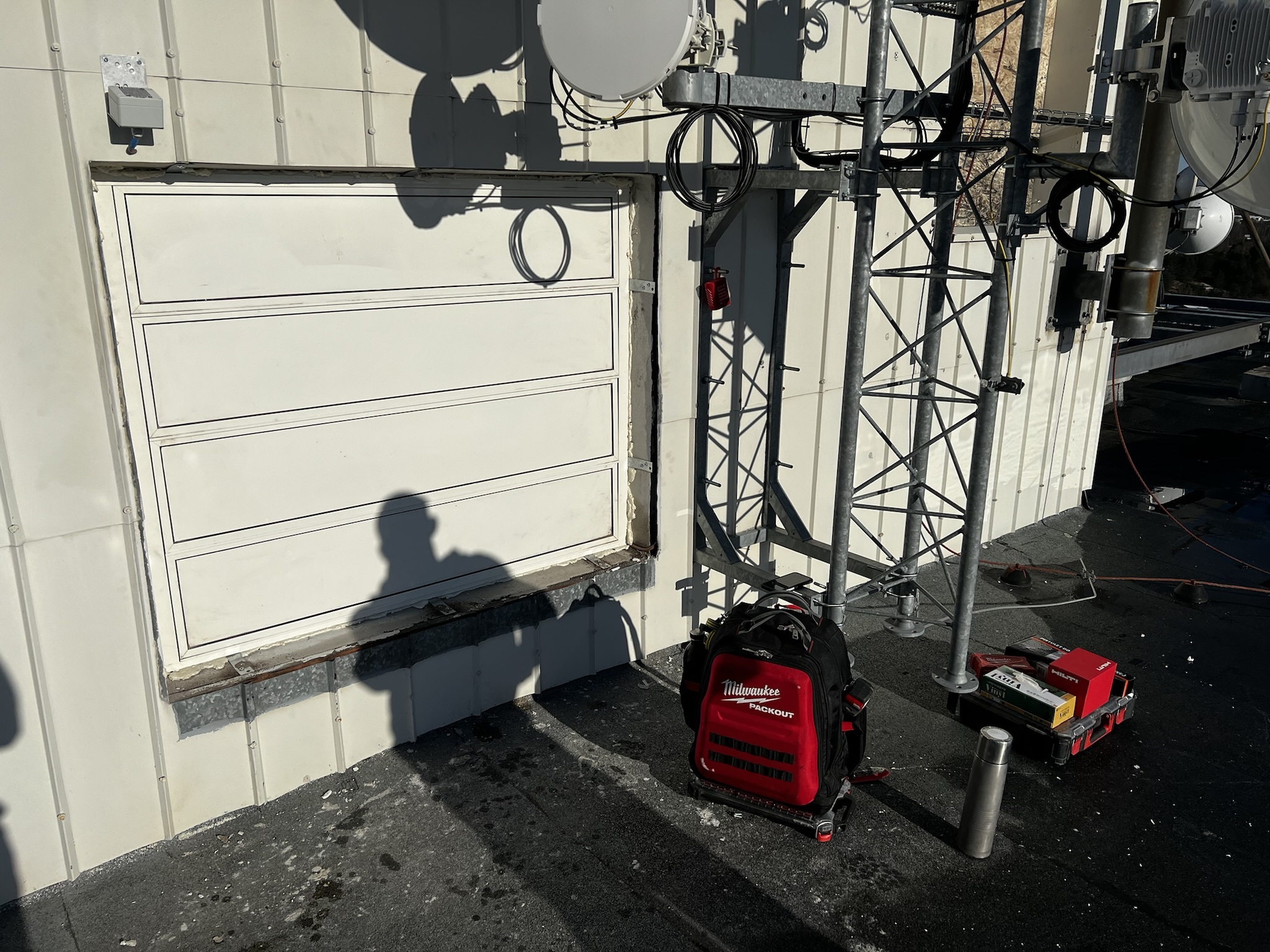

FLW 40 - Smoke extraction from a protected escape route (CHÚC)
FLW 40 - Smoke extraction from a protected escape route (CHÚC) (JPEG, ~946 KB)

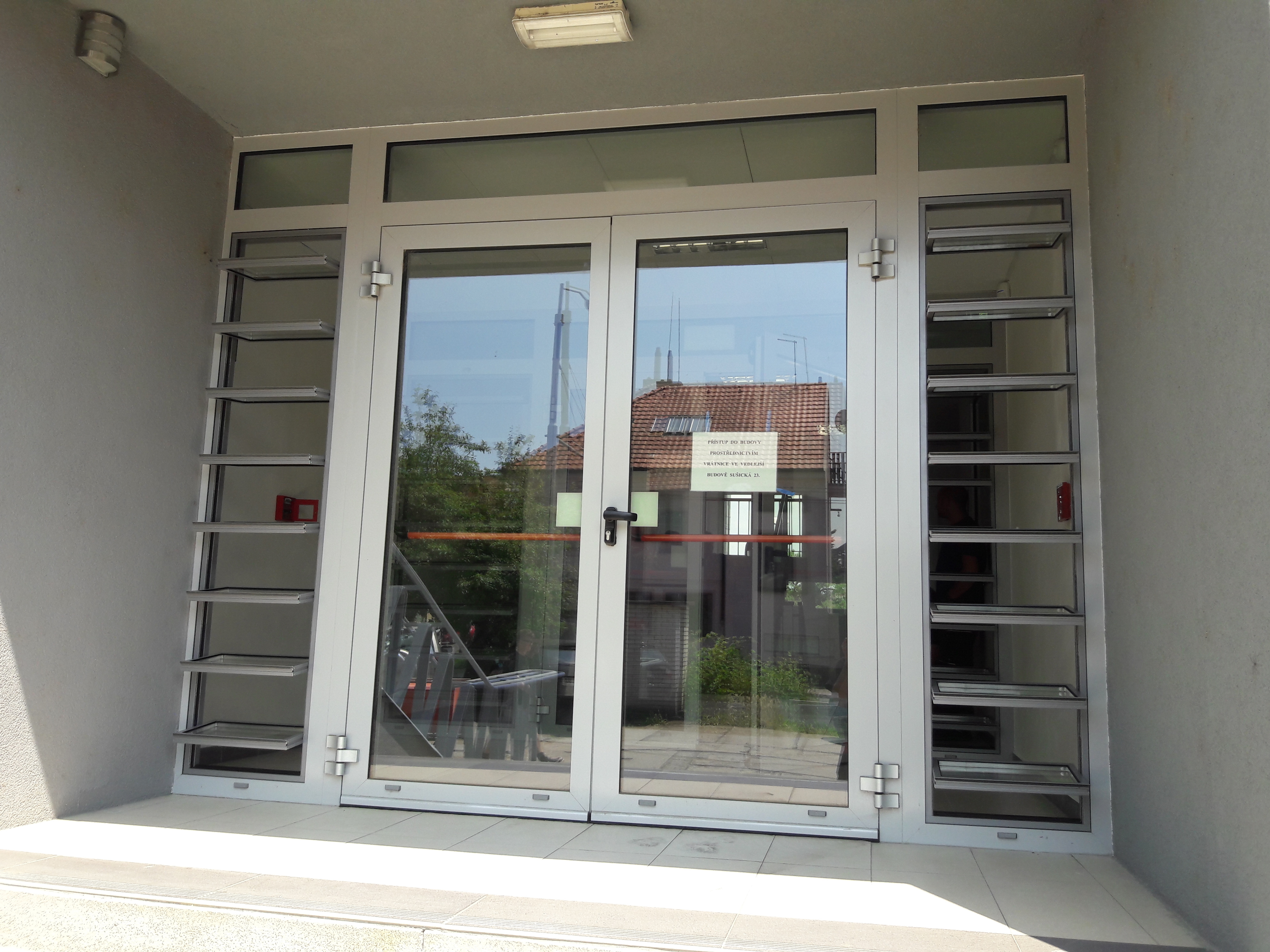

FLW 40 - Door portal on both sides
FLW 40 - Door portal on both sides (JPG, ~4 MB)

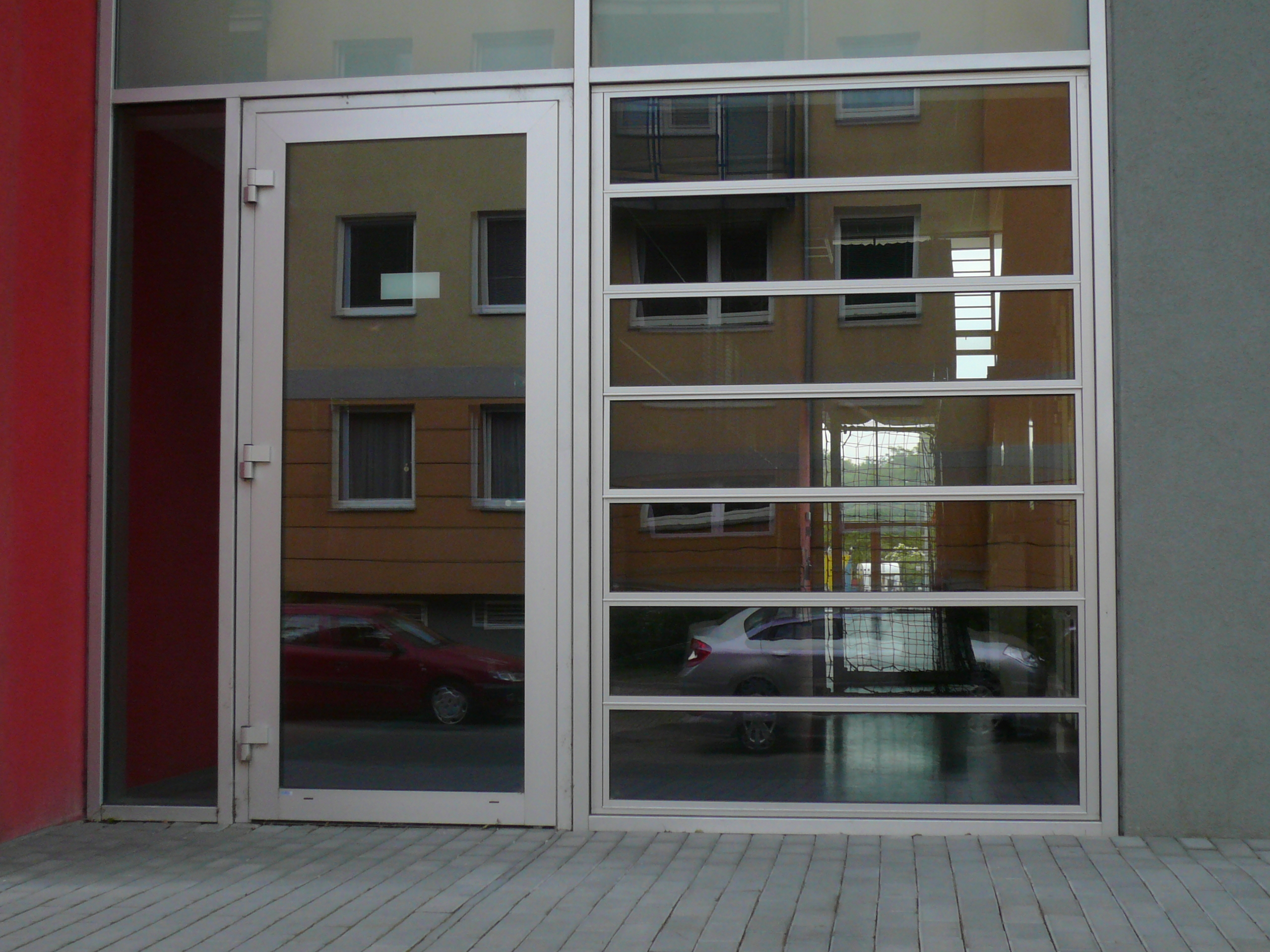

FLW 40 - Door portal on one side
FLW 40 - Door portal on one side (JPG, ~3 MB)

Downloads

Technical data

Frame width (NSHEV) 21/28 mm
Frame depth (NSHEV) 50.8 mm
Frame width 40 mm
Frame depth 85 mm
Louvre height 250 - 500 mm*
Maximum height Unlimited (individual modules can be linked together)
Maximum width 2500
Total glazing thickness 36/40
Glazing triple
Flow coefficient to EN 12101-2 Up to 0.59
Wind load classification to EN 12101-2 WL 3000
Resistance to heat and mechanical stability to EN 12101-2 B 300-E
Reliability classification to EN 12101-2 Re 1000
Snow load classification to EN 12101-2 SL 0
Classification for low ambient temperatures to EN 12101-2 T (-5)
Air permeability classification to EN 12207 Class 4
Watertightness classification to EN 12208 up to 8A
Resistance to wind load to EN 12210/12211 C2/B2
Thermal performance U-value to EN ISO 10077-1 up to 0.8 W/m²K
Security to EN 1627-EN 1630: RC2 RC2
Tested sound insulation to EN ISO 10140-1/2 41dB
* maximum 339 mm to meet RC2

Certificates and approvals

  • EN 12101-2
