  • FK ROLL EW

FK ROLL EW

RADIATION-REDUCING FIRE CURTAINS
Category:

They have EW fire resistance and reduce heat transfer for 15 to 120 minutes. Unlike other textile fire curtains, they do not need water spraying.

They are lighter, smaller and blend into the interior better than, for example, steel fire shutters.


When there is no fire, the curtains are almost invisible. This makes them useful, for example, in garages, office buildings or shopping centres. We manufacture them only from proven components from Germany.

Advantages of FK ROLL EW
FK ROLL EW Red
FK ROLL EW extended Red
FK ROLL EW White
FK ROLL EW Black

6 reasons to choose FK ROLL EW

The curtains do not need external or integrated water spraying
The curtains do not need external or integrated water spraying

The curtains do not need external or integrated water spraying

FK ROLL EW prevents heat transfer to the EW rating for 15—120 minutes without any further cooling. You therefore do not need to arrange a hydrant water supply.

A self-gravity mechanism protects against power failure
A self-gravity mechanism protects against power failure

A gravity mechanism protects against power failure

If there is a power failure, the curtain lowers on its own thanks to a weight at the bottom of the fabric. This is known as self-closing capability C.

We develop, manufacture and install fire curtains ourselves
We develop, manufacture and install fire curtains ourselves

We develop, manufacture and install fire curtains ourselves

We install fire curtains throughout the Czech Republic and Slovakia. We constantly improve them to ensure the highest possible protection.

We incorporate the curtains into your fire protection system
We incorporate the curtains into your fire protection system

We will incorporate curtains into your fire protection system

We will prepare a solution tailored to the building in question, one that meets all statutory standards and protects lives and property.

Long-term and honest service of fire curtains
Long-term and honest service of fire curtains

Long-term, honest fire curtain servicing

We pride ourselves on a fair approach. We do not sell curtains below cost only to then profit from excessively high fees for regular curtain inspections.

We have a prestigious European CE certificate
We have a prestigious European CE certificate

We hold the prestigious European CE certificate

FK ROLL EW fire shutters have passed strict tests to EN 13241:2003+A2:2016 and EN 16034:2014, which are the standard throughout Europe.

I want FK ROLL EW fire curtains

3 ways to anchor fire curtains

Installation into a structural opening

FK servis | FK ROLL EW - anchoring method into the opening
FK servis | FK ROLL EW - anchoring method into the opening
  • We install the curtain directly into the opening, for example into a passage between two sections of a warehouse.
  • This reduces the clear dimensions of the opening by 240 mm on the horizontal axis and 200—300 mm on the vertical axis, depending on the type of roller shutter used.
  • The fire roller shutter can be clad in plasterboard, so that it isalmost invisible.

Anchoring the curtain in front of the structural opening

FK servis | FK ROLL EW - anchoring method onto the opening
FK servis | FK ROLL EW - anchoring method onto the opening
  • We use a steel structure and fix the curtain to the lintel above the structural opening. This means the clear dimensions of the structural opening are not reduced.
  • The structure is alsoprotected against damage for example from a forklift. It is also easily accessible, which makes maintenance easier.

Installation into the ceiling

FK servis | FK ROLL EW - anchoring method into the ceiling
FK servis | FK ROLL EW - anchoring method into the ceiling
  • So that we do not reduce the clear height of the opening, we anchor the fire curtain to the ceiling.
  • We install the curtain's headbox flush with the suspended ceiling, so that it is not visible.
  • This is used in shopping centres or office buildings, where it is important that curtains do not look disruptive in the interior.

Visualisation of FK ROLL EW in use

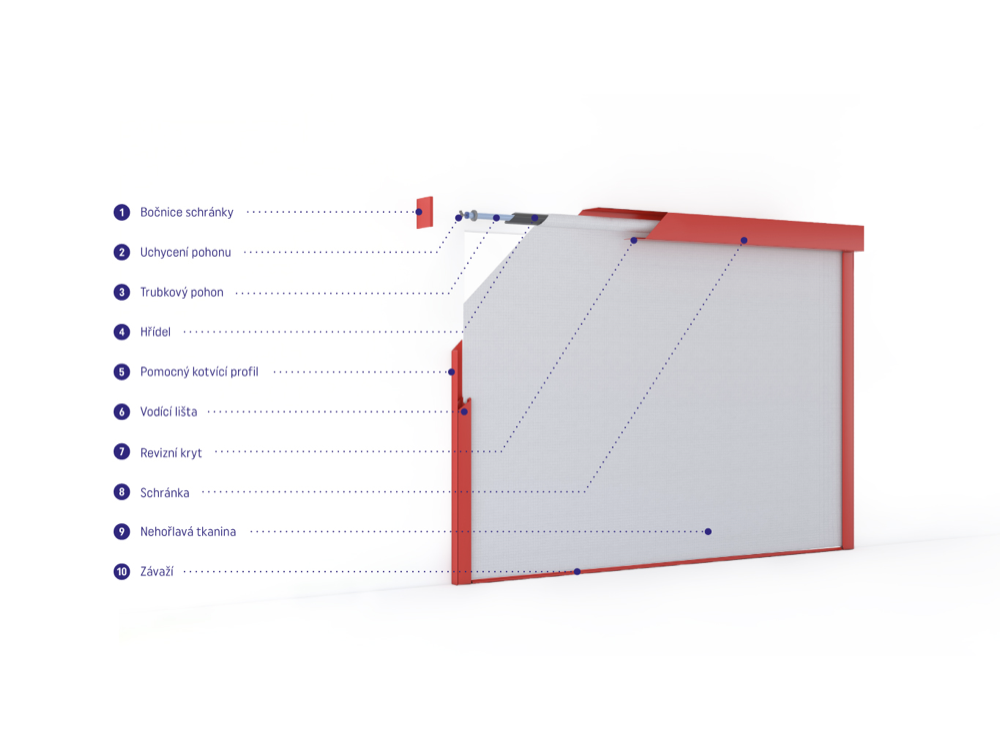

FK servis | FK ROLL EW - construction of the fire shutter, what it consists of and what it looks like
FK servis | FK ROLL EW - construction of the fire shutter, what it consists of and what it looks like (PNG, ~292 KB)
FK servis | FK ROLL EW - textile roller fire shutter (fire curtain), forklift truck
FK servis | FK ROLL EW - textile roller fire shutter (fire curtain), forklift truck (JPG, ~988 KB)
FK servis | FK ROLL EW - textile roller fire shutter (fire curtain), demonstration of the open and closed state
FK servis | FK ROLL EW - textile roller fire shutter (fire curtain), demonstration of the open and closed state (JPG, ~880 KB)

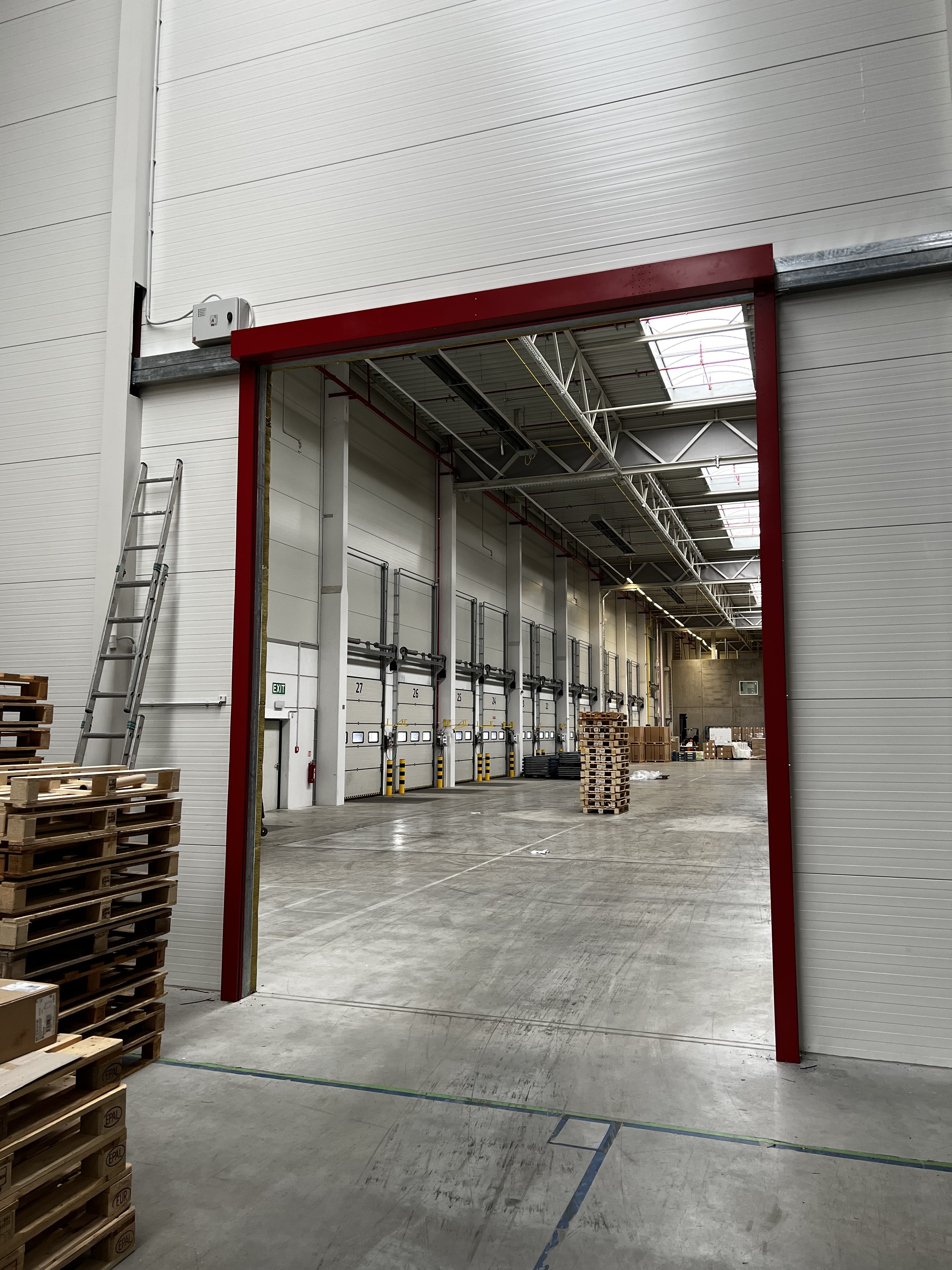

FK servis - FK ROLL EW - Use in a warehouse
FK servis - FK ROLL EW - Use in a warehouse (JPG, ~4 MB)

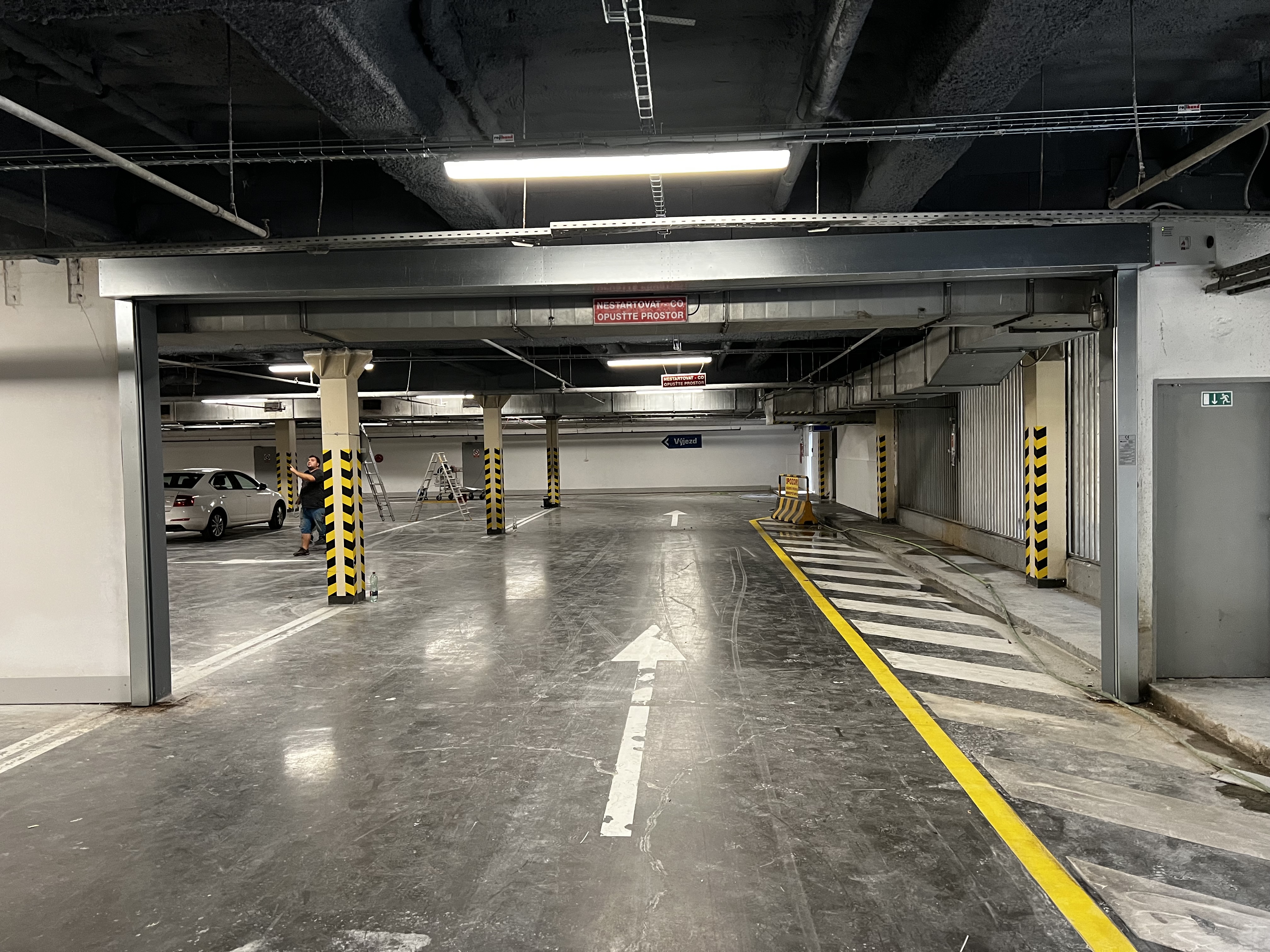

FK servis - FK ROLL EW - Use in garages
FK servis - FK ROLL EW - Use in garages (JPG, ~4 MB)

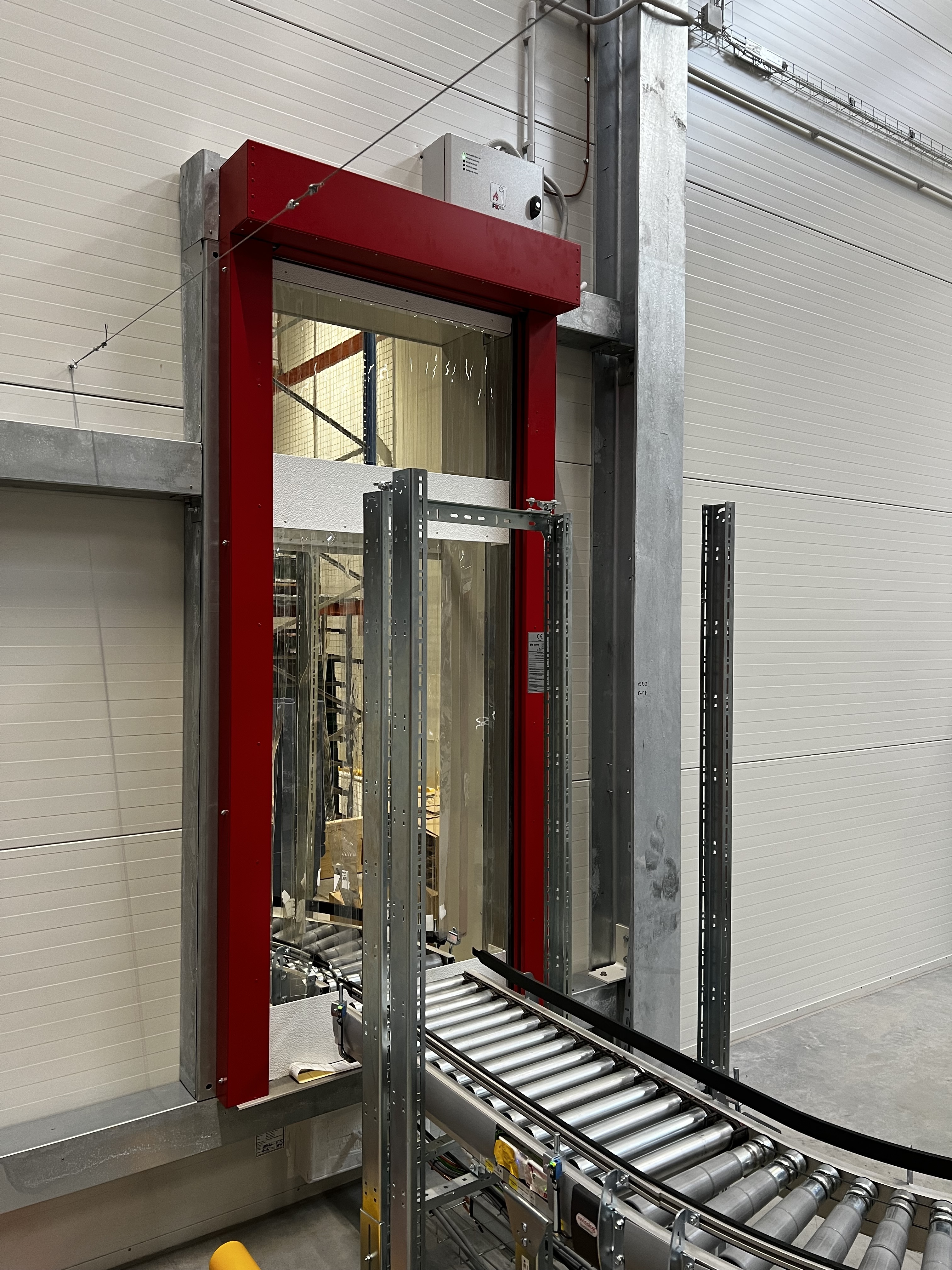

FK servis - FK ROLL EW - Use with a conveyor
FK servis - FK ROLL EW - Use with a conveyor (JPG, ~4 MB)

Downloads

Technical data

FK ROLL EW
Fire resistance EW 15, EW 30, EW 45, EW 60, EW 90, EW 120
Material Fabric made of glass and anti-corrosion fibres
Fabric weight 770 g/m2 or 1660 g/m2*
Fabric colour grey-silver
Power supply 230 V AC
Drive 24 V DC, 230 V AC
Side guide dimensions 120 × 60 mm
Headbox dimensions 200x200 to 300x300 mm **
Colour of visible parts Any shade to the RAL palette
* Depending on the fire resistance.
** Depending on the overall dimensions.
