  • FK ROLL MINI

FK ROLL MINI

FIRE CURTAINS REPLACING FIRE WINDOWS
Category:

They have EW fire resistance, which reduces the intensity of radiant heat and limits the spread of fire for 15 to 30 minutes. They meet fire protection criteria for residential and commercial buildings, where they reliably replace fire windows. Thanks to a unique system with a thermal fuse, they need neither an electric motor nor a control unit.

FK ROLL MINI curtains are smaller and cheaper than other shutters on the market. Thanks to their colour finish, they blend into their surroundings, and until there is a fire, they are almost invisible. We manufacture them only from proven components from Czechia and Germany.

Advantages of FK ROLL MINI
FK ROLL EW Red
FK ROLL EW extended Red

6 reasons to choose FK ROLL MINI

A cheaper, reliable alternative to fire windows and doors
A cheaper, reliable alternative to fire windows and doors

A cheaper, reliable replacement for fire windows and doors

FK ROLL MINI fire curtains are cheaper, smaller and lighter, and easier to install. They work reliably everywhere it is financially or structurally impossible to install fire windows or doors.

They don't need a motor or power supply
They don't need a motor or power supply

They need neither a motor nor a power supply

FK ROLL MINI curtains work on the principle of a thermal fuse, which melts and triggers the curtain to lower. No electric motor or control unit is needed, which makes installation easier and cheaper than with other fire shutters.

We develop, manufacture and install fire curtains ourselves
We develop, manufacture and install fire curtains ourselves

We develop, manufacture and install fire curtains ourselves

We constantly improve our curtains to provide maximum protection. Installation is carried out throughout the Czech Republic and Slovakia by our team of experienced technicians.

We tailor fire curtains to your needs
We tailor fire curtains to your needs

We will tailor fire curtains to your needs

We give them a surface finish in the shade of your choice. This way we match them to the colour of your windows or façade so that they do not look disruptive.

Long-term service of fire curtains
Long-term service of fire curtains

Long-term fire curtain servicing

Besides installing a solution tailored to your needs, we also take care of annual service inspections. During these, we check and test the function and reliability of the curtains.

MINI curtains meet Czech standards and hold all the necessary certificates
MINI curtains meet Czech standards and hold all the necessary certificates

MINI curtains meet Czech standards and hold all the necessary certificates

FK ROLL MINI fire shutters have met the strict criteria of STN EN 1634-1 + A1: 2018 and STN EN 16034: 2015. This means they can be used throughout the Czech Republic and Slovakia.

I want FK ROLL MINI fire curtains

2 ways to anchor FK ROLL MINI

Installation into a structural opening

FK servis | FK ROLL MINI - anchoring method into the opening
FK servis | FK ROLL MINI - anchoring method into the opening
  • We fit the curtain directly into the opening, for example into a window or single-leaf door between two sections of a hall.
  • The shutter is hidden behind the window frame or under the plaster. This reduces the clear dimensions of the opening by about 10 cm. The curtain and its headbox are smaller than with other shutters, and viewed from the insideit is almost invisible and does not obstruct the view from the window.

Anchoring in front of the structural opening

FK servis | FK ROLL MINI - anchoring method onto the opening
FK servis | FK ROLL MINI - anchoring method onto the opening
  • Using a steel structure, we fix the curtain in front of the window opening. This does not reduce the clear dimensions of the structural opening.
  • The structure is visible from the outside. However, thanks to colour-matching with the frame or façade, it looks unobtrusive.

Gallery

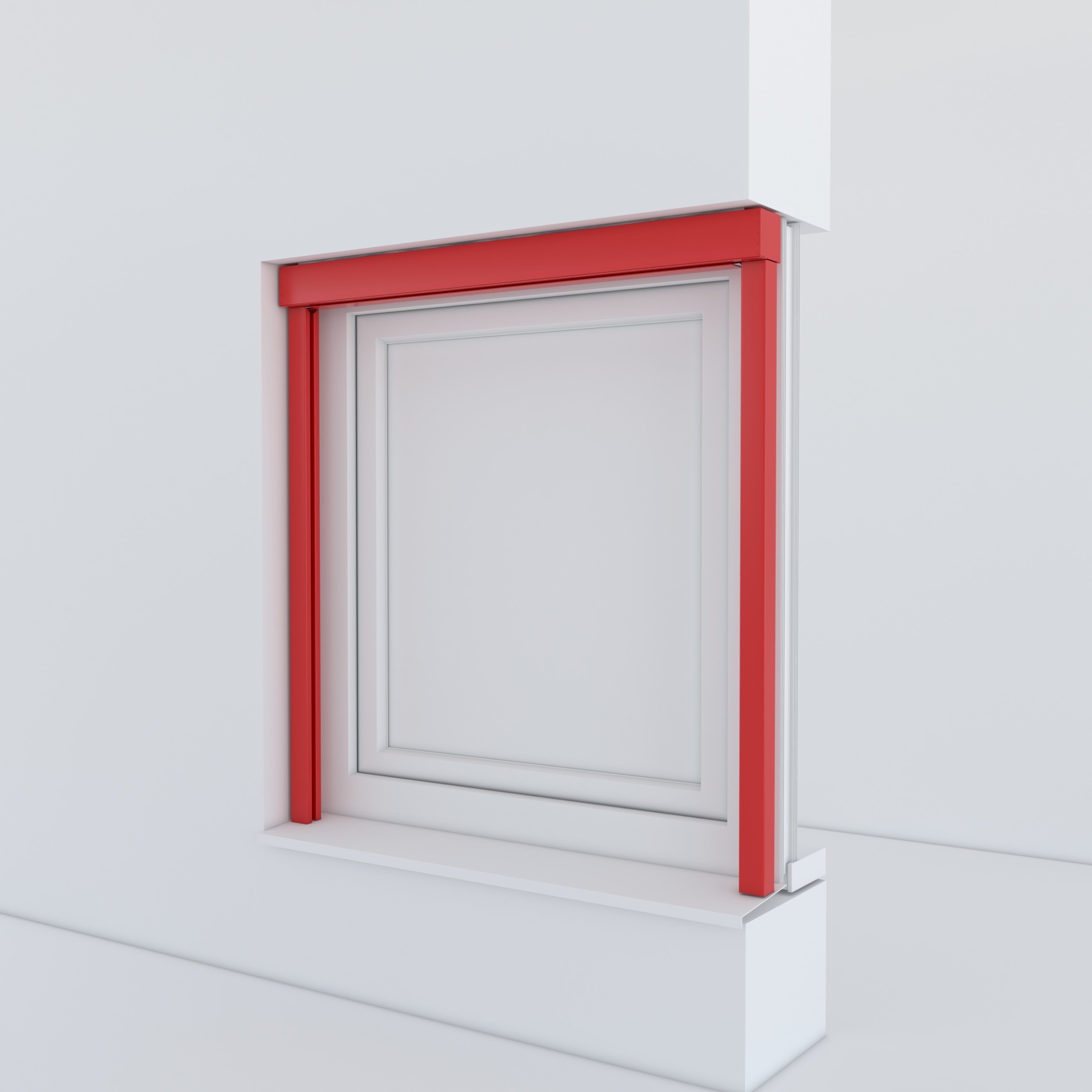

FK ROLL MINI - Open position
FK ROLL MINI - Open position (JPG, ~525 KB)

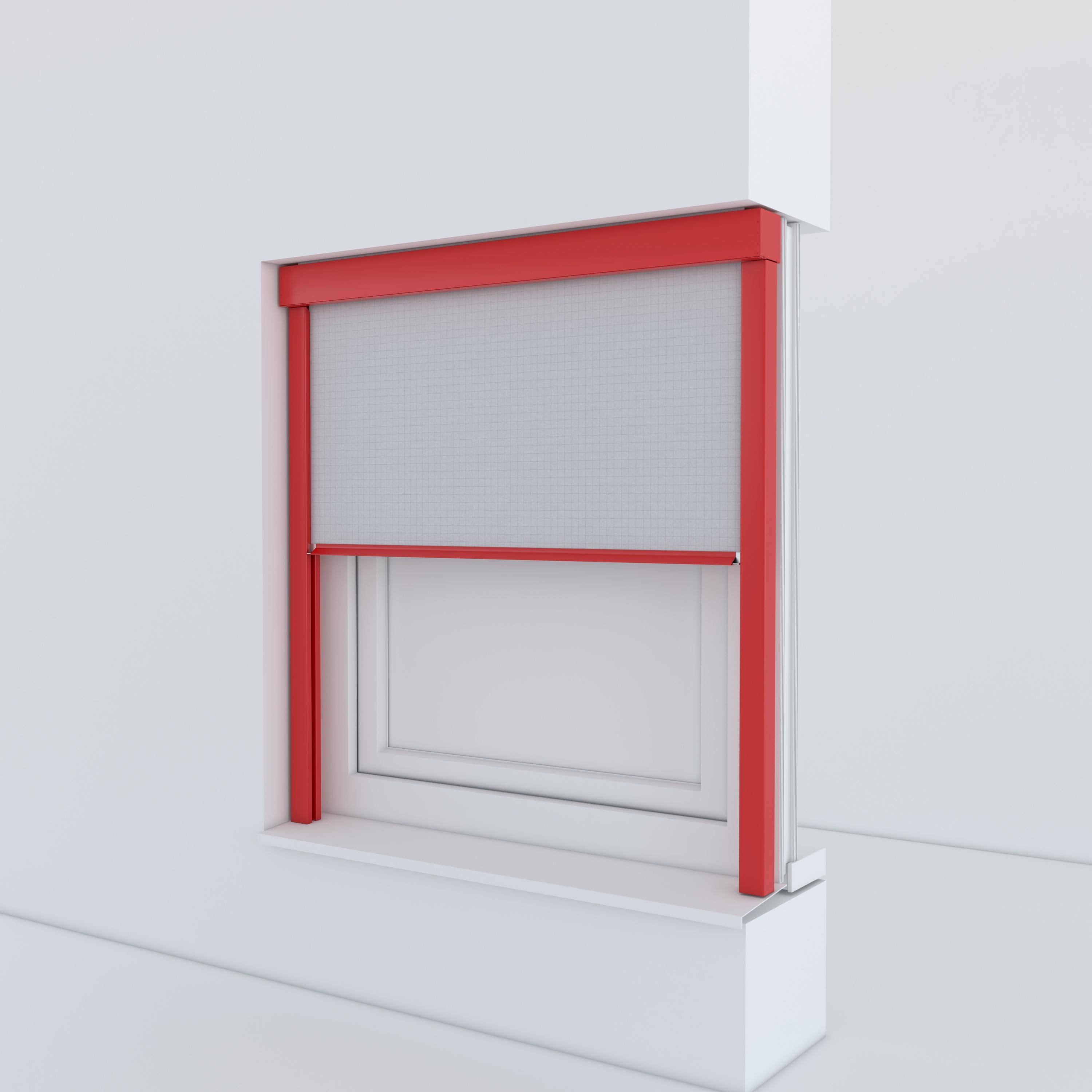

FK ROLL MINI - State when closing
FK ROLL MINI - State when closing (JPG, ~730 KB)

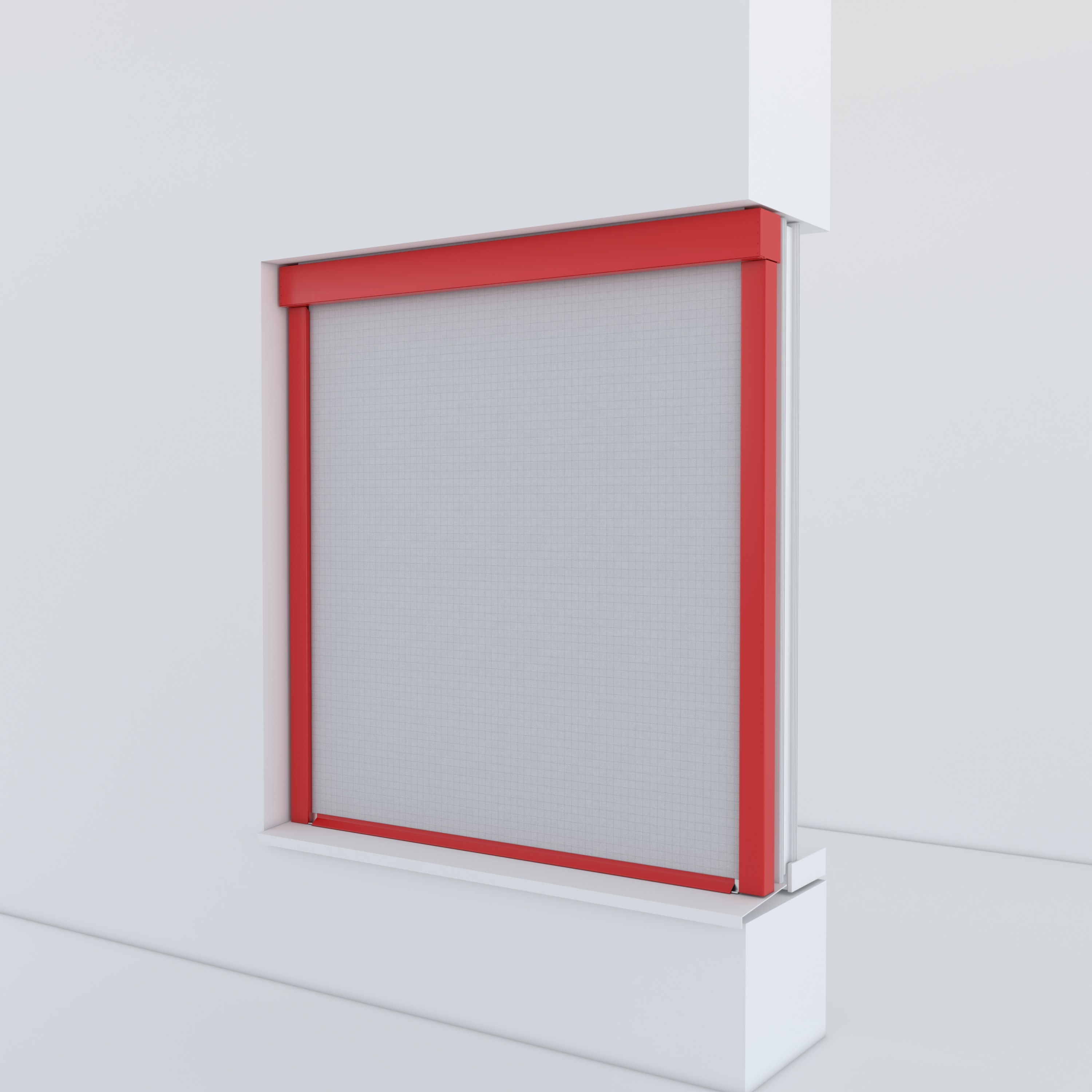

FK ROLL MINI - Closed position
FK ROLL MINI - Closed position (JPG, ~972 KB)

Downloads

Technical data

FK ROLL MINI
Fire resistance EW 15, EW 30
Fabric material Fabric made of glass and anti-corrosion fibres
Structure material Galvanised steel sheet
Fabric weight 770 g/m2 or 1660 g/m2*
Fabric colour grey-silver
Maximum width 1 800 mm
Maximum height 2 300 mm
Side guide dimensions 60 mm x 55 mm
Headbox dimensions 100x100 to 125x125 mm **
Colour of visible parts Any shade to the RAL palette
* Depending on the fire resistance.
** Depending on the overall dimensions.
