GVL 8301-K V2
VENTILATION CONTROL UNIT
A daily ventilation control panel in a compact surface-mounted enclosure: GVL 8301-K V2 is ideal for small applications such as individual rooms and conservatories.
Features
- Compact control panel for daily ventilation systems
- For controlling 24 V DC window drives
- Total drive current up to 1 A
- 1 ventilation group
- Input for an external control device, e.g. a time switch
- Ventilation safety function (saves the OPEN / CLOSED position)
- Option to connect drives with TMS function
- Optional connection to rain sensors or wind/rain sensors without an additional module.
- Plastic cover for surface mounting
Gallery

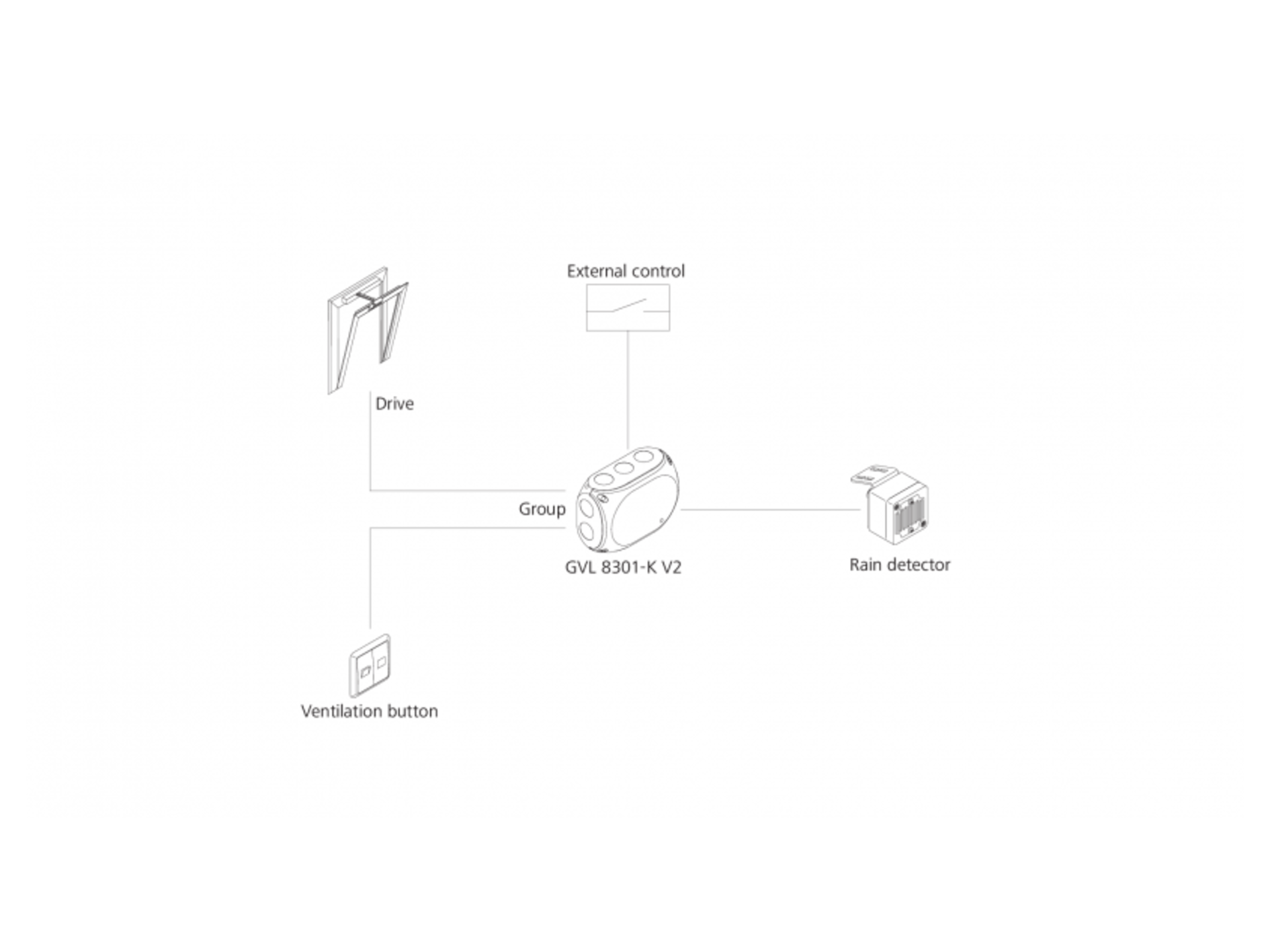

GVL 8301-K V2 - Wiring diagram (PNG, ~389 KB)
Technical data
| GVL 8301-K V2 | |
|---|---|
| Input voltage | 230 V AC |
| Input frequency | 50 Hz |
| Power | 30 VA |
| Output voltage | 24 V DC |
| Output current | 1 A |
| Number of groups | 1 |
| Operating mode SHEV / daily ventilation | short-term operation 20% duty cycle |
| Protection rating | IP 66 |
| Temperature range | -5 °C ... +40 °C |
| Material | Polypropylene |
| Colour | Light grey (~ RAL 7035) |
| W x H x D | 180 x 130 x 77 mm |
| Weight | 0.85 kg |
