  • GVL 8304-K

GVL 8304-K

VENTILATION CONTROL UNIT
Category:

Our GVL 8304-K ventilation control unit can deliver four times the output of the GVL 8301-K V2 unit.

GVL 8304-K

Features

  • Compact control panel for daily ventilation systems
  • For controlling 24 V DC window drives
  • Total drive current up to 4 A
  • 1 ventilation group
  • Input for an external control device, e.g. a time switch
  • Ventilation safety function (saves the OPEN / CLOSED position)
  • Option to connect drives with TMS function
  • Optional connection to rain sensors or wind/rain sensors without an additional module.
  • Plastic cover for surface mounting

Gallery

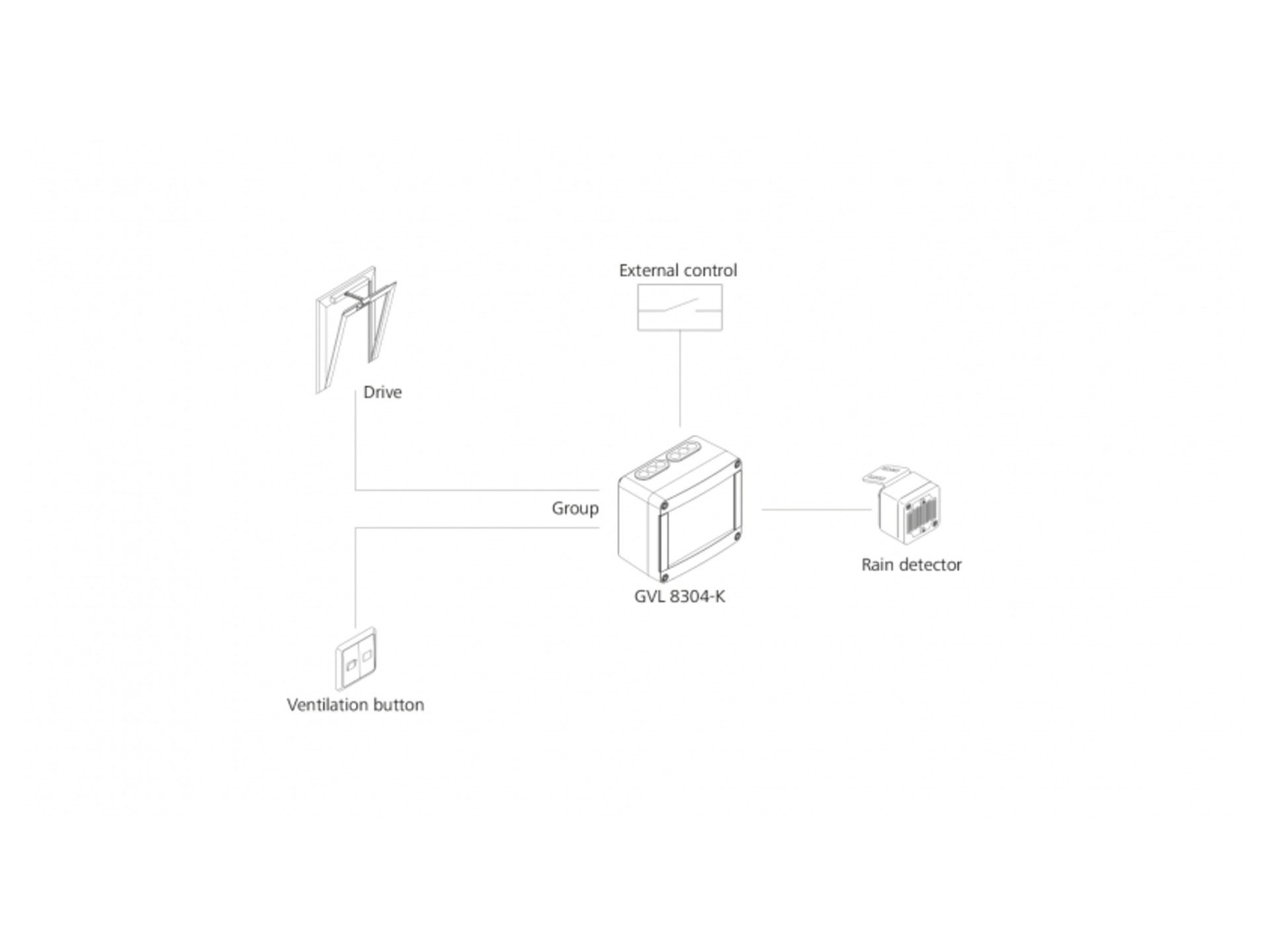

GVL 8304-K - Wiring diagram
GVL 8304-K - Wiring diagram (PNG, ~380 KB)

Downloads

Technical data

GVL 8304-K
Input voltage 230 V AC
Input frequency 50 Hz
Power 120 VA
Output voltage 24 V DC
Output current 4 A
Number of groups 1
Operating mode SHEV / daily ventilation short-term operation 20% duty cycle
Protection rating IP 50
Temperature range -5 °C ... +40 °C
Material Plastic
Colour Light grey (~ RAL 7035)
W x H x D 172 x 151 x 95 mm
Weight 2.00 kg
