KA 34

UNIVERSAL CHAIN DRIVE 24 V

Category:

Smoke ventilation

Exceptionally robust, durable and reliable: our KA 34 chain drive for smoke and heat exhaust ventilation is a timeless classic with a force of 300 N. It can be used almost anywhere thanks to various bracket solutions compatible with almost all types of windows.

Features

Can be used for smoke exhaust openings, D+H Euro SHEV to EN 12101-2, and for daily ventilation.
With microprocessor-controlled motor electronics
High-speed function (HS) for exceptionally fast window opening in the event of fire (SHEV).
Special chain stabilisation

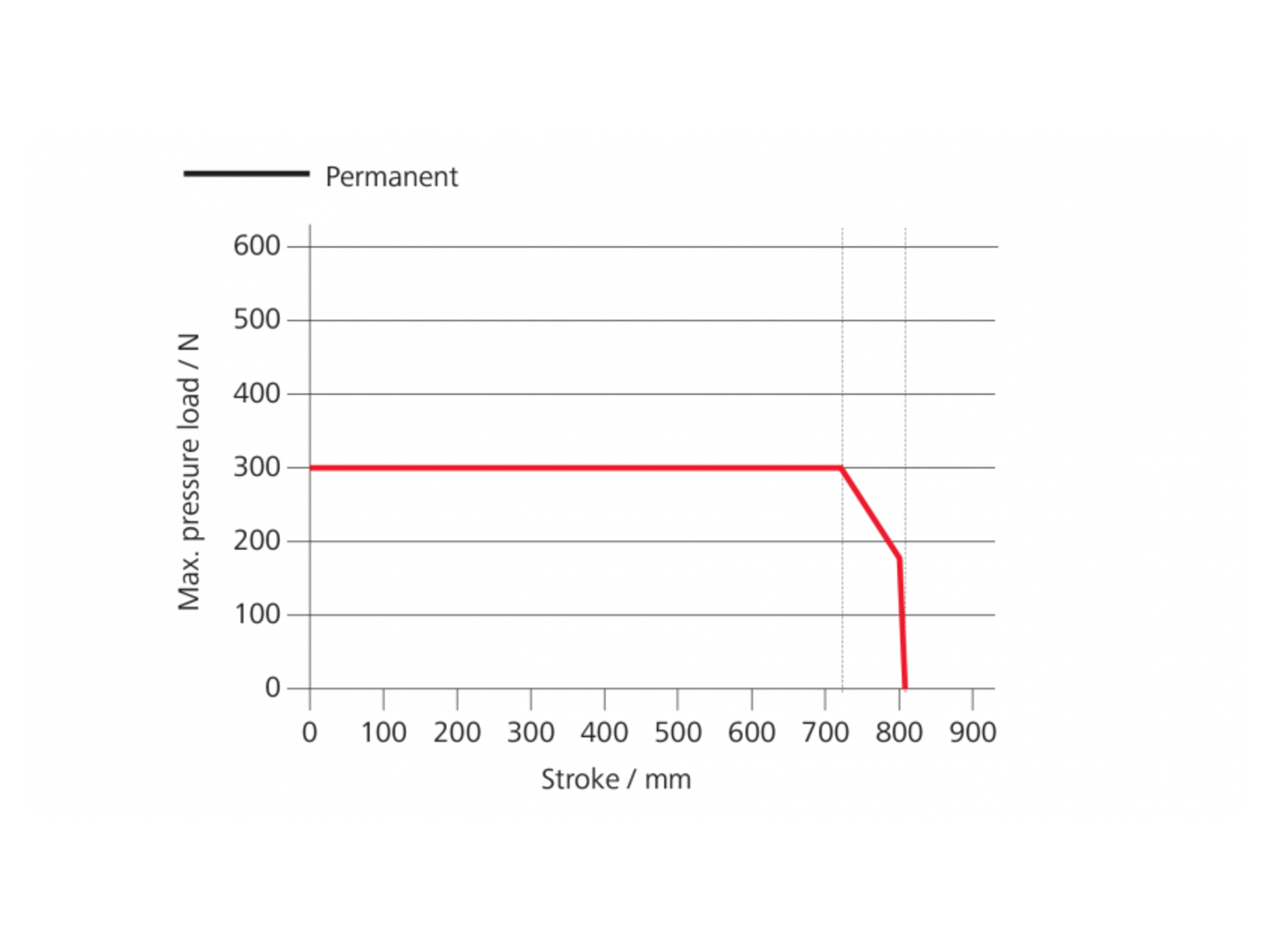

Push applications up to 700 mm, tensioning strokes >1000 mm can also be used
Pressure relief on the window seal after the closing process
Programmable drive functions and various drive parameters
Travel speed in the CLOSE direction drops to 5 mm/s (passive closing edge protection)
Timed reversing when an obstacle is detected in the CLOSE direction (active closing edge protection).

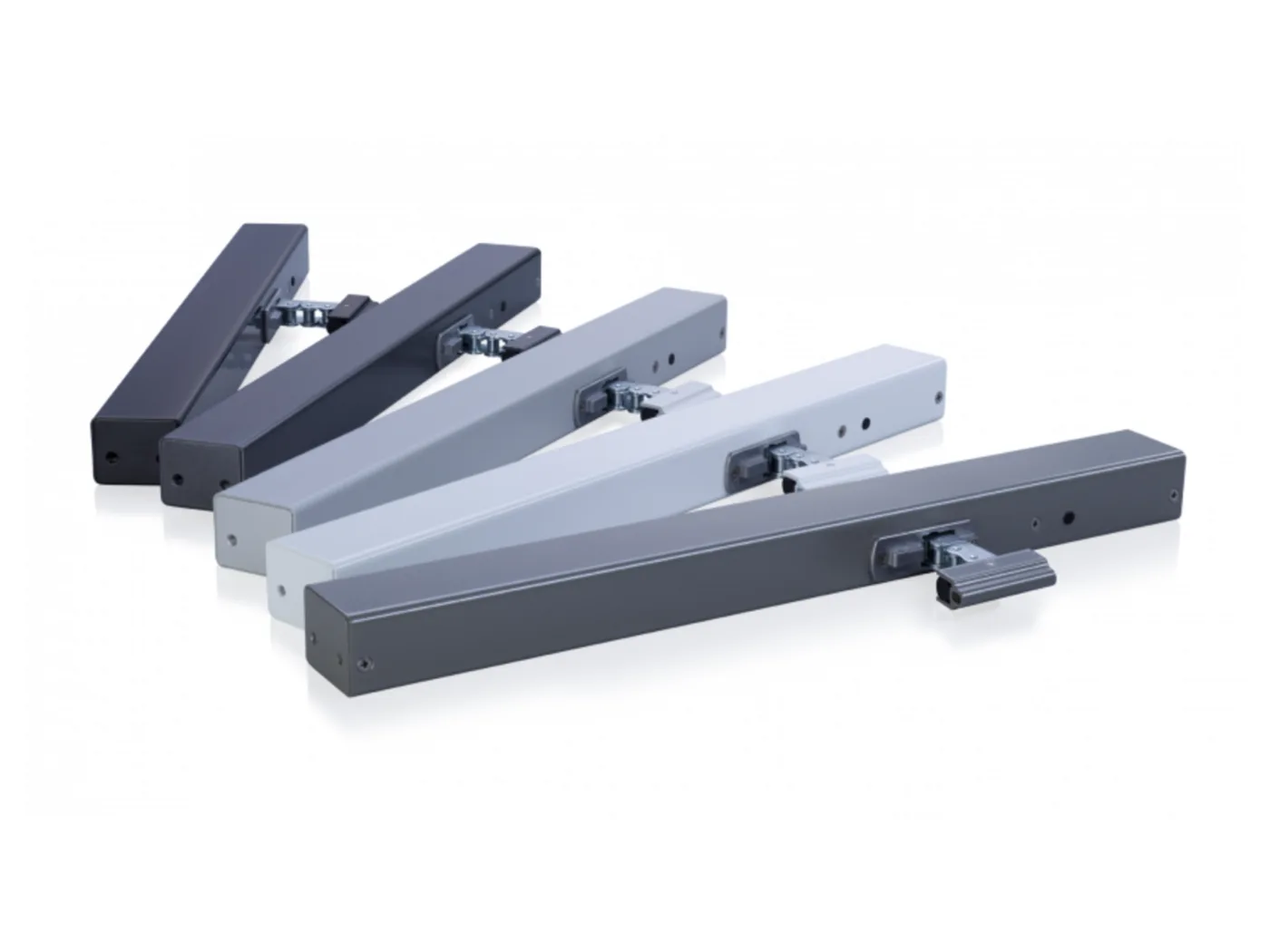

Available in any RAL shade

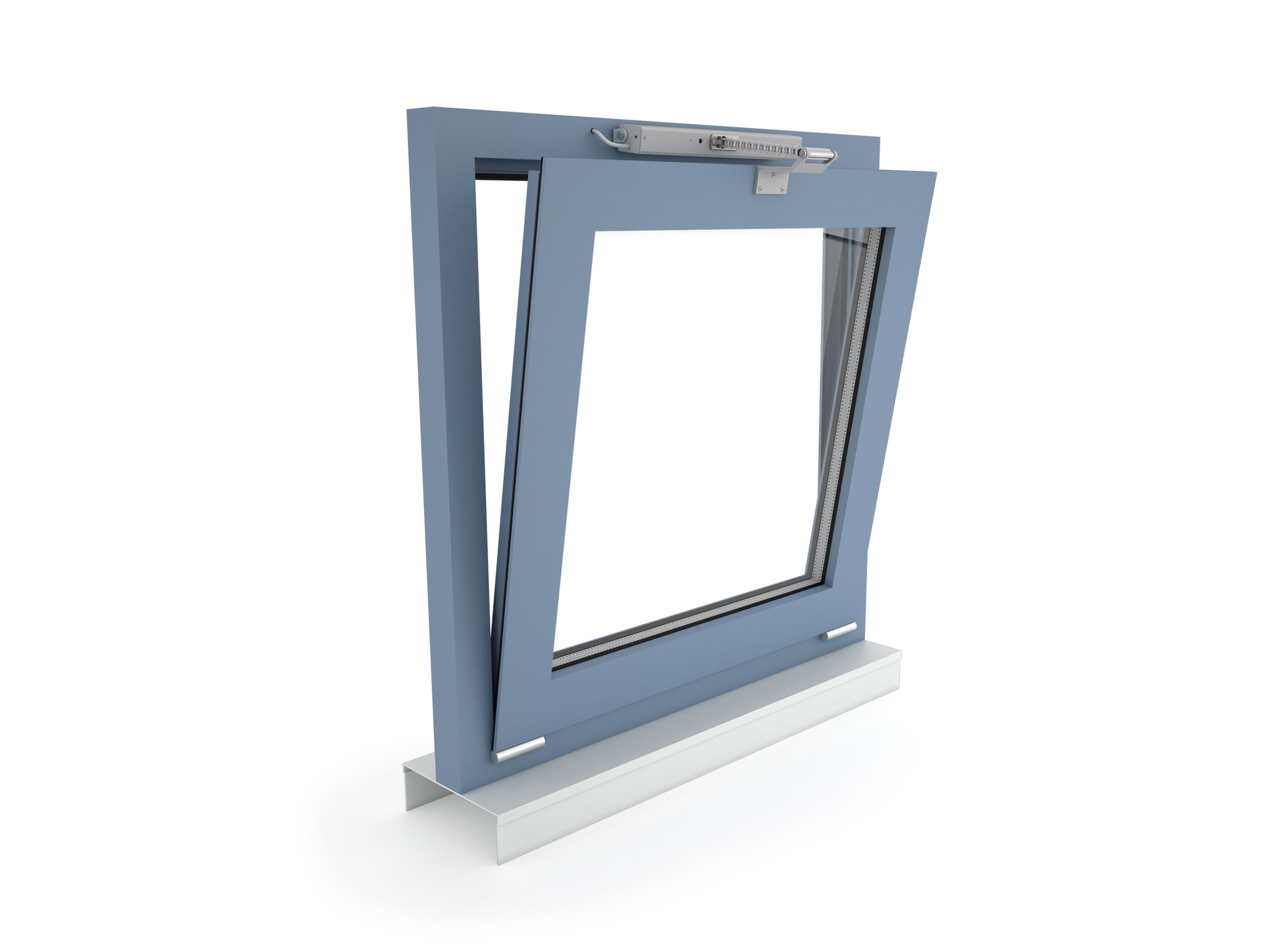

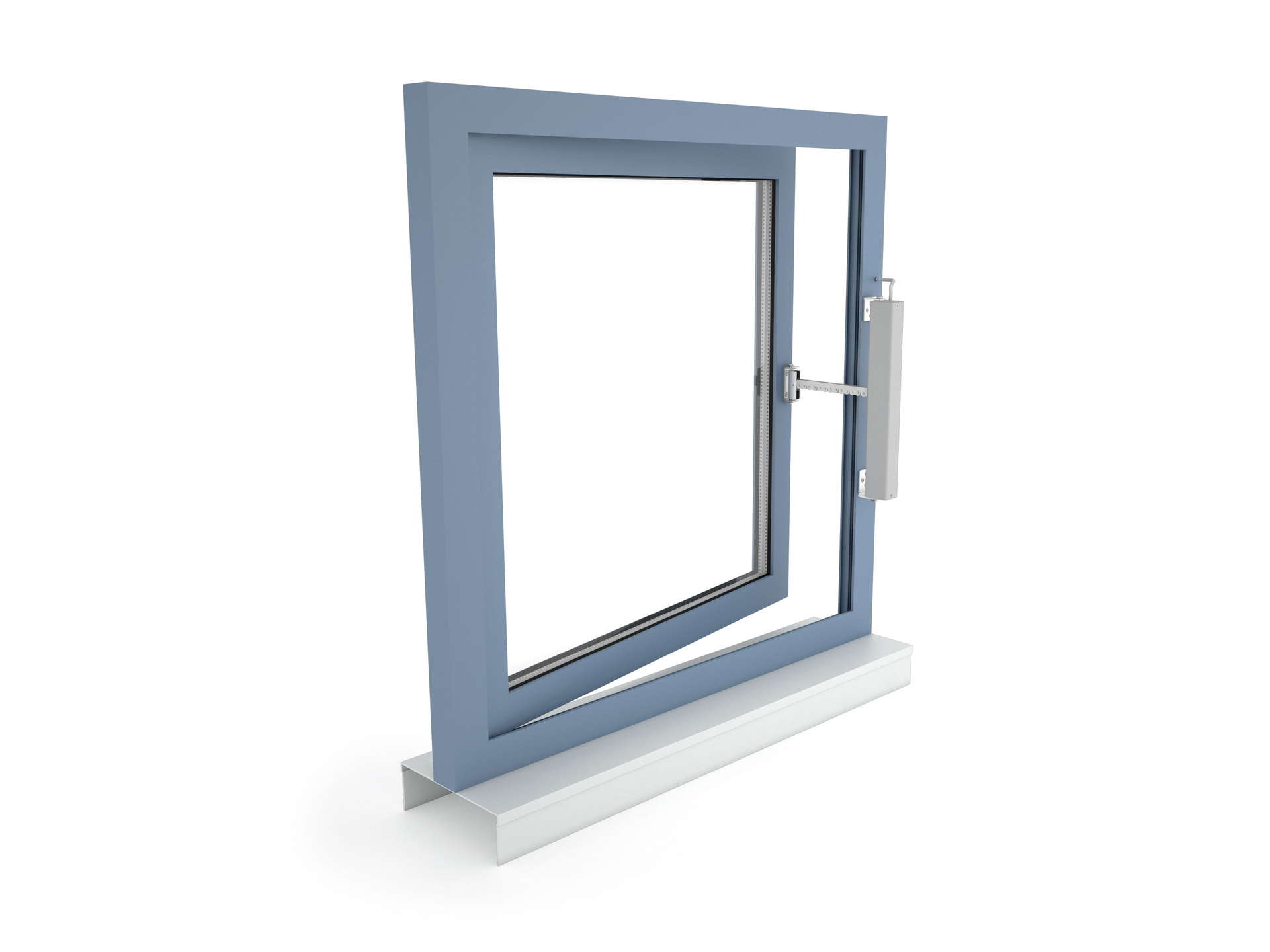

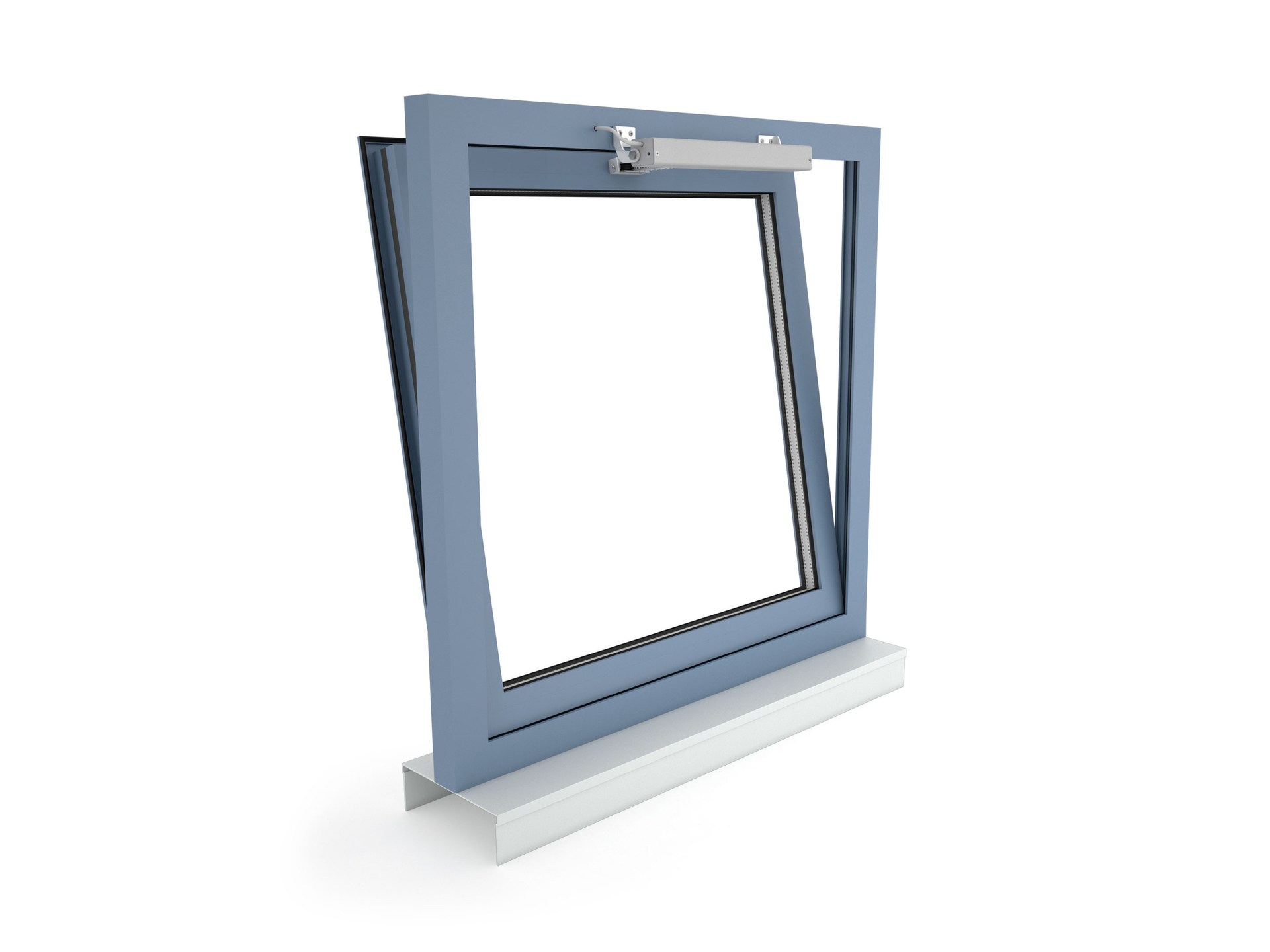

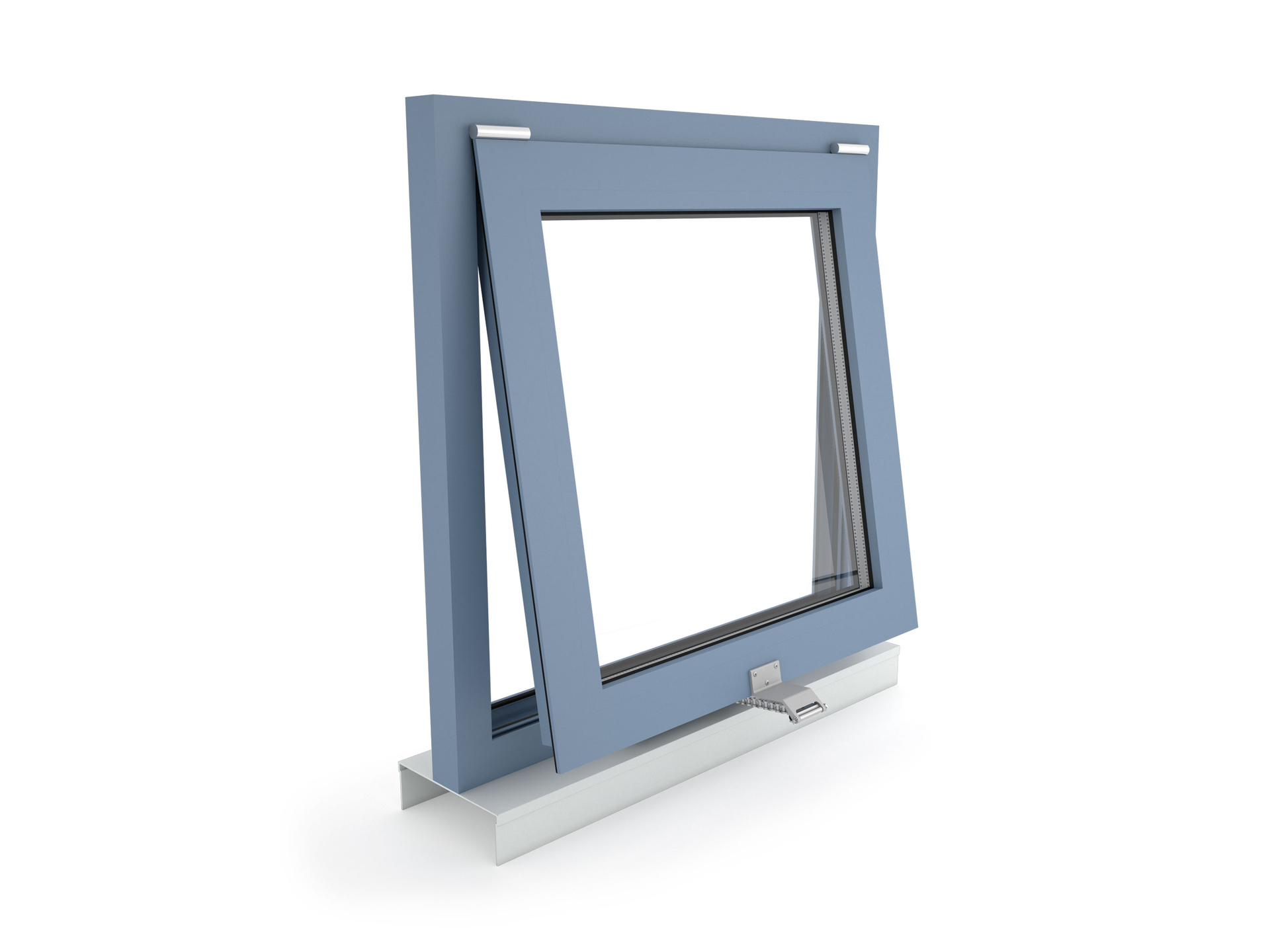

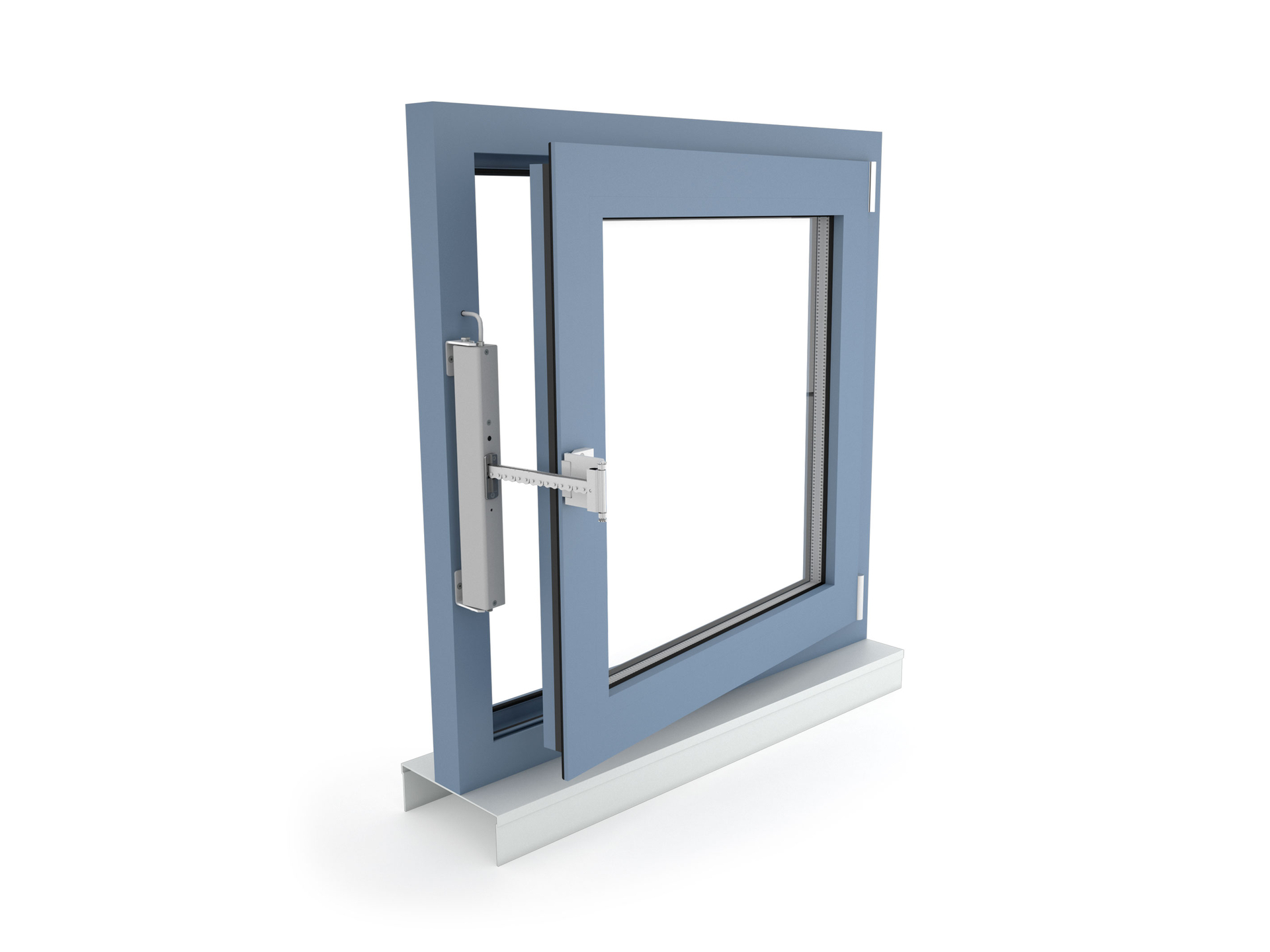

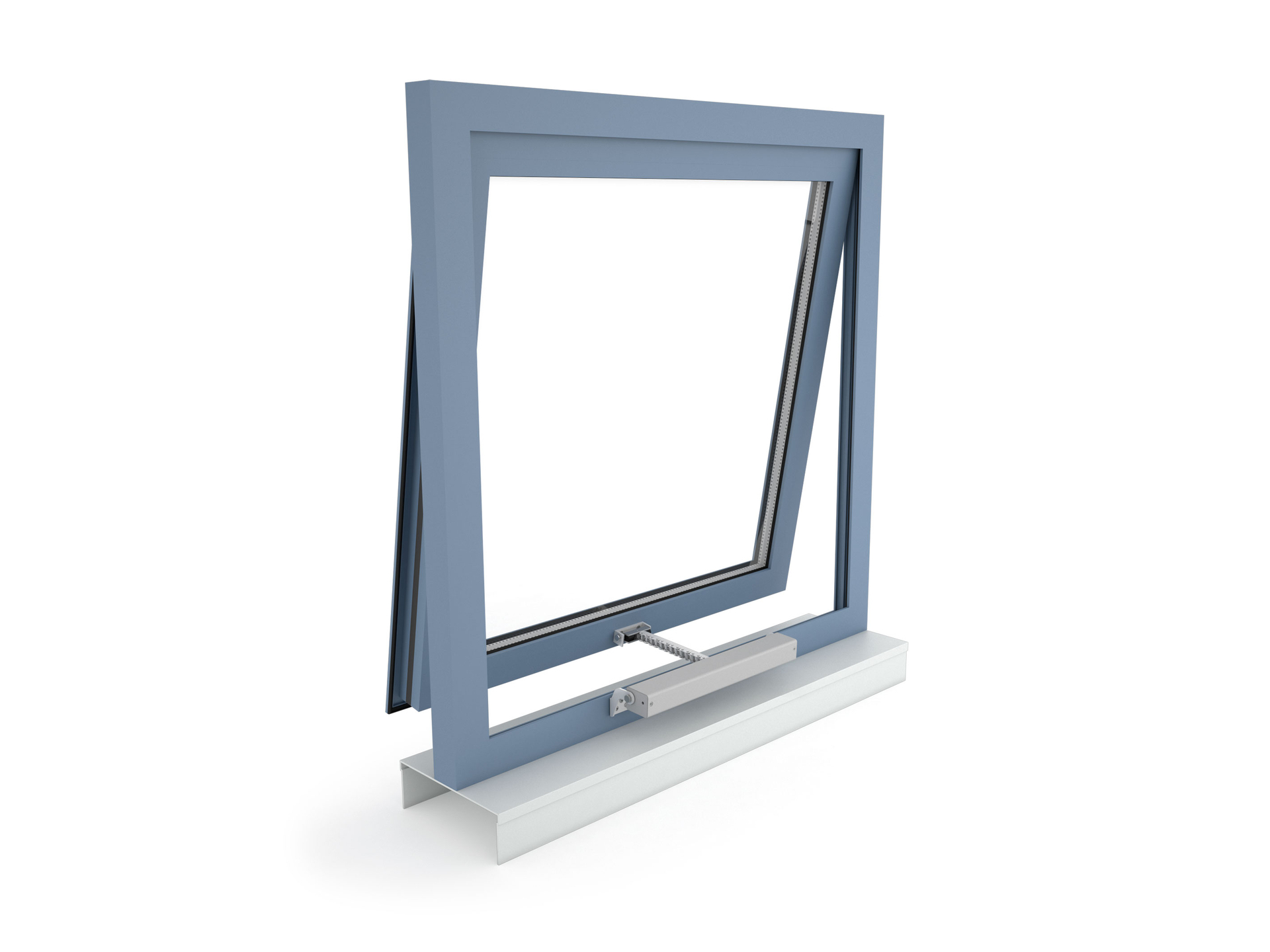

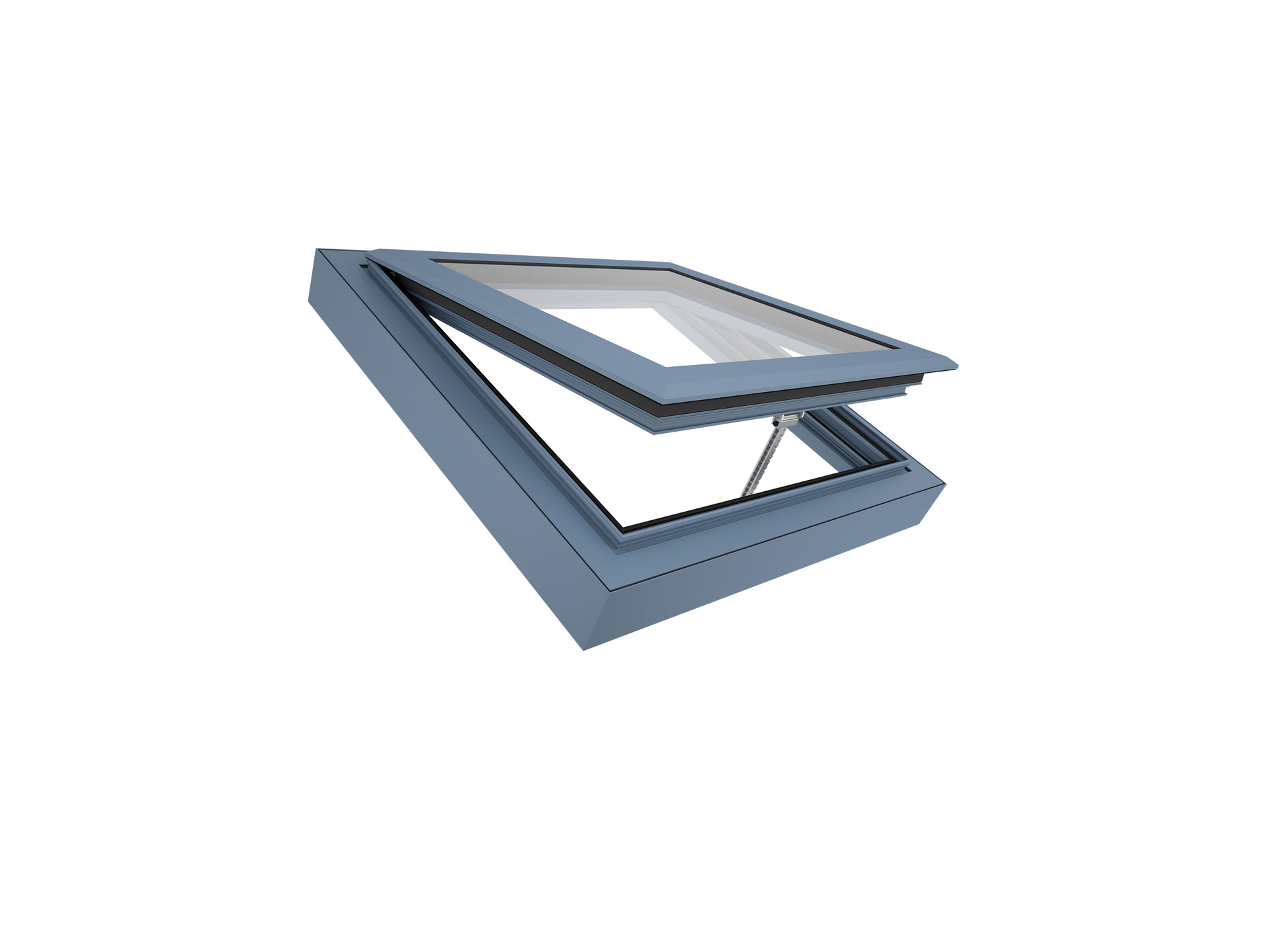

Can be used for practically all types of window openings
The drive is suitable for surface mounting on the window sash or frame
Thanks to universal brackets, the drive is compatible with almost all available types of system profiles incl. Aluprof, Colt, Gutmann, Heroal, Jet-Brakel, Raico, Reynaers, Sapa, Schüco, Skandinaviska, Technal, Wicona

Gallery

Downloads

Technical data

	KA 34
Power supply	24 V DC / ±15 %
Duty cycle	30 % (ON: 3 min. / OFF: 7 min.)
Rated input current	1 A
Push force	300 N
Pull force	300 N
Nominal locking force **	Max. 2 600 N (2 000 N ***)
Service life	20 000 double strokes *
Stroke	350 - 1 300 mm
Opening speed (daily ventilation)	11.8 mm/s
Opening speed (SHEV)	12.2 mm/s
Closing speed	11.8 mm/s
Protection rating	IP 32
Emission sound pressure level	LpA ≤ 70 dB(A)
Temperature range	-15 °C (-5 °C ***) ... +75 °C
Fire resistance	B300 (30 min / 300 °C)
Material	aluminium
Surface finish	powder coating
Colour	white aluminium (~ RAL 9006)
Connection	2.5 m silicone cable

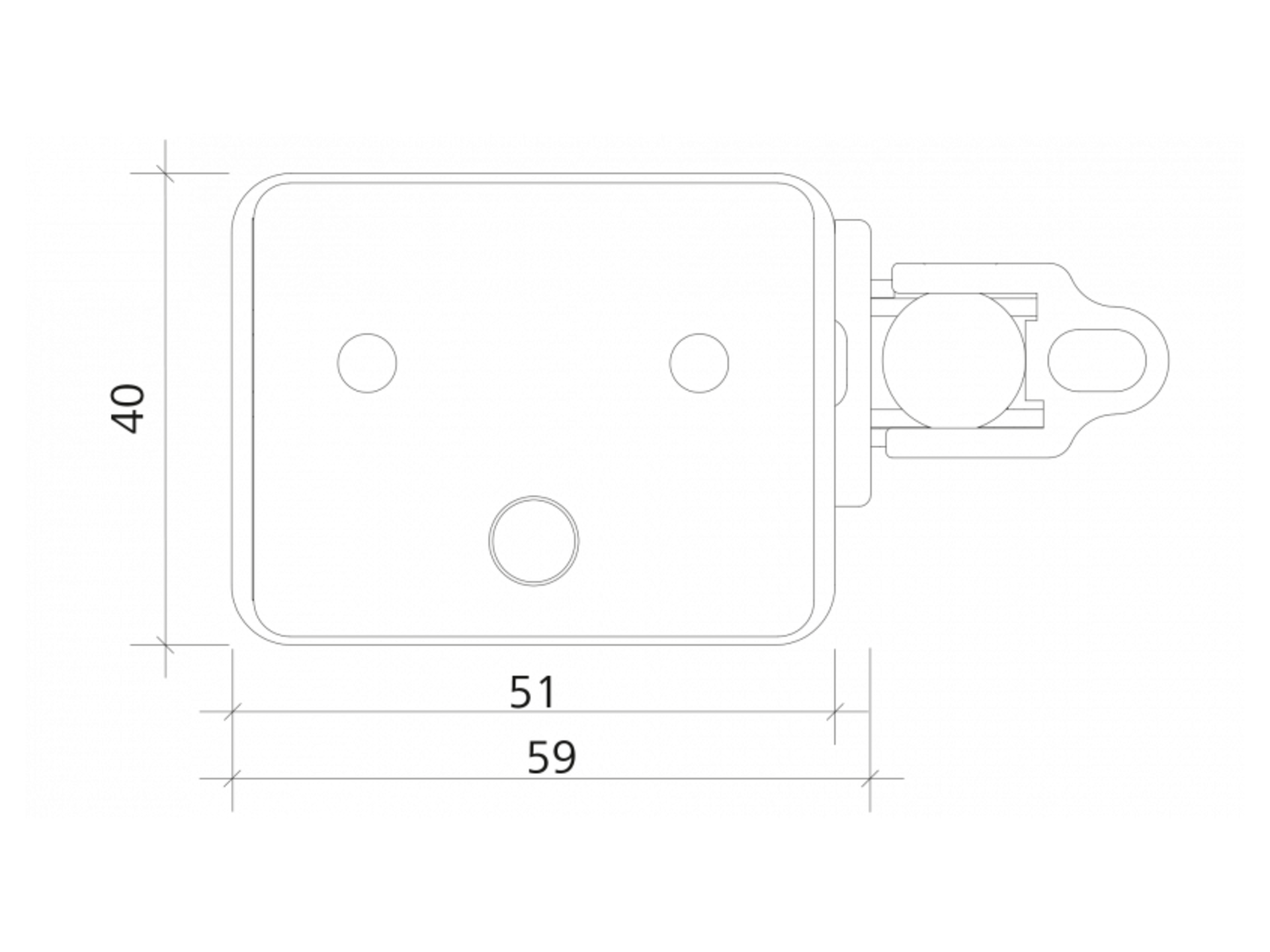

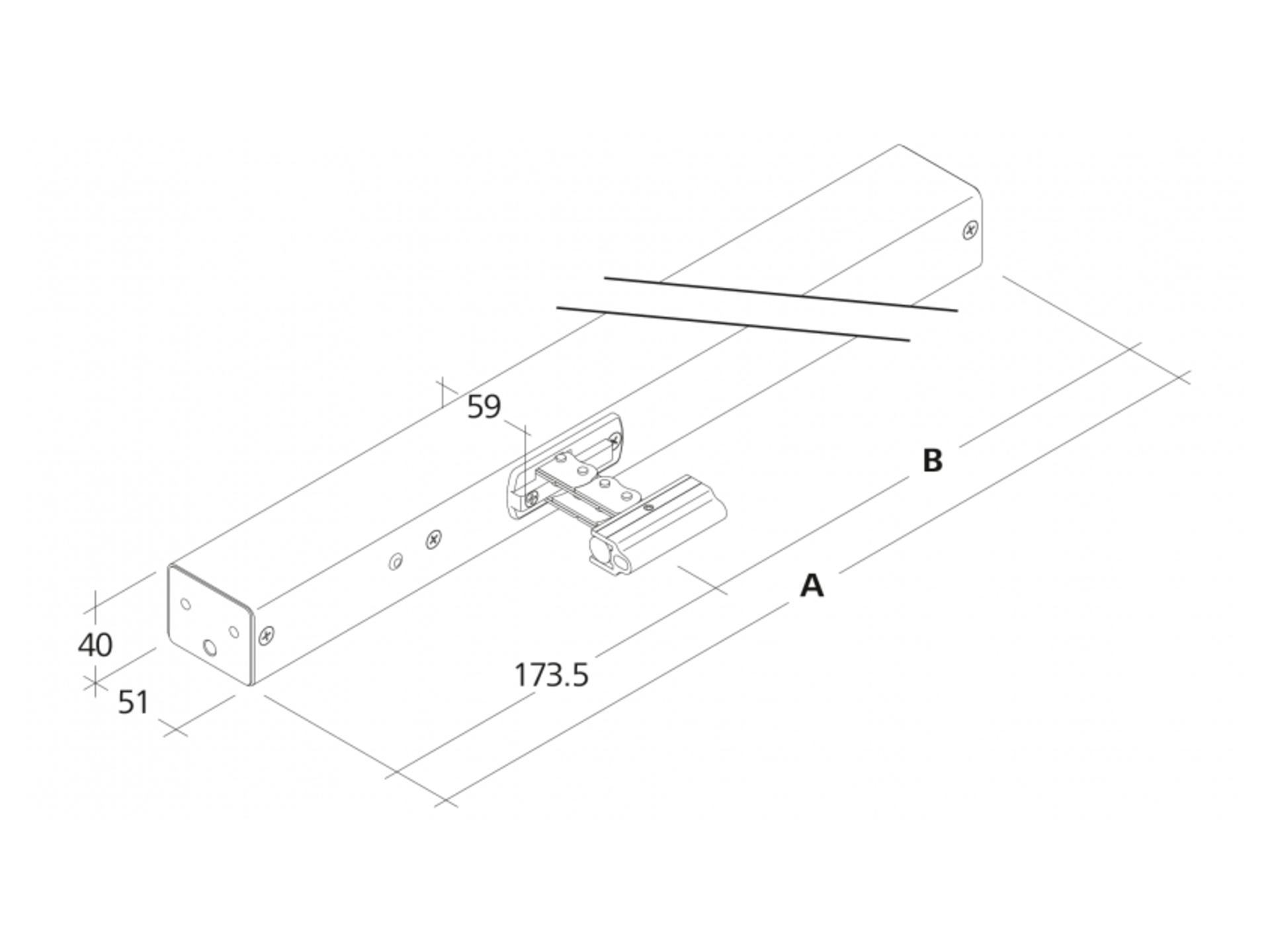

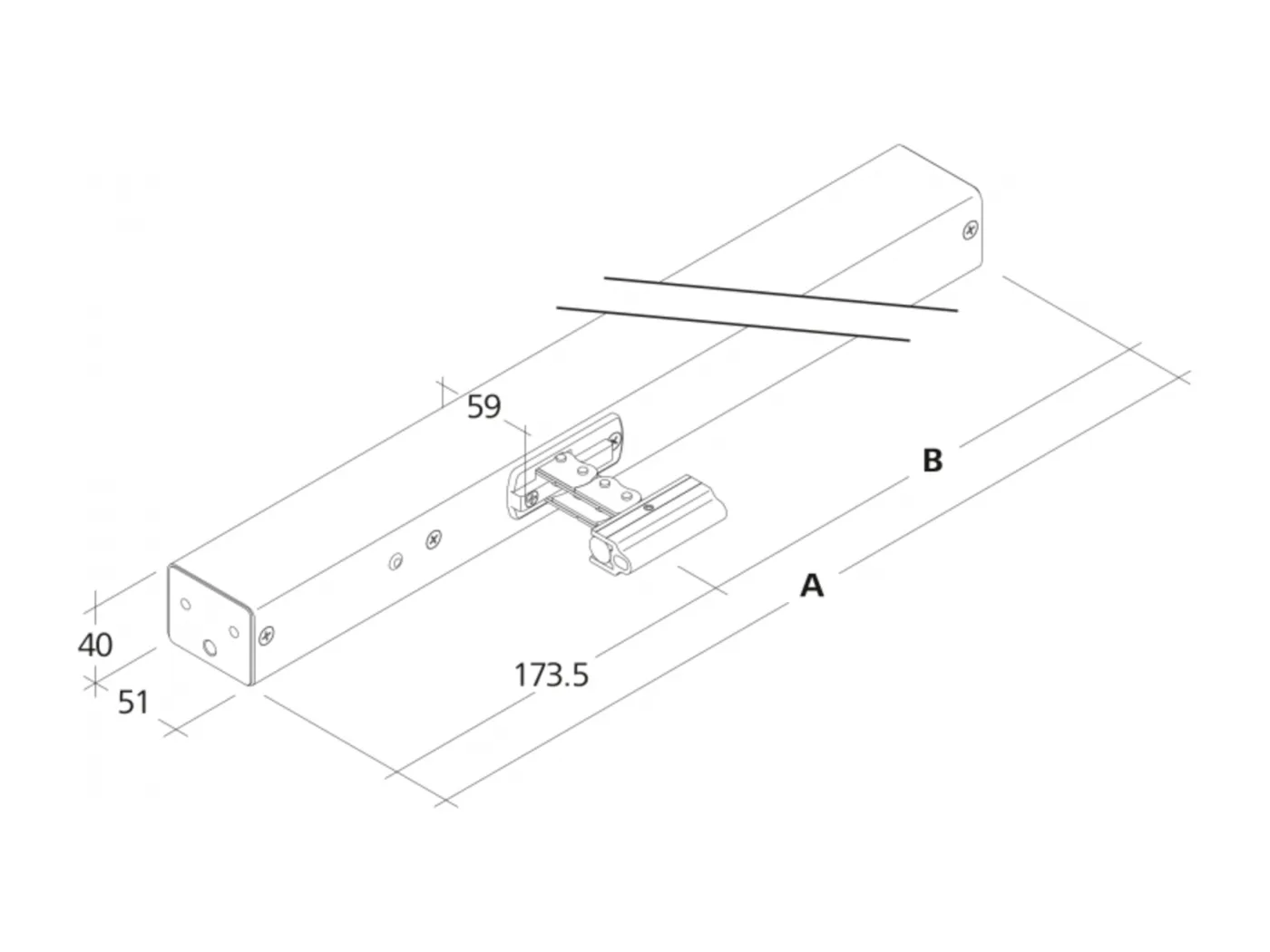

W x H x D	421 - 902**** x 40 x 59 mm
Weight	1.60 - 3.60 kg****

* For vertical use, consult a specialist from our company.
** Depending on the anchoring method.
*** In accordance with VdS 2580.
**** Depending on the stroke length.

Optional extras

Function programming
The option of configuring drive parameters (e.g. the stroke) individually using software and the related service tools, for drives fitted with PLP, BSY or BSY+ electronics.
BRV signal
Confirmation from the drive, via the control cable, that the drive has fully extended or retracted. When used with the AT 41 and ERM 44 modules, this signal is sent to the central building management system, to the modules themselves or to the locking drive. The BRV signal is not potential-free.
SGI signal (position reporting)
In combination with the D+H servo plug-in unit SE 622 or the BSY gateway BSY-GW-024-010-U, drives can be controlled with precise positioning.
Acoustic signal (corresponding to the protection class)
AS2 corresponds to “protection class 2” of the ZVEI risk assessment by means of an acoustic warning signal in the “CLOSED” running direction. AS3 corresponds to “protection class 3” of the ZVEI risk assessment: in addition to AS2, it stops the drive for 11 s with a remaining stroke of 28 mm.
SBU (bendable chain)
The drive chain with a rigid back bends in the direction of the hinges. The drive is fixed in place (it does not pivot).
SBD (bendable chain)
The drive chain with a rigid back bends in the direction of the hinges. The drive is fixed in place (it does not pivot).

Certificates and approvals

EN 12101-2
VdS Schadenverhütung
Dekra
