KA 34-BSY+ Set

SET OF UNIVERSAL 24 V CHAIN DRIVES INCL. SYNCHRONISATION

Category:

Smoke ventilation

A chain drive set for precise synchronous operation of two drives on a single window element: our KA 34-BSY+ set is exceptionally quiet in ventilation mode and, in the event of fire, opens the window within 60 seconds thanks to the high-speed drive function.

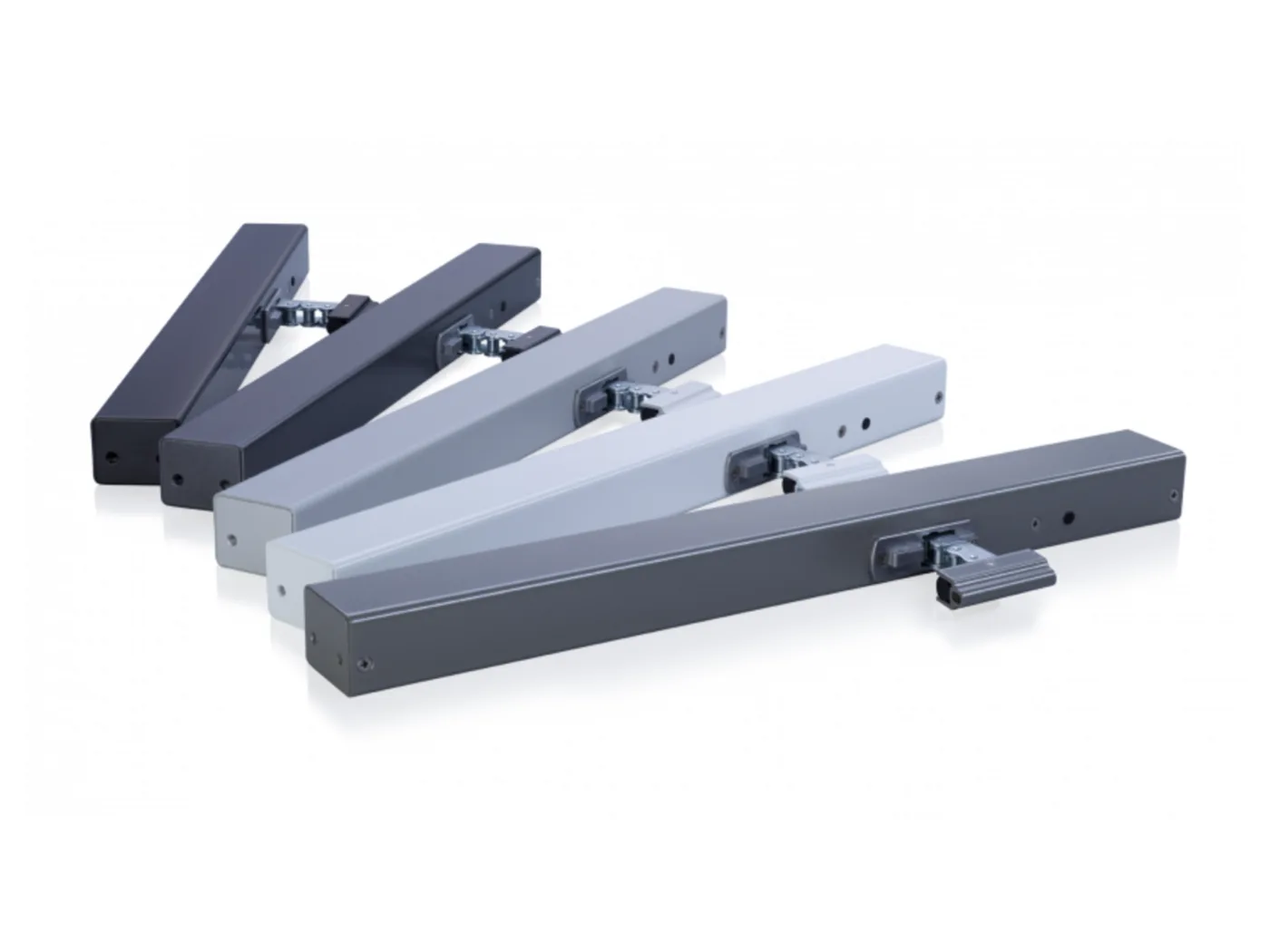

KA 34-BSY+ Set - Various colour finishes

Features

Can be used for smoke exhaust openings, D+H Euro SHEV to EN 12101-2, and for daily ventilation.
With an integrated BSY+ motor and microprocessor-controlled synchronised electronics.
High-speed function (HS) for exceptionally fast window opening in the event of fire (SHEV).
Up to 8 drives possible in one synchronous group
Power supply and signals on the KA 34-BSY+ can be looped in series for up to 3 drives
Special chain stabilisation
Pressure relief on the window seal after the closing process
Programmable drive functions and various drive parameters
Travel speed in the CLOSE direction drops to 5 mm/s (passive closing edge protection)
Timed reversing when an obstacle is detected in the CLOSE direction (active closing edge protection)
Available in any RAL shade

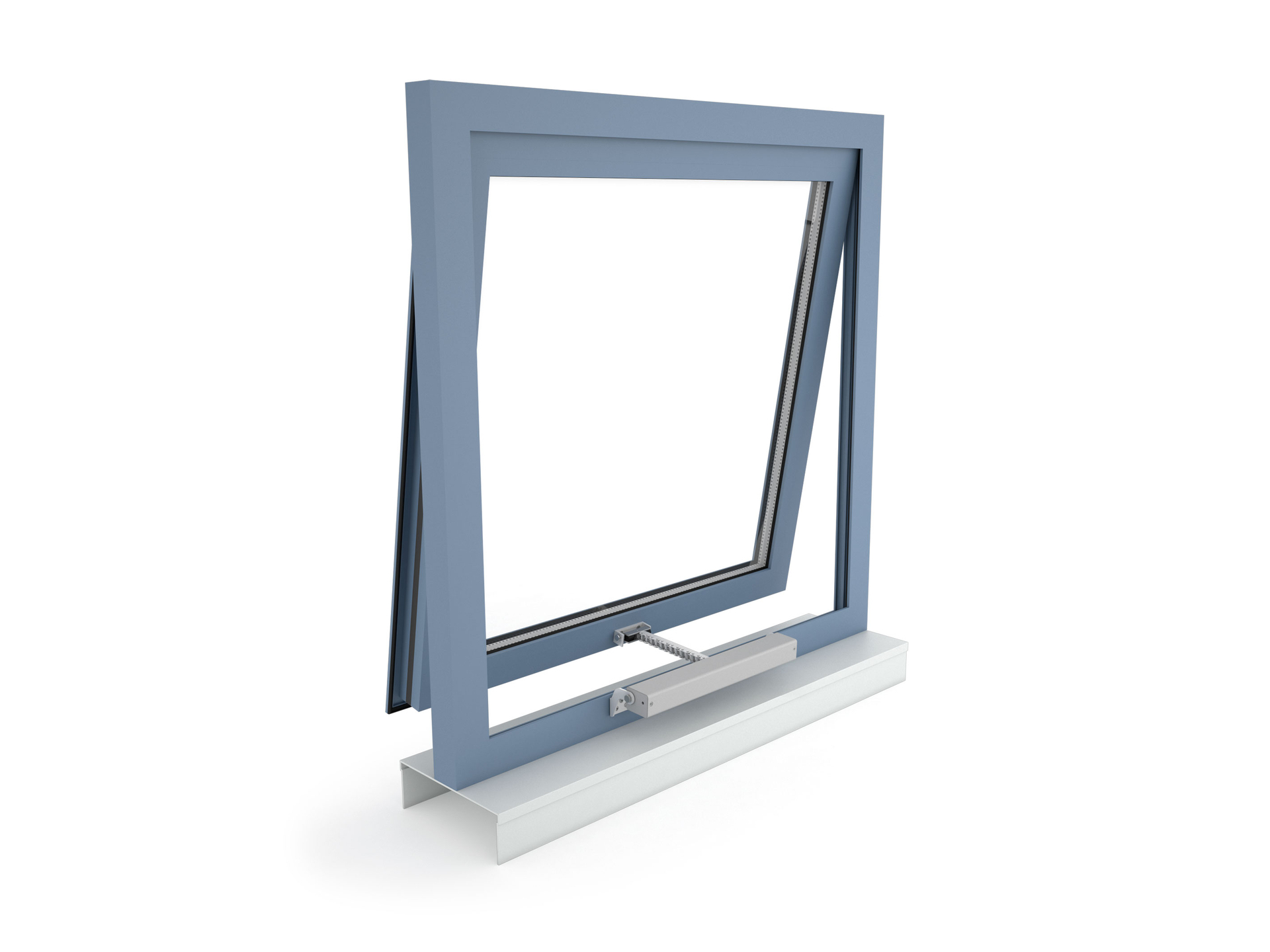

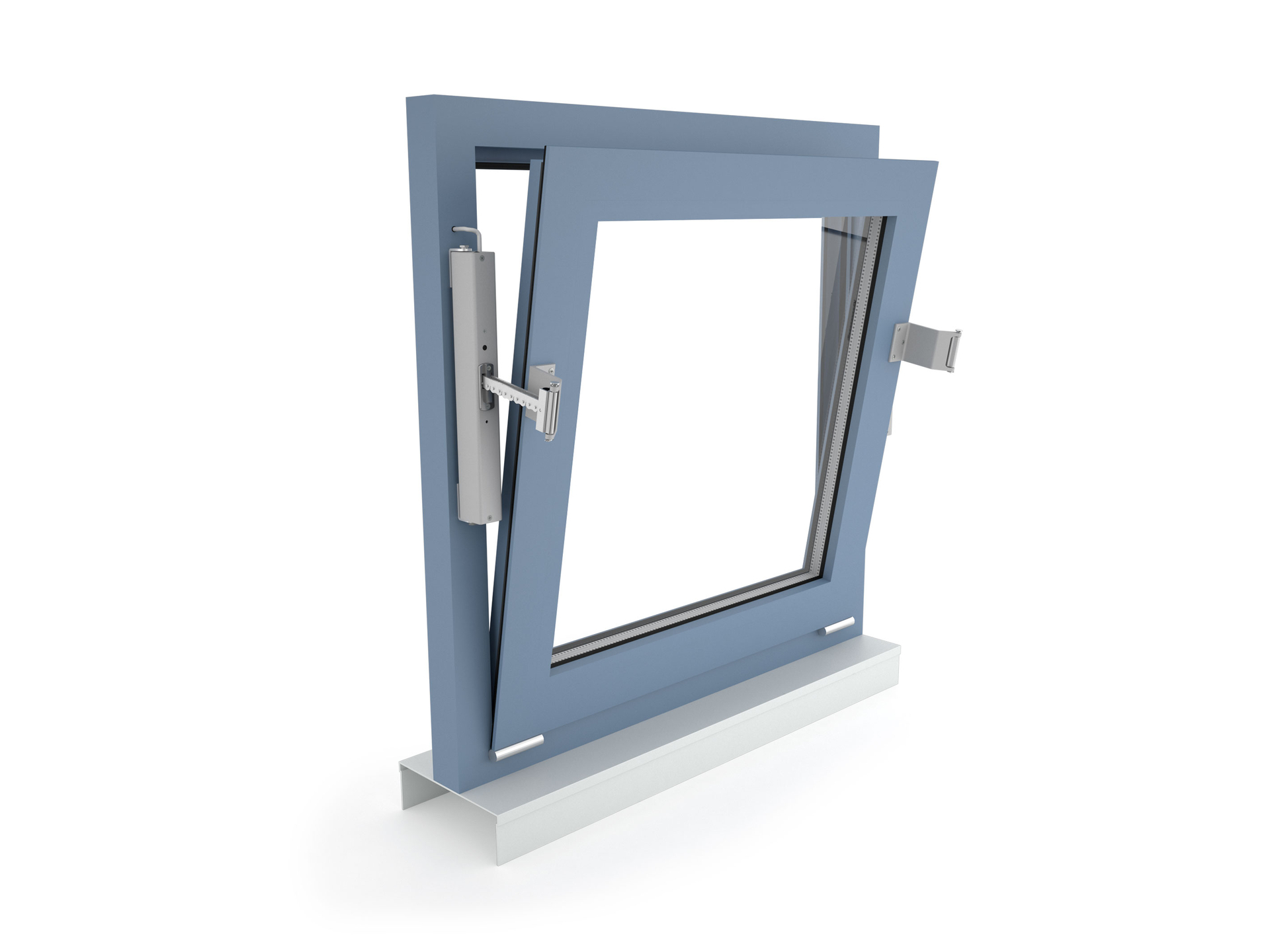

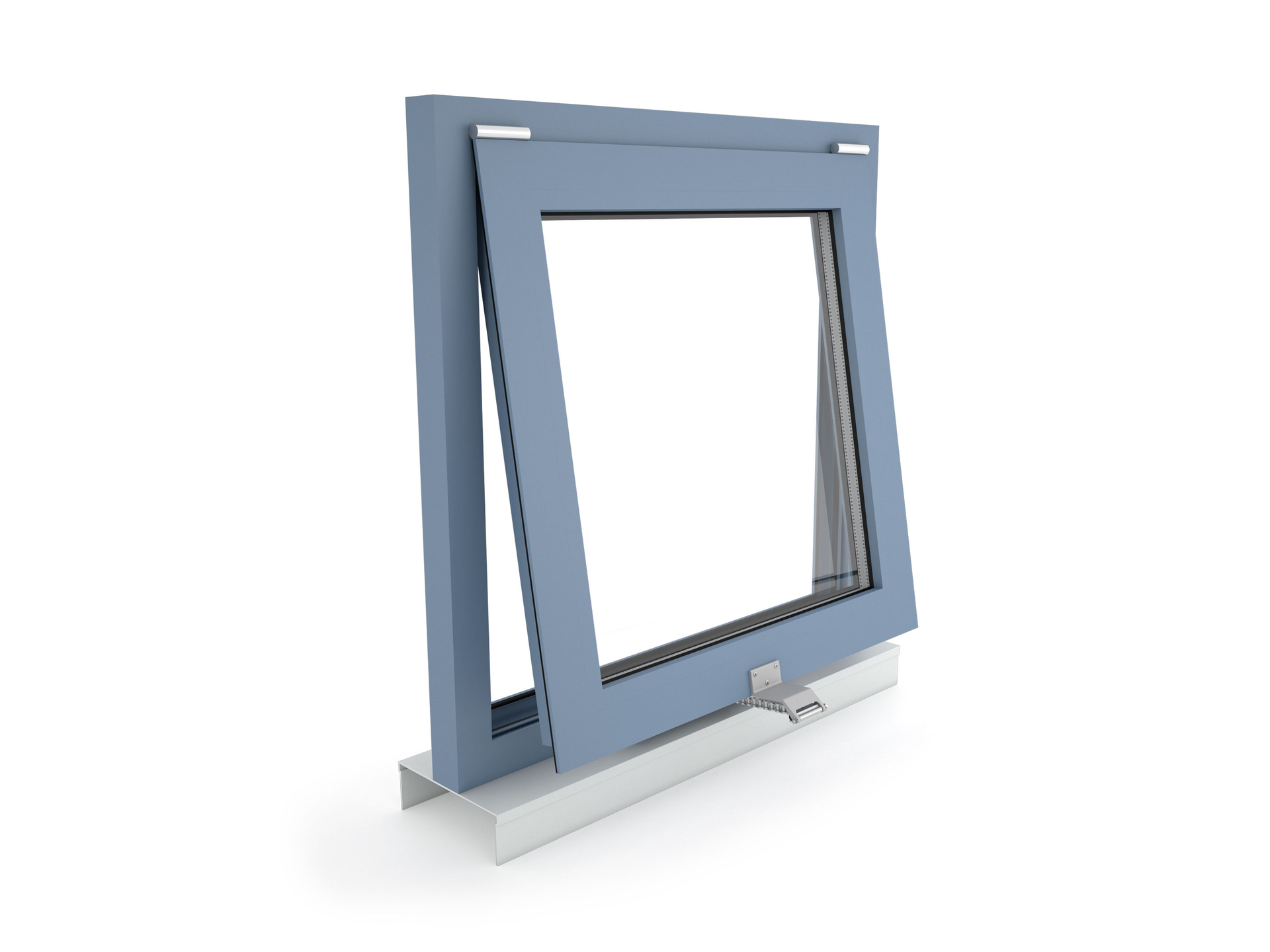

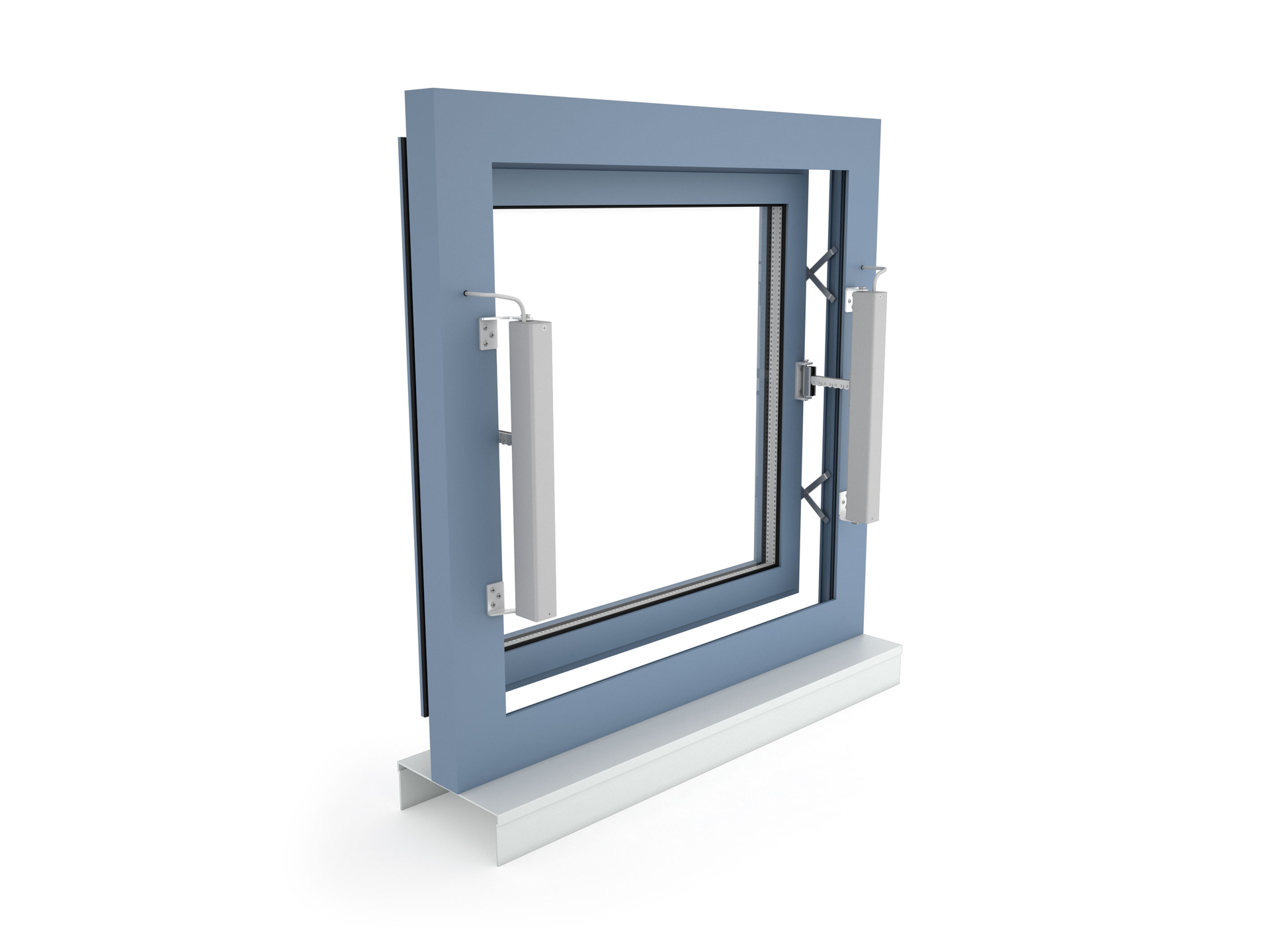

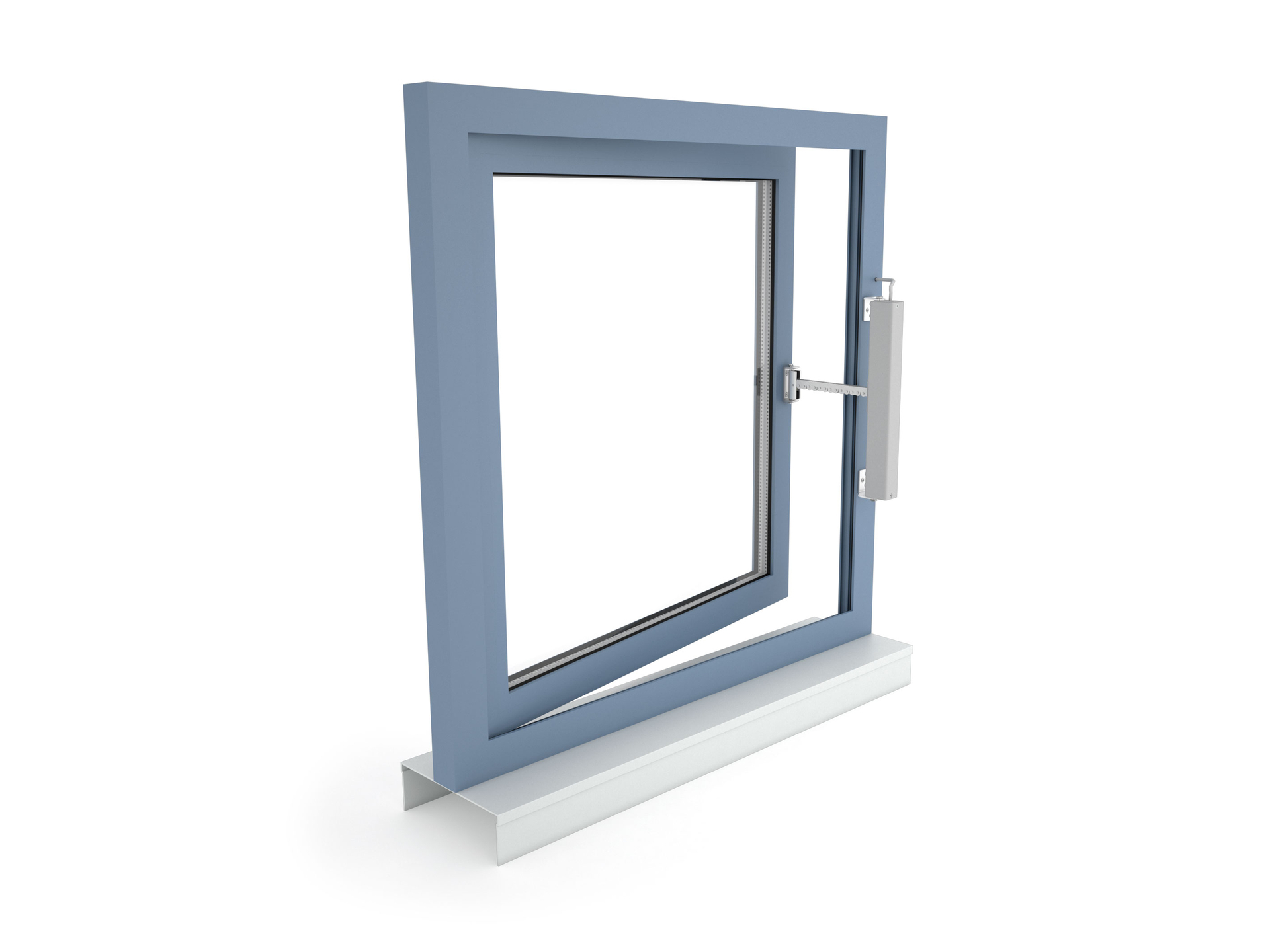

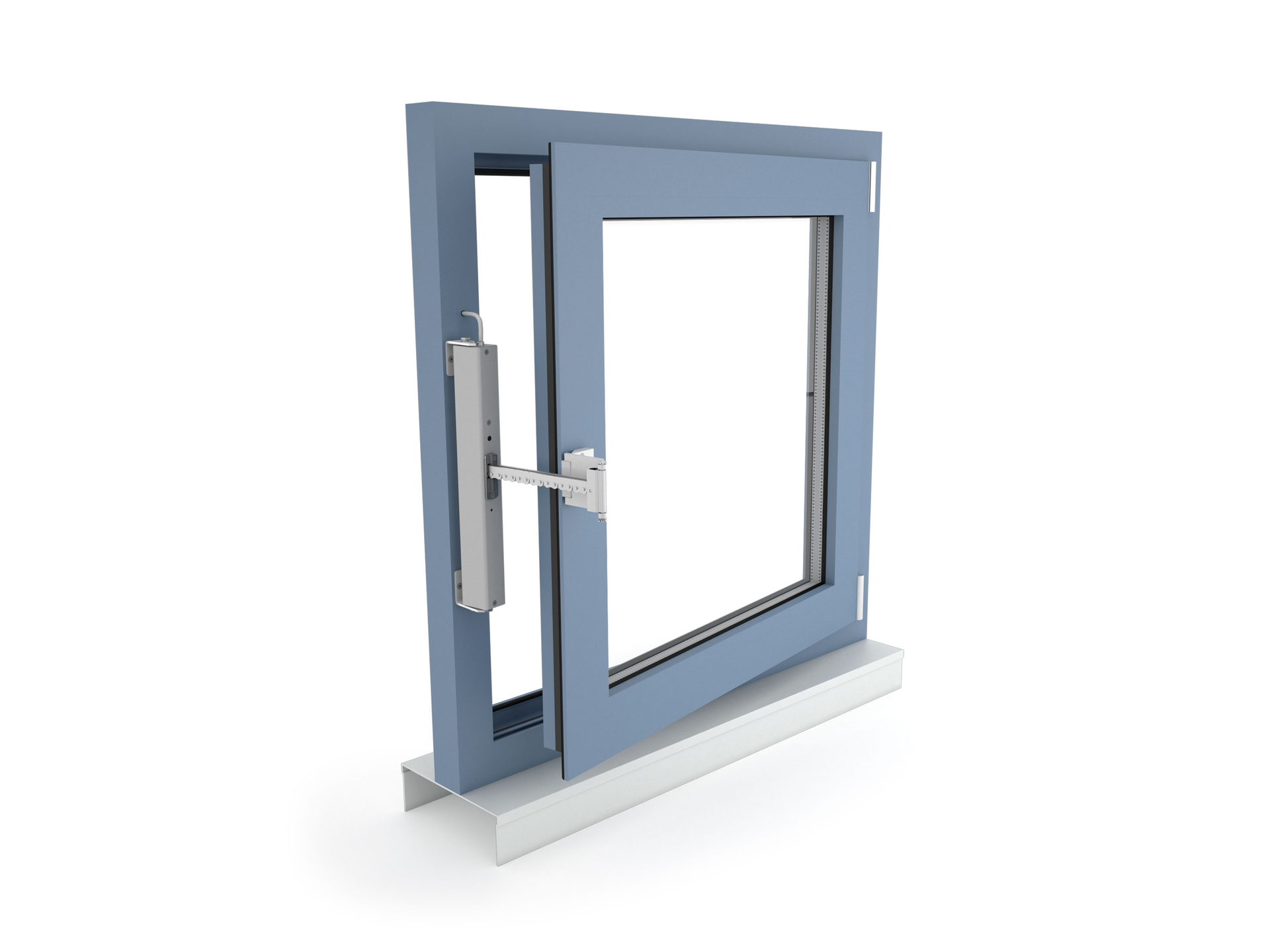

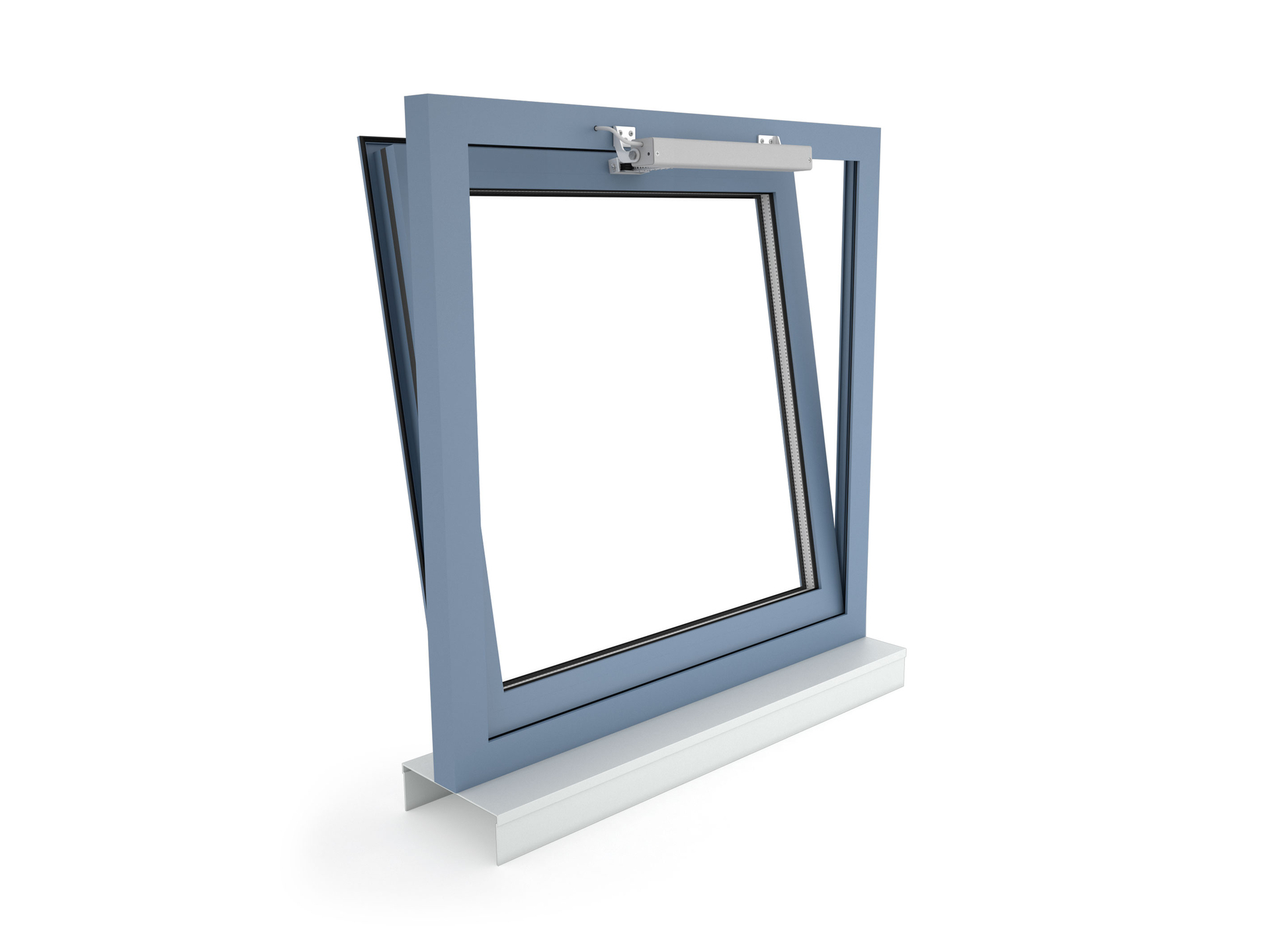

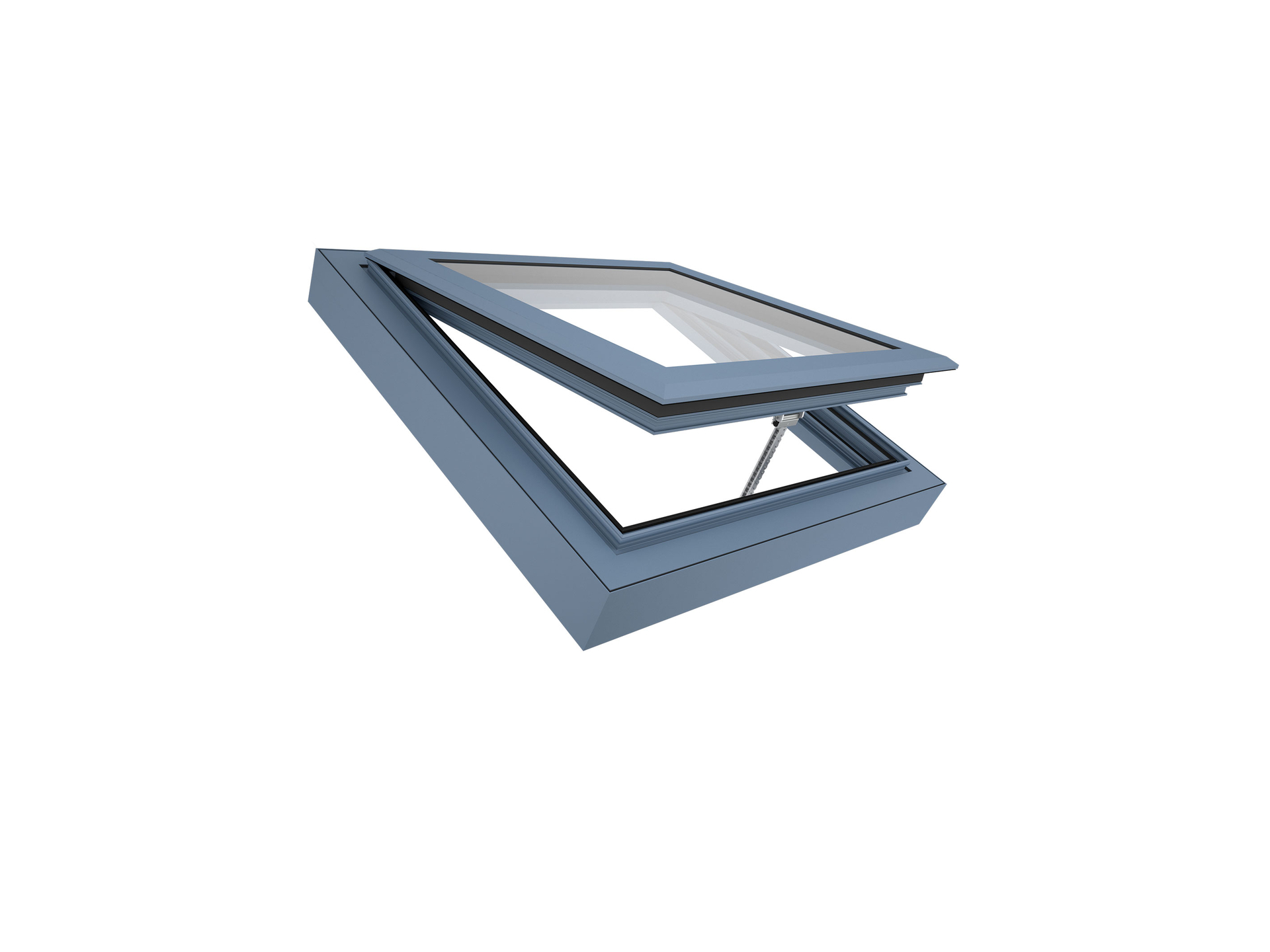

Can be used for practically all types of window openings
The drive is suitable for surface mounting on the window sash or frame
Thanks to universal brackets, the drive is compatible with almost all available types of system profiles incl. Aluprof, Colt, Gutmann, Heroal, Jet-Brakel, Raico, Reynaers, Sapa, Schüco, Skandinaviska, Technal, Wicona

Gallery

Downloads

Technical data

	KA 34-BSY+
Power supply	24 V DC / ±15 %
Duty cycle	30 % (ON: 3 min. / OFF: 7 min.)
Rated input current	1 A

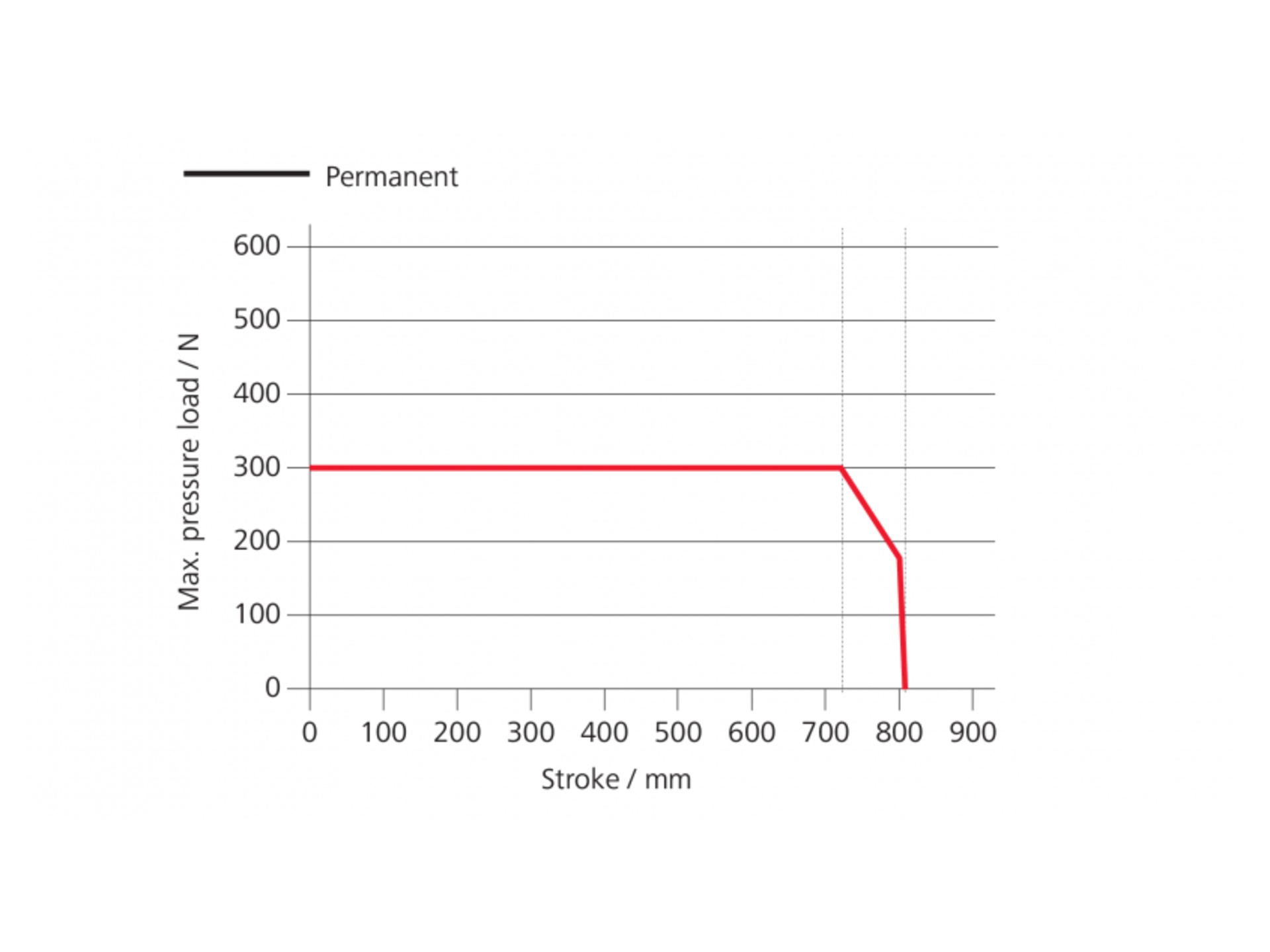

Push force	300 N
Pull force	300 N
Nominal locking force **	Max. 2 600 N (2 000 N ***)
Service life	20 000 double strokes *
Stroke	350 - 1 300 mm
Opening speed (daily ventilation)	11.8 mm/s
Opening speed (SHEV)	12.2 mm/s
Closing speed	11.8 mm/s
Protection rating	IP 32
Emission sound pressure level	LpA ≤ 70 dB(A)
Temperature range	-15 °C (-5 °C ***) ... +75 °C
Fire resistance	B300 (30 min / 300 °C)
Material	aluminium
Surface finish	powder coating
Colour	white aluminium (~ RAL 9006)
Connection	2.5 m silicone cable

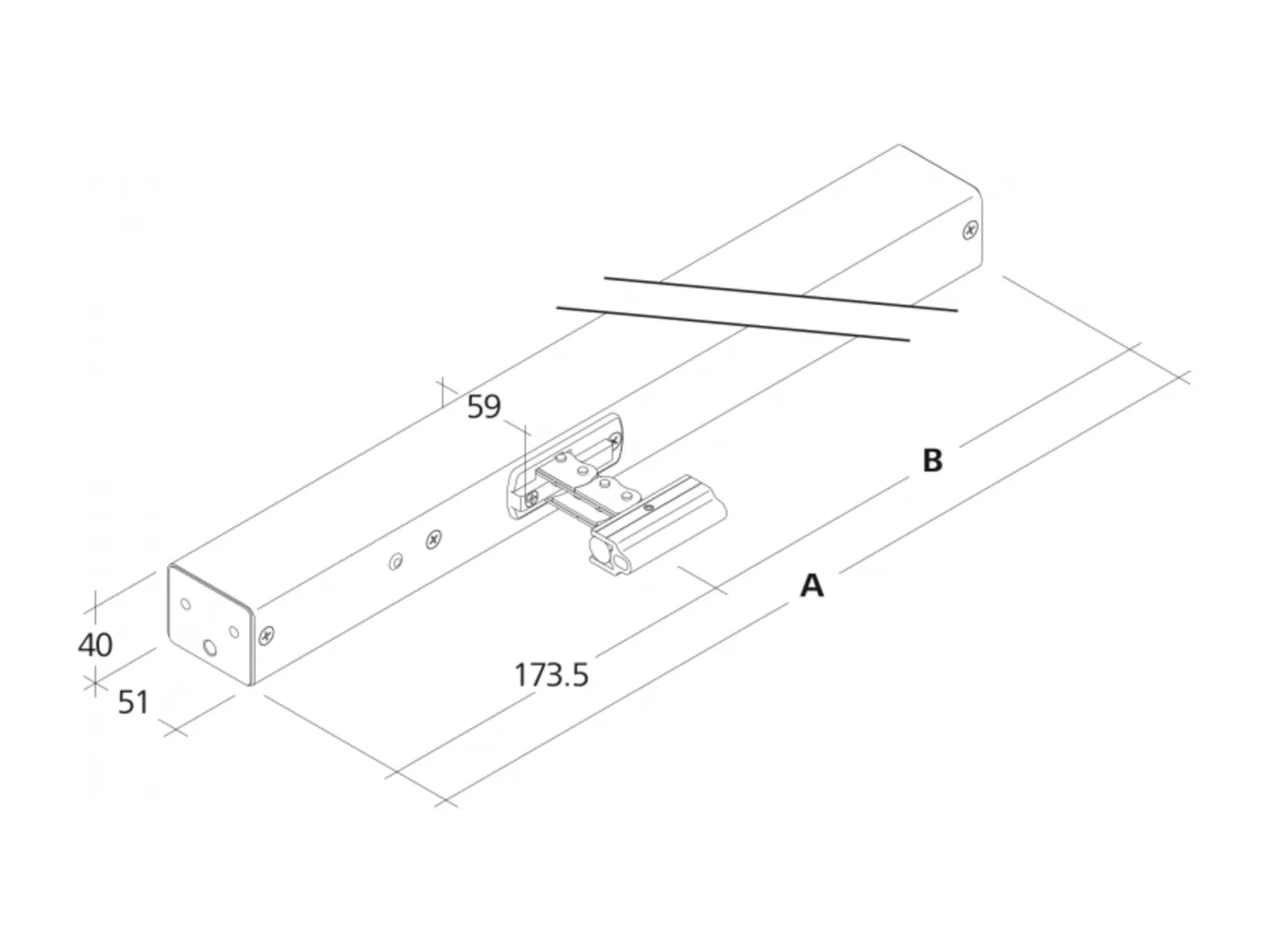

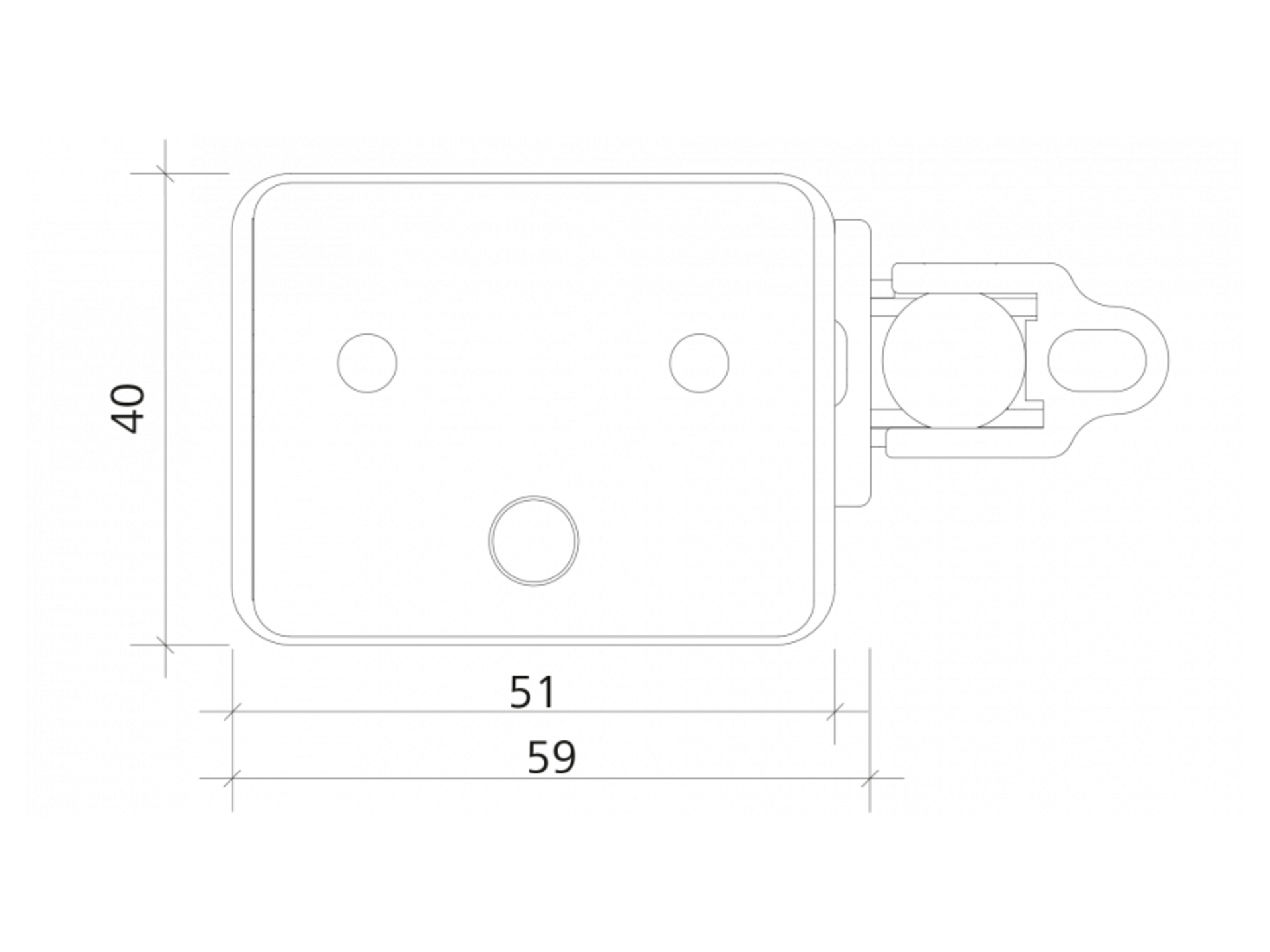

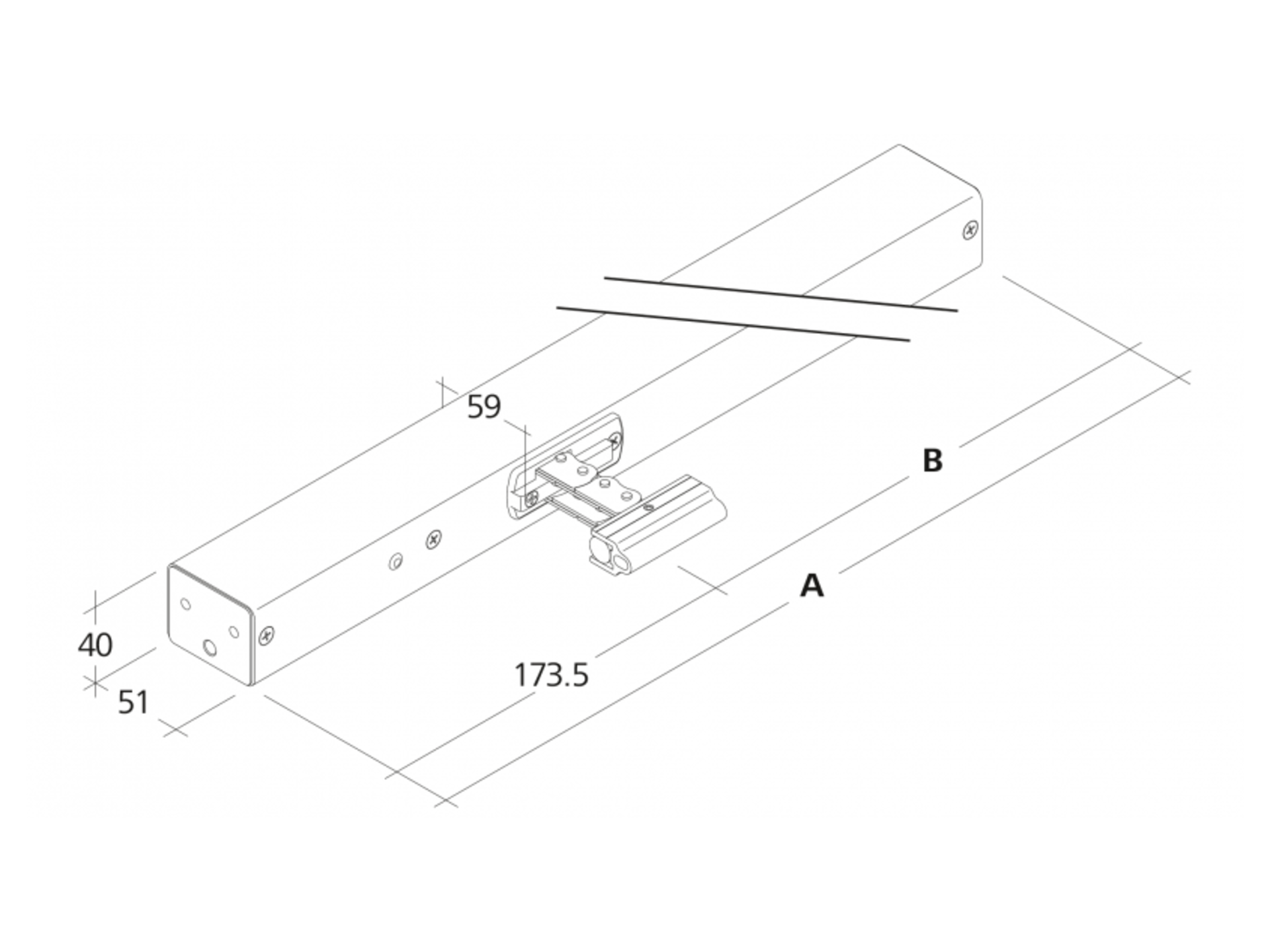

W x H x D	421 - 902**** x 40 x 59 mm
Weight	1.60 - 3.60 kg****

* For vertical use, consult a specialist from our company.
** Depending on the anchoring method.
*** In accordance with VdS 2580.
**** Depending on the stroke length.

Optional extras

Function programming
The option of configuring drive parameters (e.g. the stroke) individually using software and the related service tools, for drives fitted with PLP, BSY or BSY+ electronics.
BSY+ (drive synchronisation)
BSY+ enables communication and synchronisation between different components in a window. For example, between chain drives in synchronous operation or between window drives and locking drives (e.g. FRA 11 BSY+ or VLD-BSY+).
End position signal (OPEN / CLOSED)
Feedback from the drive via an integrated potential-free switching contact. It is given when the chain drive or linear drive has fully extended or retracted.
Acoustic signal (corresponding to the protection class)
AS2 corresponds to “protection class 2” of the ZVEI risk assessment by means of an acoustic warning signal in the “CLOSED” running direction. AS3 corresponds to “protection class 3” of the ZVEI risk assessment: in addition to AS2, it stops the drive for 11 s with a remaining stroke of 28 mm.
SKS (closing edge protection)
An optional function that allows an “anti-trap” safety edge or a presence detector to be connected directly to the drive (terminating resistor 5.6 kΩ).
SGI signal (position reporting)
In combination with the D+H servo plug-in unit SE 622 or the BSY gateway BSY-GW-024-010-U, drives can be controlled with precise positioning.
BRV signal
Confirmation from the drive, via the control cable, that the drive has fully extended or retracted. When used with the AT 41 and ERM 44 modules, this signal is sent to the central building management system, to the modules themselves or to the locking drive. The BRV signal is not potential-free.
SBD (bendable chain)
The drive chain with a rigid back bends in the direction of the hinges. The drive is fixed in place (it does not pivot).
SBU (bendable chain)
The drive chain with a rigid back bends in the direction of the hinges. The drive is fixed in place (it does not pivot).

Certificates and approvals

EN 12101-2
VdS Schadenverhütung
Dekra
