  • LDx-5

LDx-5

LOUVRE DRIVE 230 V
Category:

The LD range is exceptionally versatile. Thanks to an adapter for specific louvre mounting or a centred operator arm, these drives are suitable for practically all types of louvres. Unlike the LDx-1-PLP drive, this louvre drive is fitted with an integrated 230 V power supply unit.

LDx-5
LDx-5 - White version
LDx-5 - Various colour options

Features

  • Maximum push force and pull force of 1400 N and 1800 N
  • Nominal locking force of 5000 N for very large louvre windows.
  • Direct control via 230 V AC
  • Centrally supported actuator position
  • Developed based on DIN EN 12101-2
  • Can be used for smoke exhaust openings and for daily ventilation
  • With microprocessor-controlled motor electronics
  • With a sound pressure level of LpA ≤ 45 dB(A), the drive is among the quietest in its class
  • Drive components protected against corrosion
  • Additional passive and active protection system against entrapment at the main closing edges, with reversing function
  • Available in any RAL shade
  • Can be used for practically all types of louvre windows incl. EuroLam, Fieger, HAHN, NACO, Schneider + Nölke.

Gallery

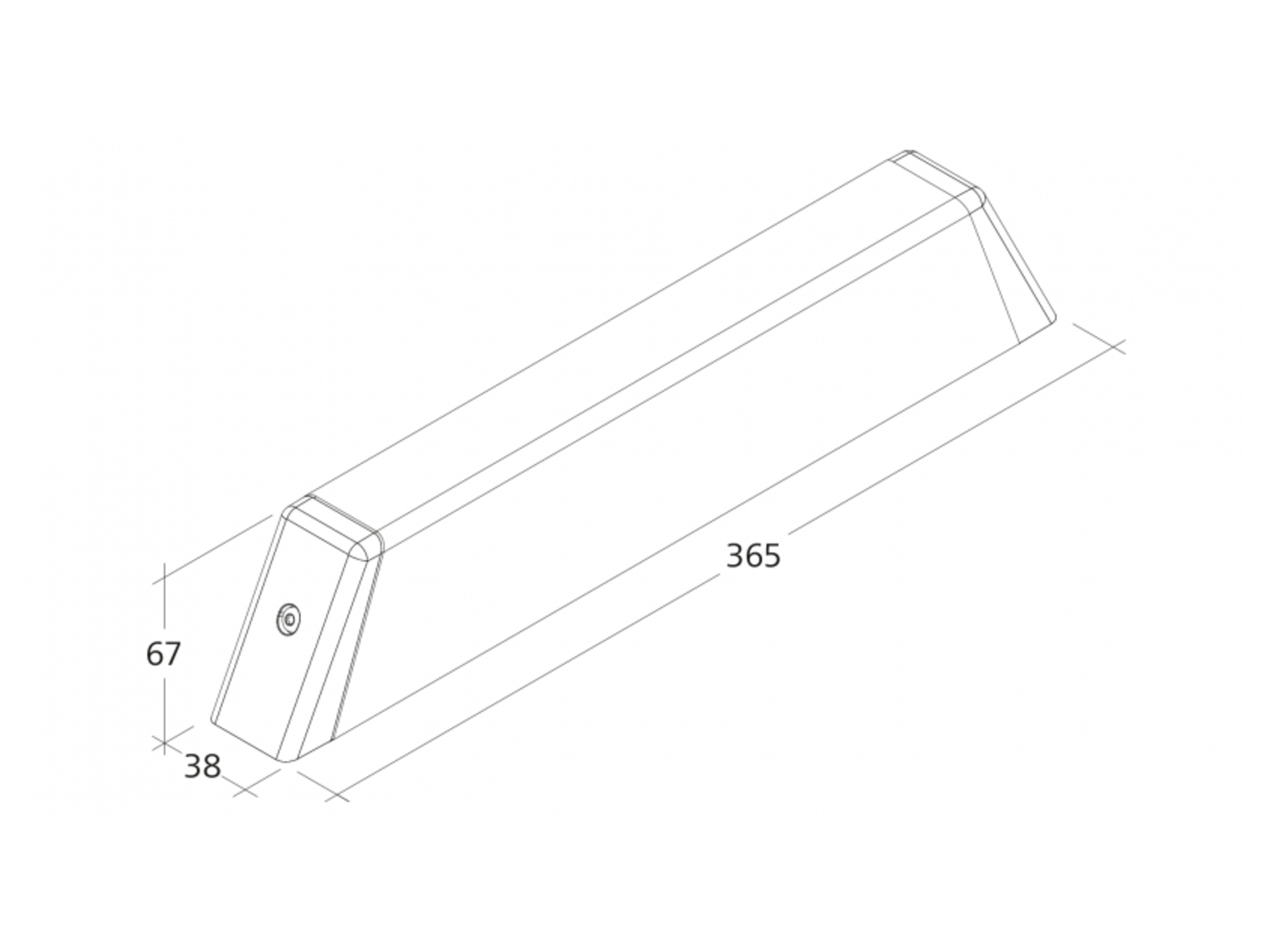

LDx-5 - Dimensions
LDx-5 - Dimensions (PNG, ~484 KB)

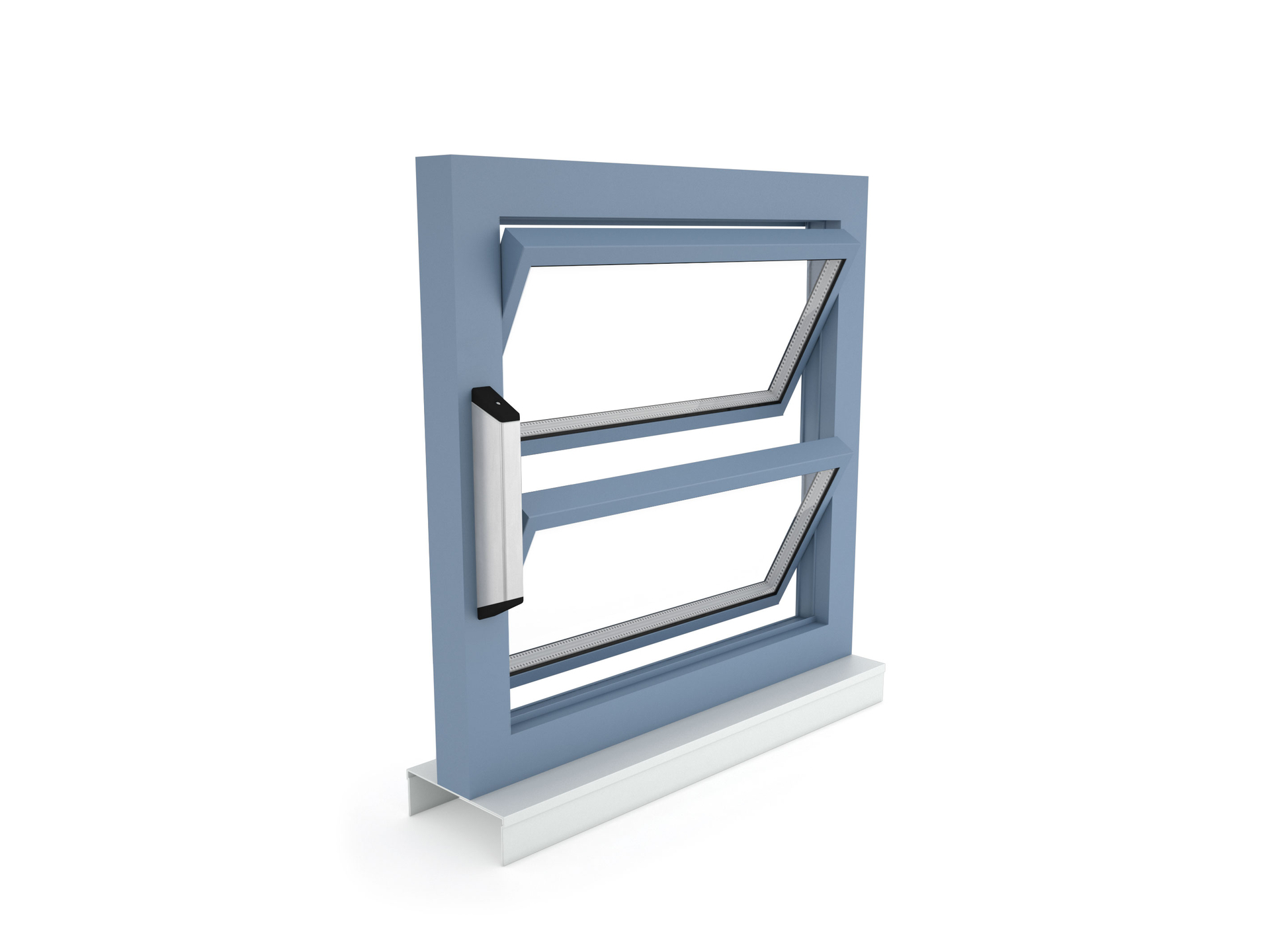

LDx-5 - Surface mounting on a louvre window
LDx-5 - Surface mounting on a louvre window (JPG, ~364 KB)

Downloads

Technical data

LDx-1400-5 LDx-1800-5
Power supply 230 V AC / +20 % … -15 % 230 V AC / +20 % … -15 %
Input frequency 50 Hz 50 Hz
Power 42 W / 65 VA 52 W / 75 VA
Push force 1 400 N 1 800 N
Pull force 1 400 N 1 800 N
Nominal locking force 5 000 N 5 000 N
Service life 20 000 double cycles 20 000 double cycles
Travel 36 - 90 mm 36 - 90 mm
Opening speed 2 mm/s 2 mm/s
Closing speed 2 mm/s 2 mm/s
Protection rating IP 40 IP 40
Emission sound pressure level LpA ≤ 45 dB(A) LpA ≤ 45 dB(A)
Temperature range -5 °C ... +75 °C * -5 °C ... +75 °C *
Fire resistance B300 (30 min / 300 °C) B300 (30 min / 300 °C)
Material aluminium aluminium
Surface finish anodising anodising
Colour any colour to the RAL palette any colour to the RAL palette
Connection silicone cable silicone cable
W x H x D 365 x 67 x 38 mm 365 x 67 x 38 mm
Weight 1.50 kg 1.50 kg
* In accordance with VdS 2580

Optional extras

  • Function programming
    The option of configuring drive parameters (e.g. the stroke) individually using software and the related service tools, for drives fitted with PLP, BSY or BSY+ electronics.
  • SKS (closing edge protection)
    An optional function that allows an “anti-trap” safety edge or a presence detector to be connected directly to the drive (terminating resistor 5.6 kΩ).
  • End position signal (OPEN / CLOSED)
    Feedback from the drive via an integrated potential-free switching contact. It is given when the chain drive or linear drive has fully extended or retracted.
