  • RZN 4408-K

RZN 4408-K

SHEV CONTROL PANEL
Category:

Improved voltage quality with high output: the RZN 4408-K is one of our modular control panels and activates SHEV and ventilation drives with up to 8 A. AdComNet-ready.

RZN 4408-K

Features

  • Compact SHEV control panel - ready for AdComNet
  • Approved by VdS to EN 12101-10 and certified to ISO 21927-9, and meets the requirements of DIN 18232-9.
  • Total drive current up to 8 A
  • Stabilised output voltage
  • Switchable SHEV safety functions: fault triggers alarm, SHEV re-trigger function and remote reset of the smoke detector
  • The SHEV function can be combined with the building's fire alarm system (EPS)
  • Integrated comfort functions for daily ventilation
  • 1 slot for an additional module
  • Optional connection to rain detectors or wind/rain sensors without an additional module
  • Connection of up to 8 SHEV control panels and 14 fire detectors per line (only D+H detectors may be used)
  • Min. backup battery power 72 hrs.

Gallery

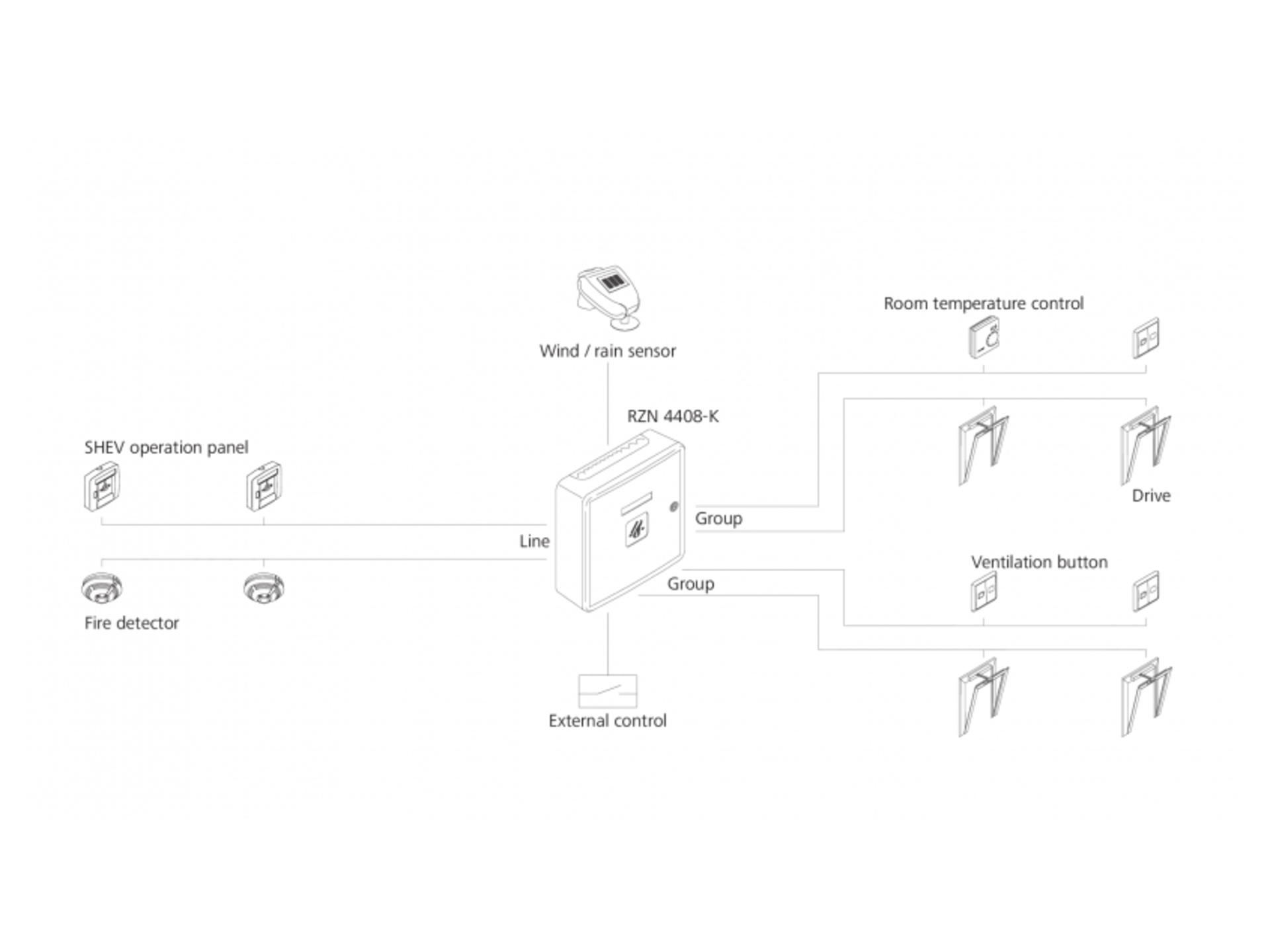

RZN 4408-K - Wiring diagram
RZN 4408-K - Wiring diagram (PNG, ~472 KB)

Downloads

Technical data

RZN 4408-K
Input voltage 230 V AC
Input frequency 50 Hz
Power 240 VA
Standby power 4.5 W
Output voltage 24 V DC
Output current 8 A
Ripple < 2 Vss
Battery Type 8 (2x)*
Number of groups 2
Number of lines 1
Monitoring mode continuous operation
Operating mode SHEV / daily ventilation short-term operation 30% duty cycle
Temperature range -5 °C ... +40 °C
Weight 2.90 kg
the headbox is available in a plastic or steel version and must be ordered separately
* the battery must be ordered separately
