  • RZN 4416-M

RZN 4416-M

SHEV CONTROL PANEL
Category:

A powerful modular control panel with a current of up to 16 A: our RZN 4416-M control panel is a compact SHEV control panel with a circuit board permanently fitted in the enclosure. For 2 fire compartments, 3 drive groups and an expansion slot. AdComNet-ready.

RZN 4416-M
RZN 4416-M - Box

Features

  • Compact SHEV control panel - ready for AdComNet
  • Approved by VdS to EN 12101-10 and certified to ISO 21927-9, and meets the requirements of DIN 18232-9.
  • Total drive current up to 16 A
  • Stabilised output voltage
  • Switchable SHEV safety functions: fault triggers fire alarm, SHEV re-trigger function and remote reset of the smoke detector
  • The SHEV function can be combined with the building's fire alarm system (EPS)
  • Integrated comfort functions for daily ventilation
  • 1 slot for an additional module
  • Optional connection to rain detectors or wind/rain sensors without an additional module
  • Connection of up to 8 SHEV control panels and 14 fire detectors per line (only detectors approved by D+H may be used)
  • A smart dual SHEV system as an alternative to separate units, e.g. for 2 staircases.
  • Min. backup battery power 72 hrs.

Gallery

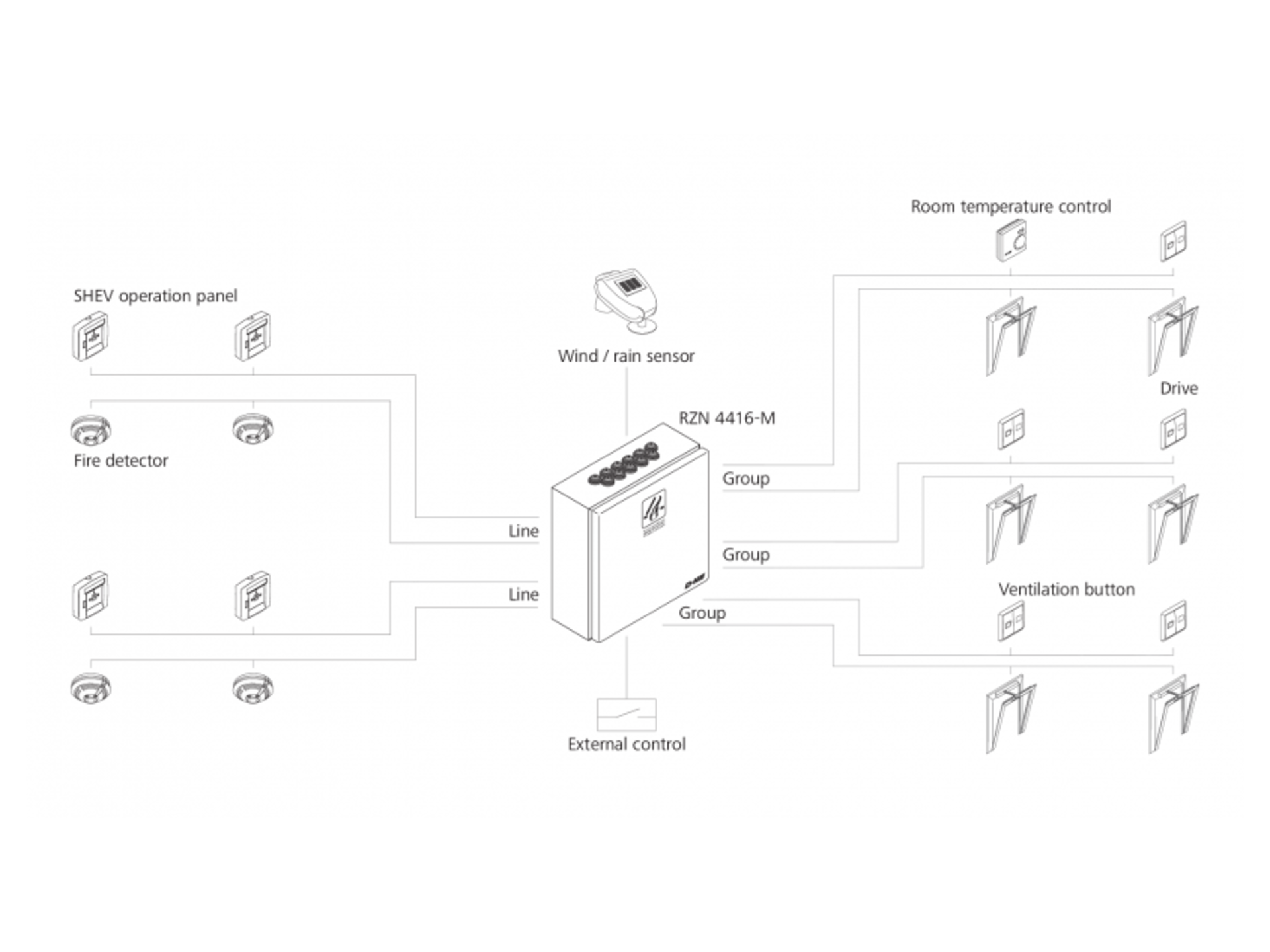

RZN 4416-M - Wiring diagram
RZN 4416-M - Wiring diagram (PNG, ~541 KB)

Downloads

Technical data

RZN 4416-M
Input voltage 230 V AC
Input frequency 50 Hz
Power 500 VA
Standby power 13.6 W
Output voltage 24 V DC
Output current 16 A
Ripple < 2 Vss
Battery Type 3 (2x)*
Number of groups 3
Number of lines 2
Monitoring mode continuous operation
Operating mode SHEV / daily ventilation short-term operation 30% duty cycle
Temperature range -5 °C ... +40 °C
Protection rating IP 54
Material Steel
Colour Light grey (~ RAL 7035)
Weight 25.00 kg
* the battery must be ordered separately

Certificates and approvals

  • VdS Schadenverhütung
WE'RE HAPPY TO HELP

Need more information?

Contact our sales team by phone at +420 312 672 903 or by e-mail at [email protected].
