VCD-0204-1-ACB

DAILY VENTILATION DRIVE PACKED WITH TECHNOLOGY

Category:

Natural ventilation

Not as compact as the VCD-0203-1-ACB, but offering a longer stroke: the VCD-0204-1-ACB chain drive opens your windows up to 350 mm. Thanks to ACB technology, all drives can be controlled with millimetre precision.

Features

For façade windows, roof windows and ventilation flaps in winter gardens.
With an integrated BSY+ motor and microprocessor-controlled synchronised electronics.
Special chain stabilisation and centred chain output

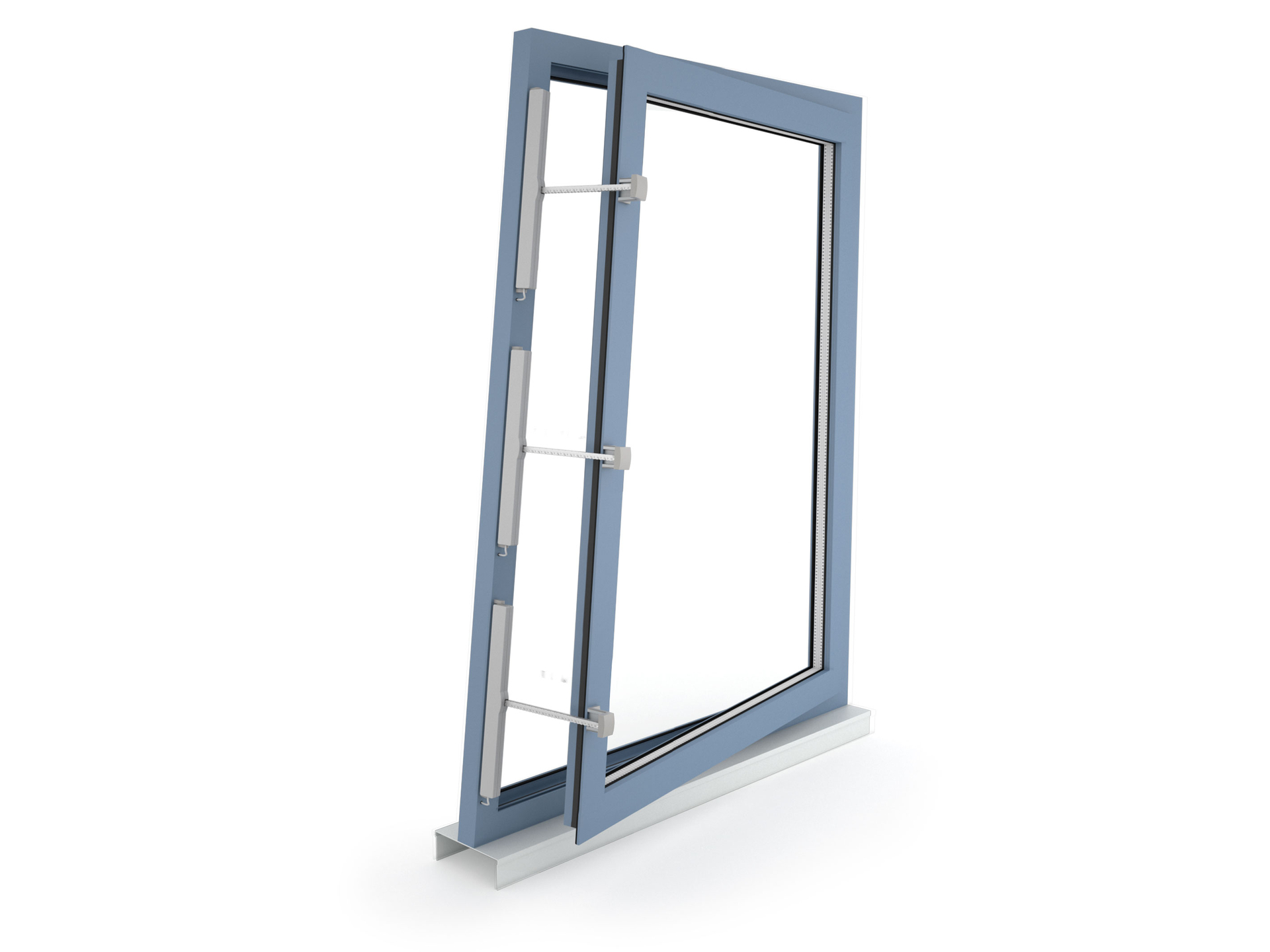

Up to 8 drives possible in one synchronous group
Simple connection via connector
Programmable drive functions and various drive parameters
Travel speed in the CLOSE direction drops to 5 mm/s (passive closing edge protection)
Timed reversing when an obstacle is detected in the CLOSE direction (active closing edge protection).
Integrated ACB (Advanced Communication Bus) bus interface with Modbus RTU protocol.
The drive is integrated directly via open bus communication through ACB (Advanced Communication Bus), e.g. into a building management system.
Available in any RAL shade

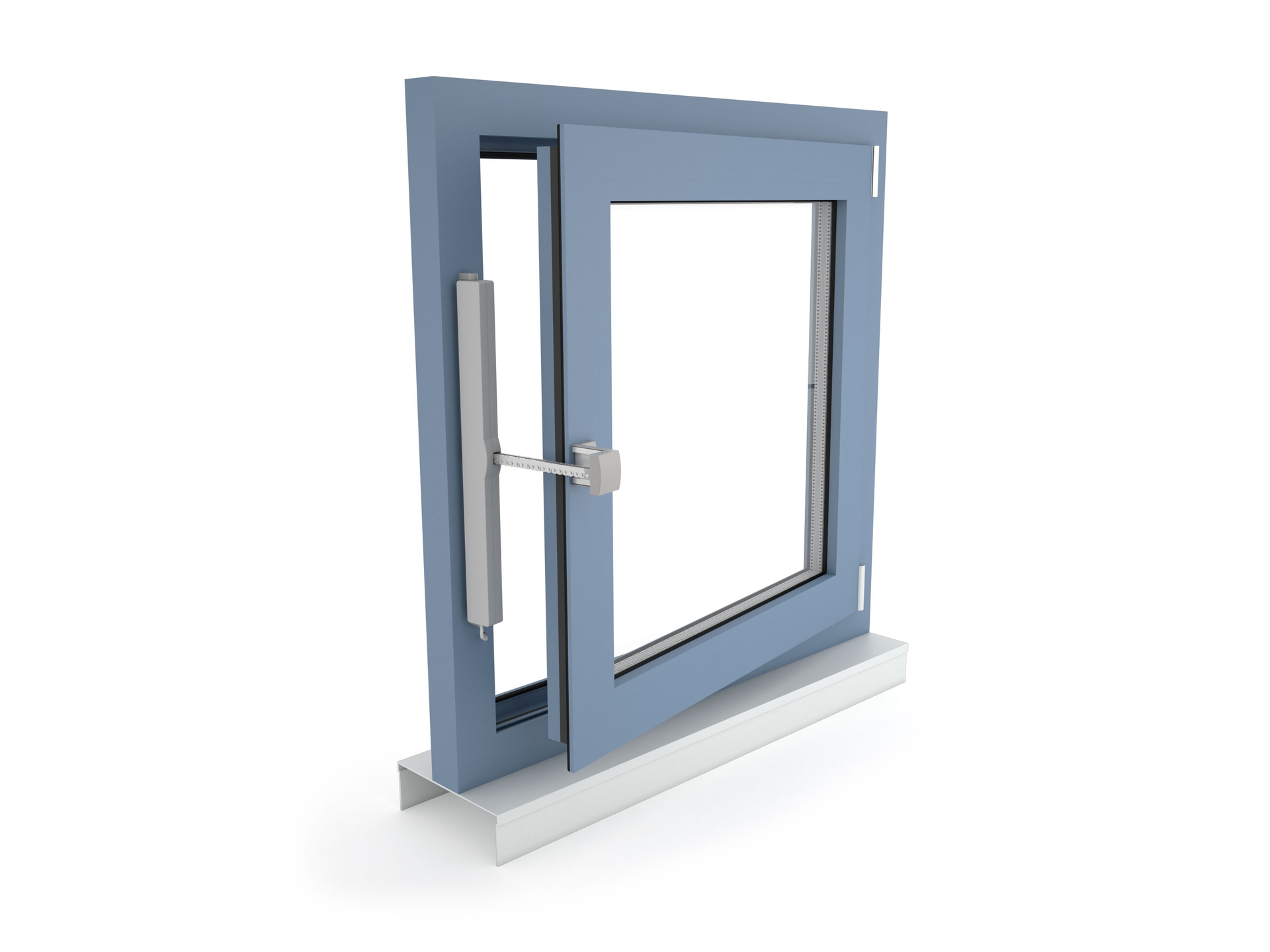

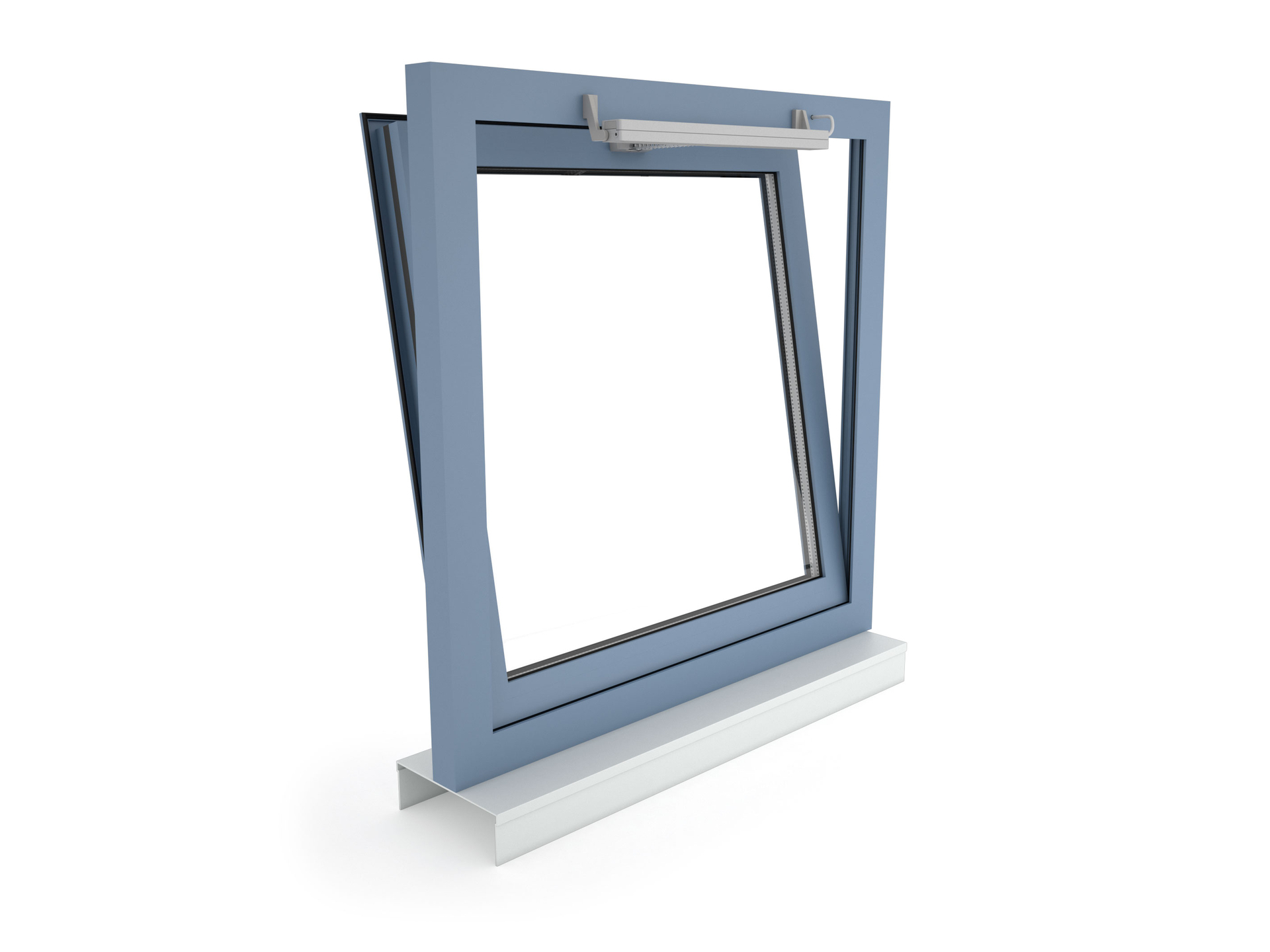

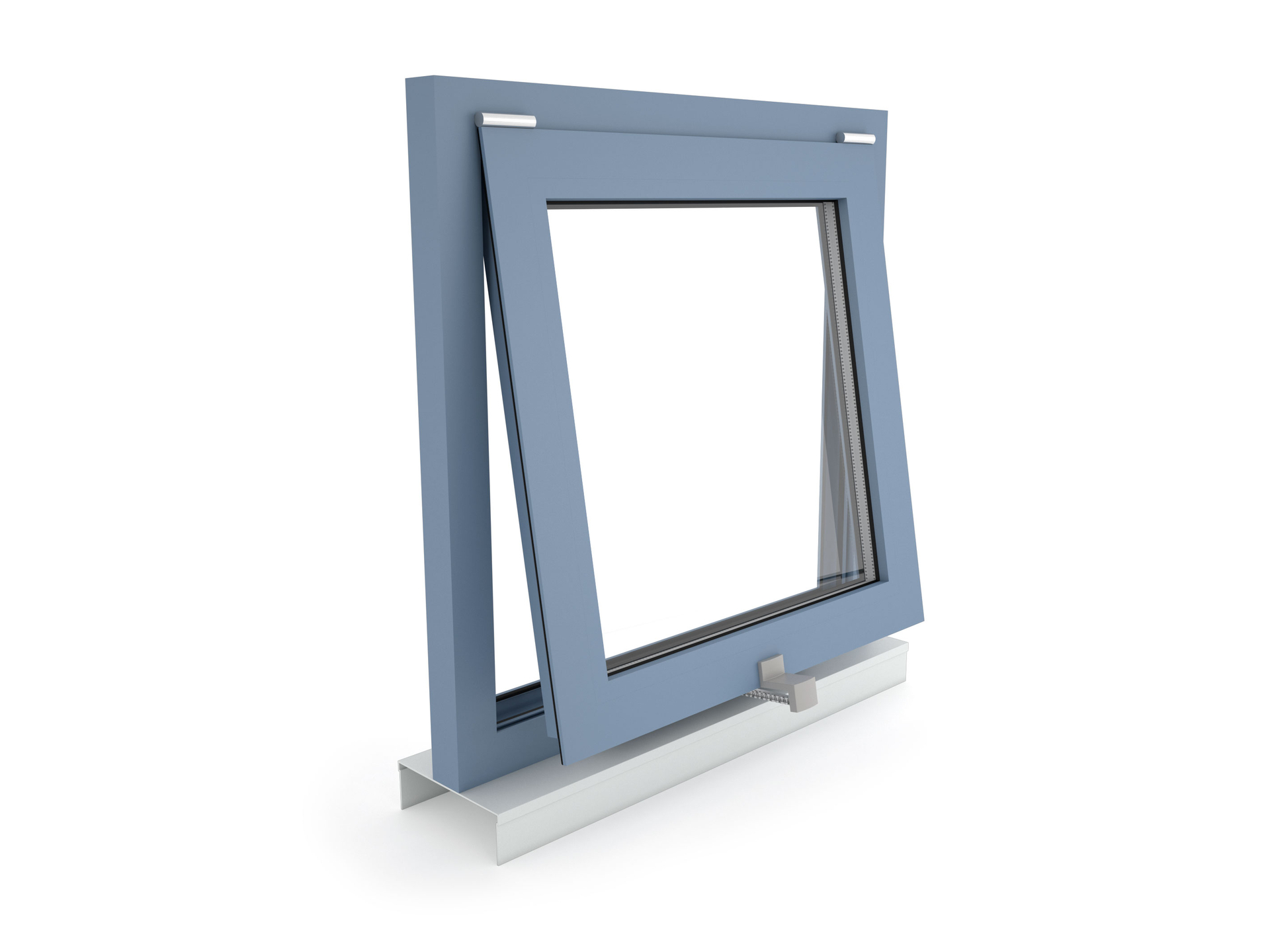

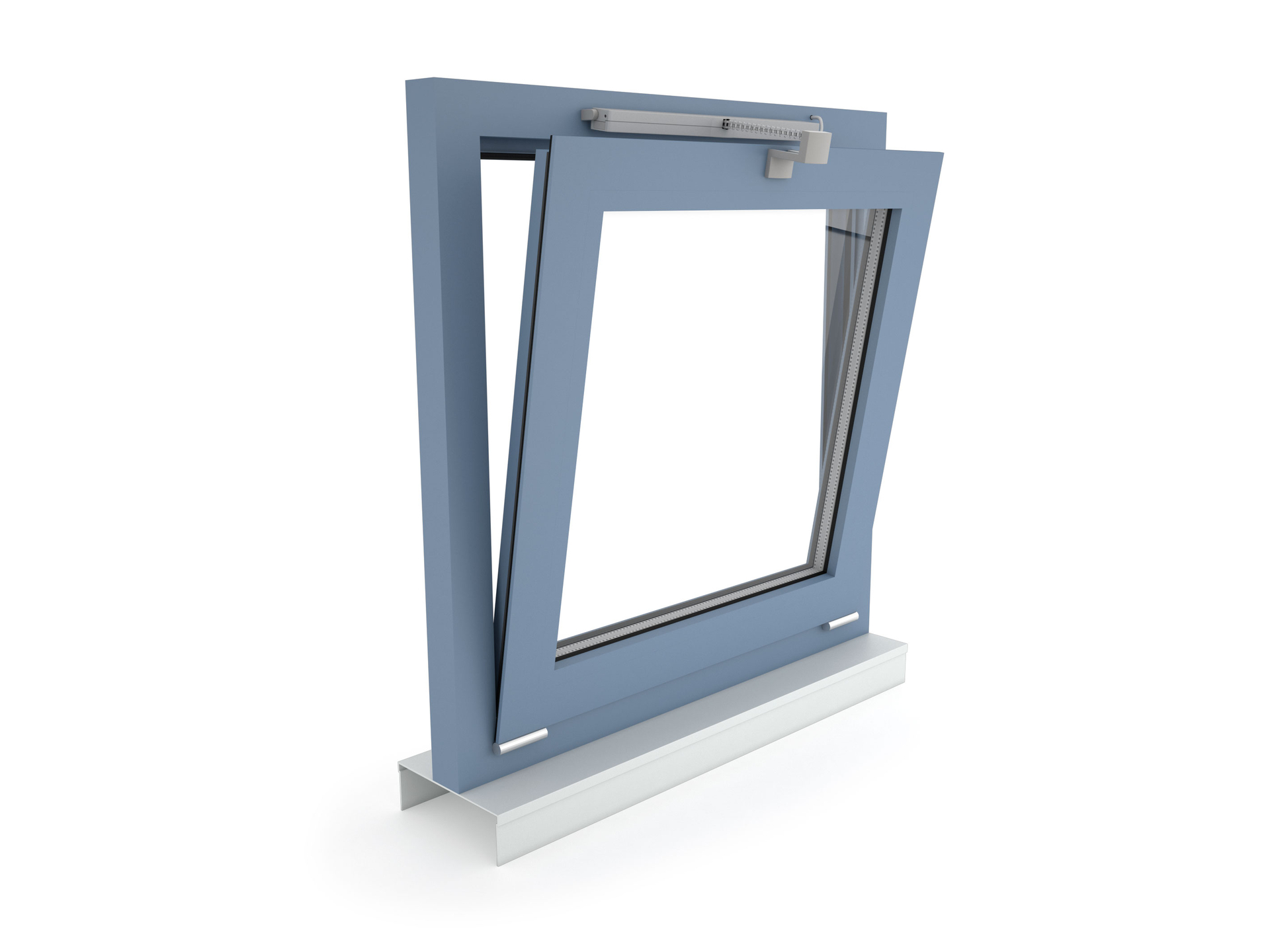

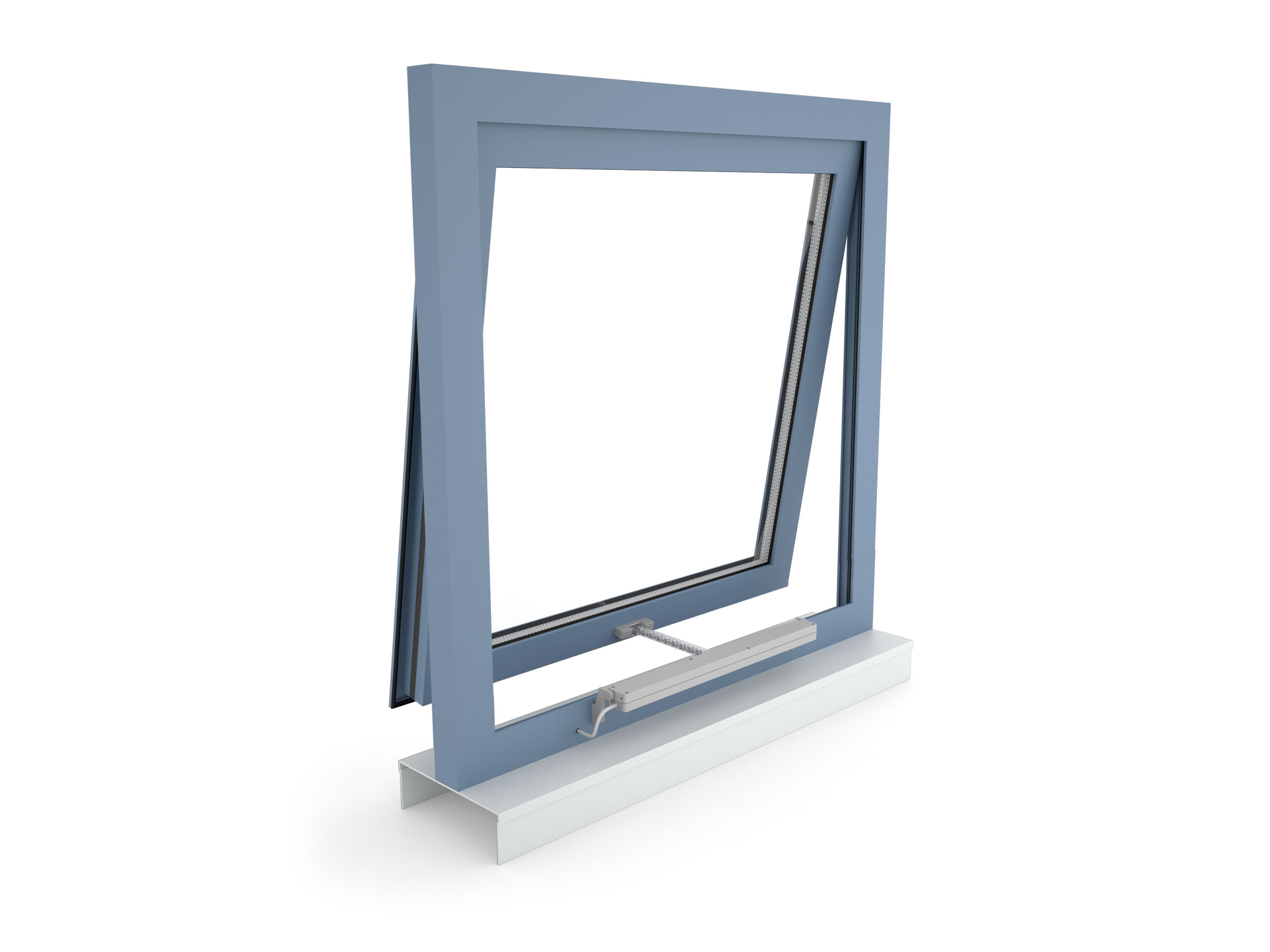

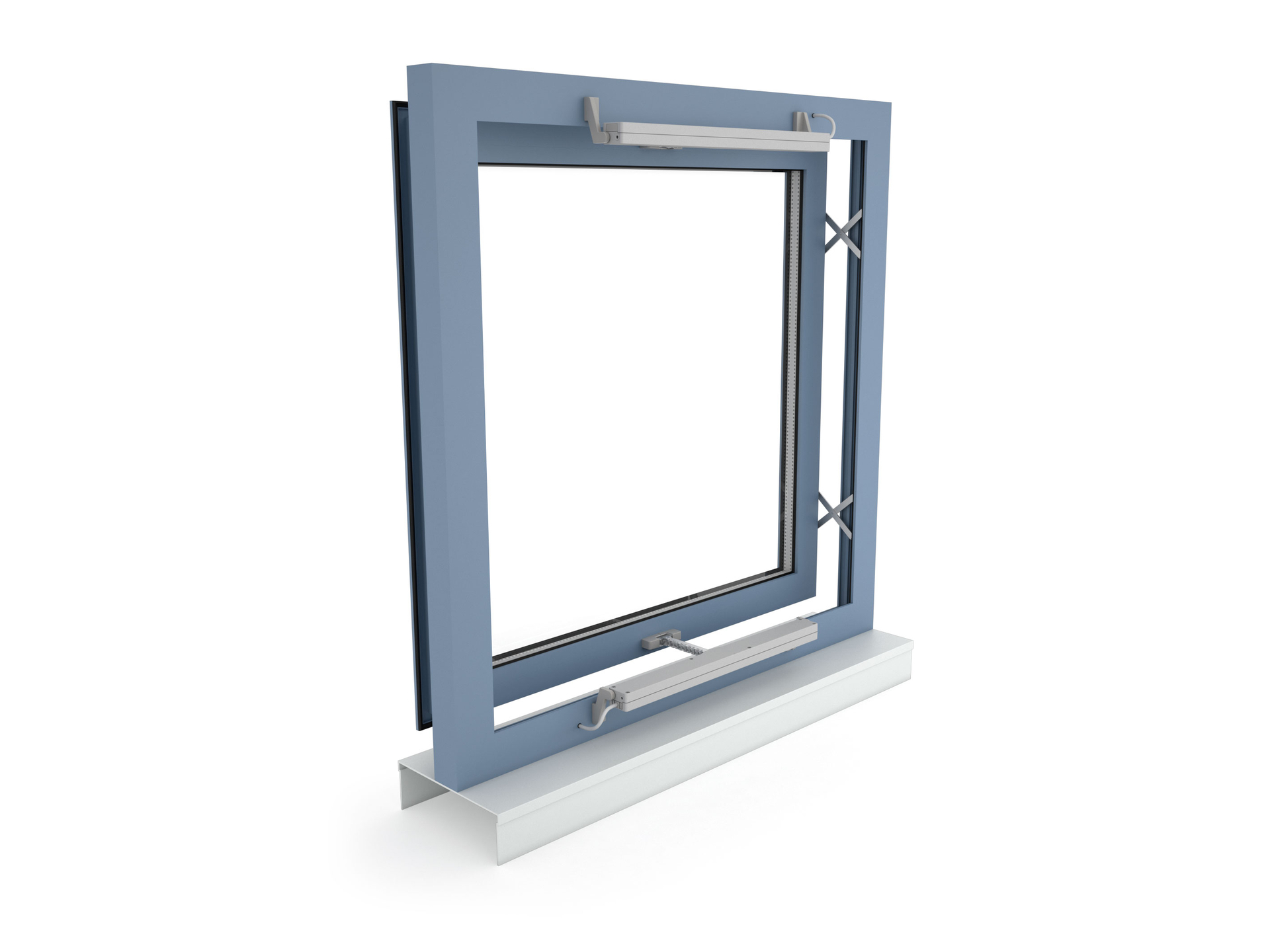

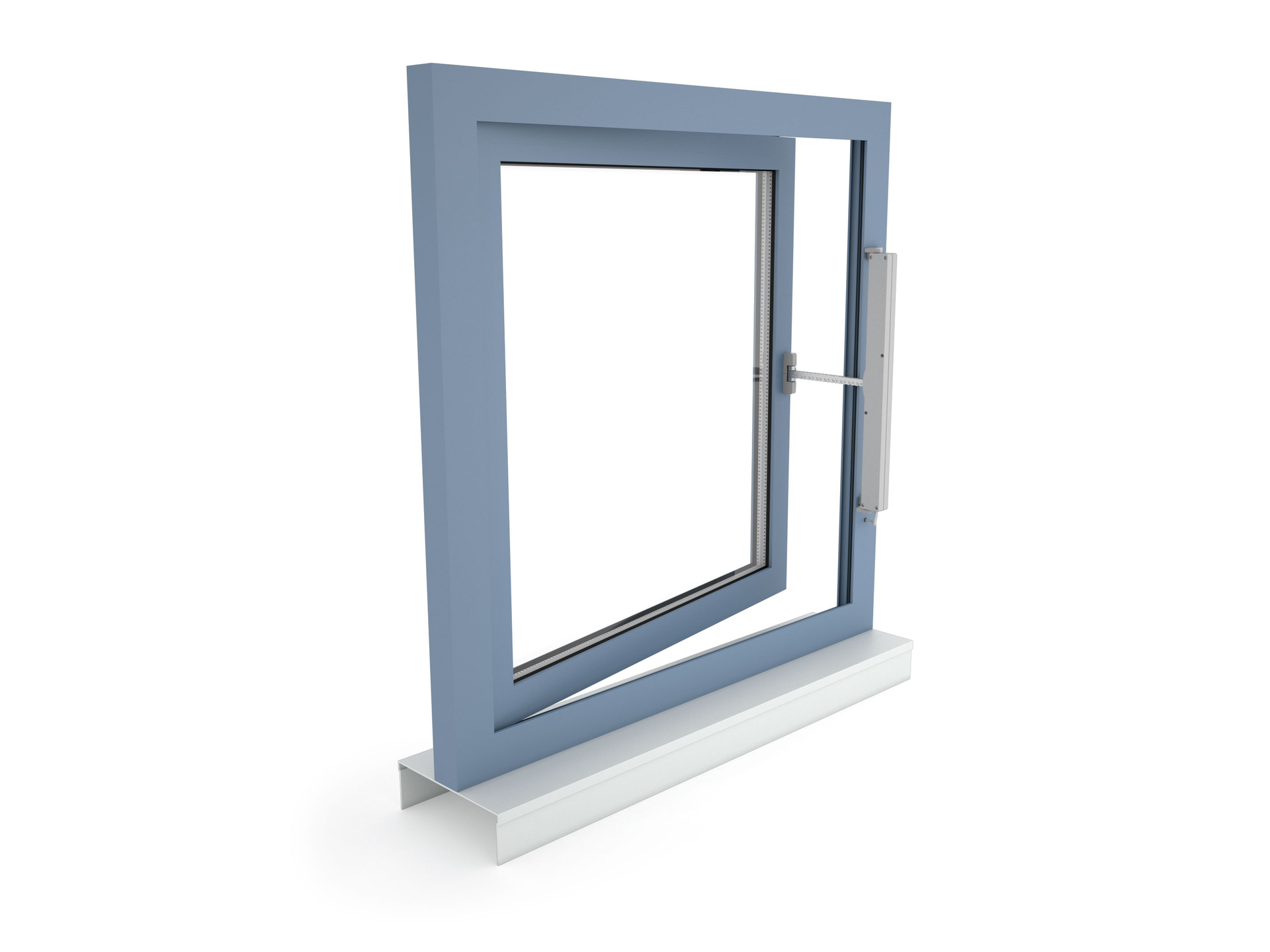

Can be used for practically all types of window openings
The drive is suitable for surface mounting on the window sash or frame
Thanks to universal brackets, the drive is compatible with almost all available types of system profiles incl. Aluprof, Colt, Gutmann, Heroal, Jet-Brakel, Raico, Reynaers, Sapa, Schüco, Skandinaviska, Technal, Wicona

Gallery

Downloads

Technical data

	VCD-0204-1-ACB
Power supply	24 V DC / ±20 % / 0.35 A
Duty cycle	30 % (ON: 3 min. / OFF: 7 min.)

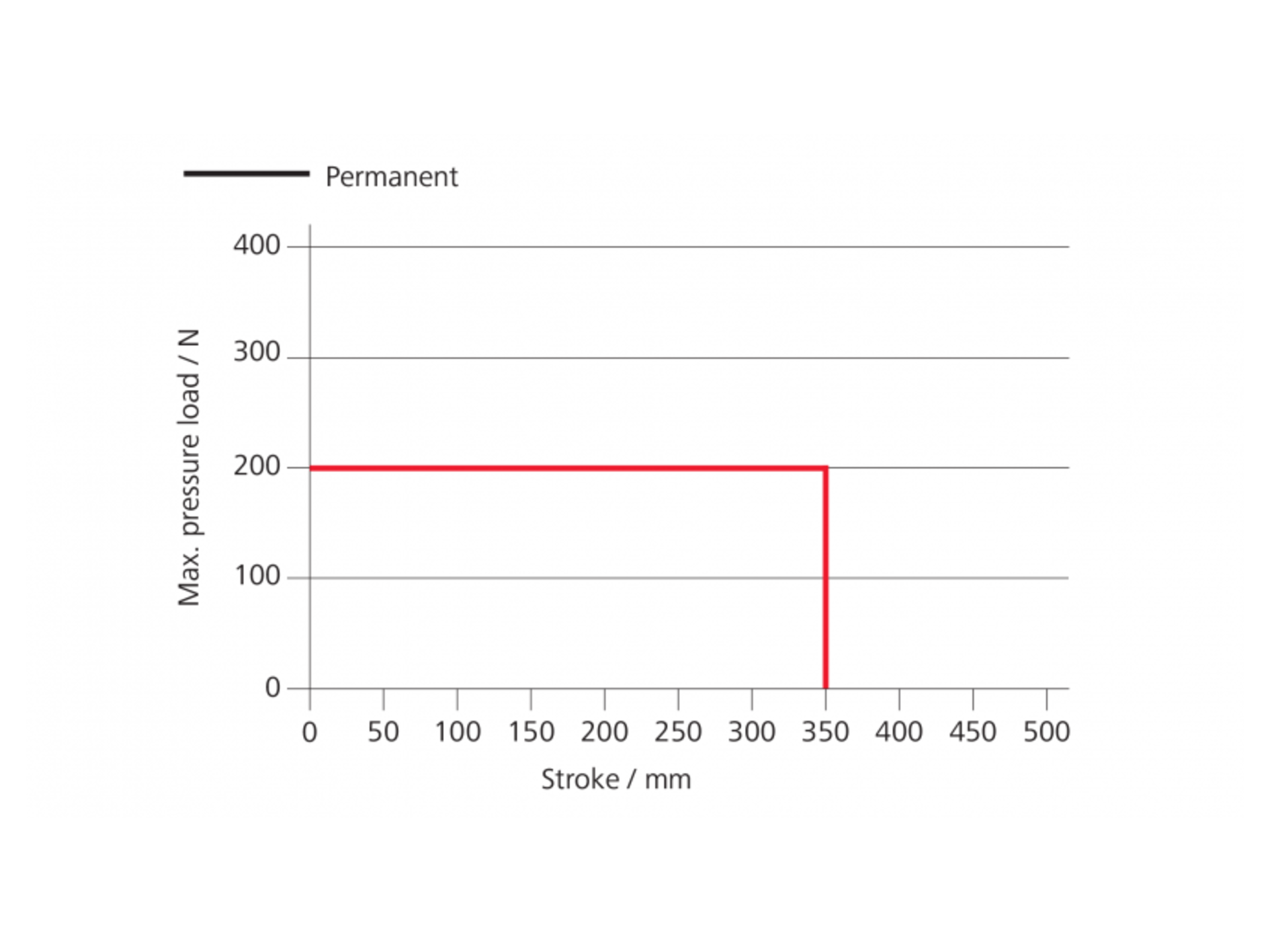

Push force	200 N
Pull force	200 N
Nominal locking force **	2000 N
Service life	20 000 double strokes *
Stroke	250 - 350 mm
Opening speed	6 mm/s
Closing speed	6 mm/s
Protection rating	IP 30
Emission sound pressure level	LpA ≤ 46 dB(A)
Temperature range	0 °C ... +60 °C
Material	die-cast zinc
Surface finish	powder coating
Colour	White aluminium (~ RAL 9006)
Connection	2.5 m PVC cable

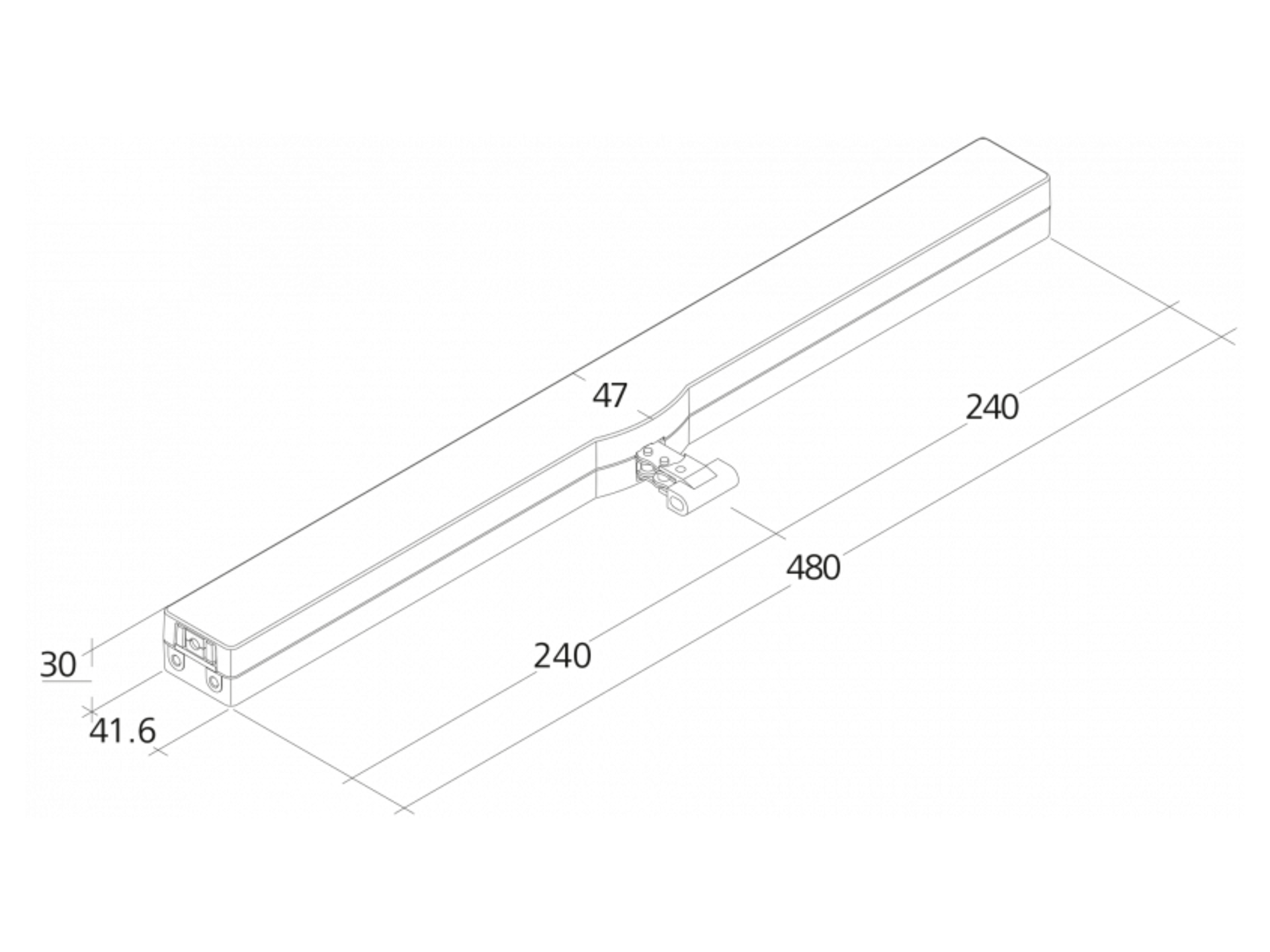

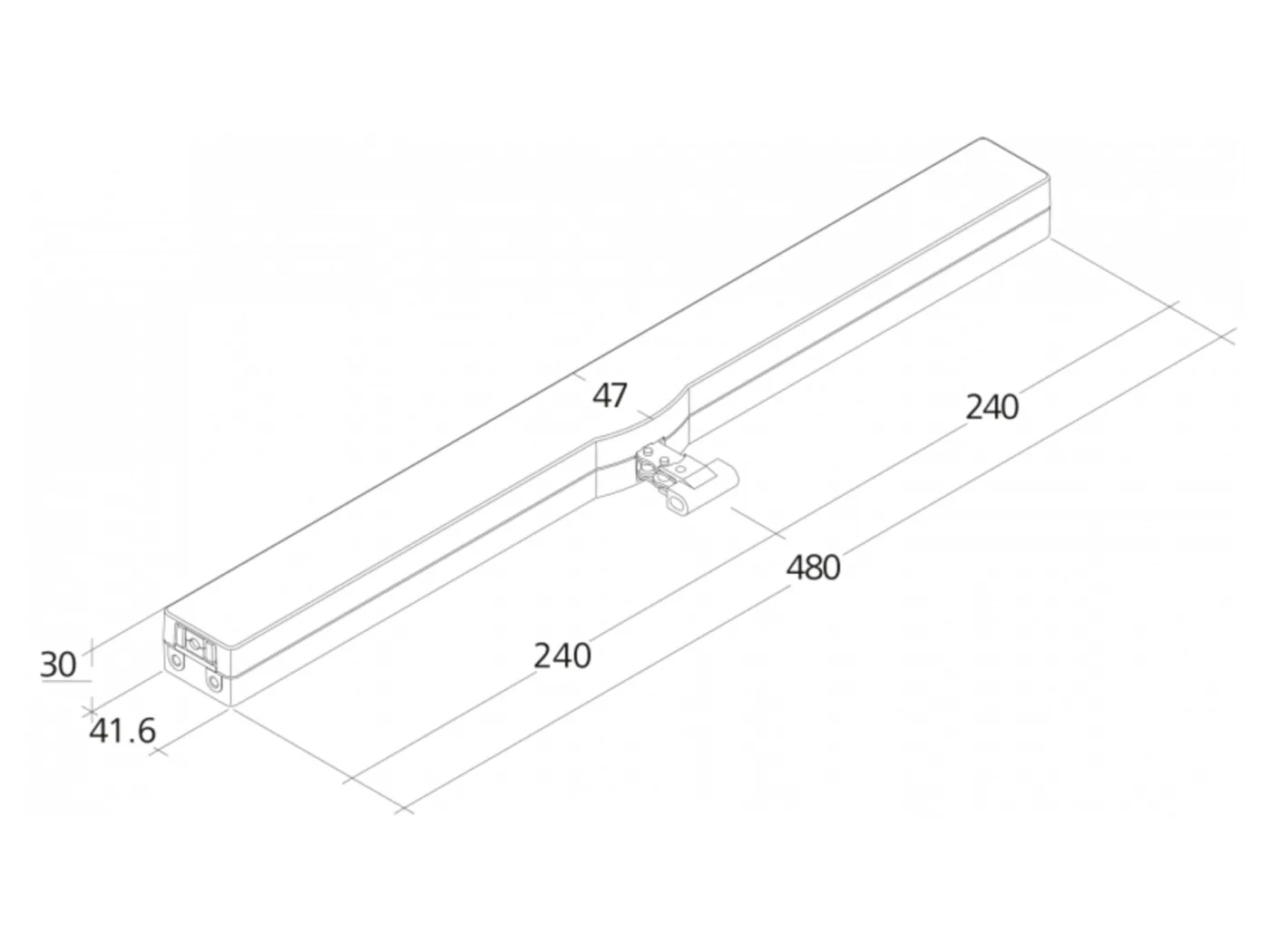

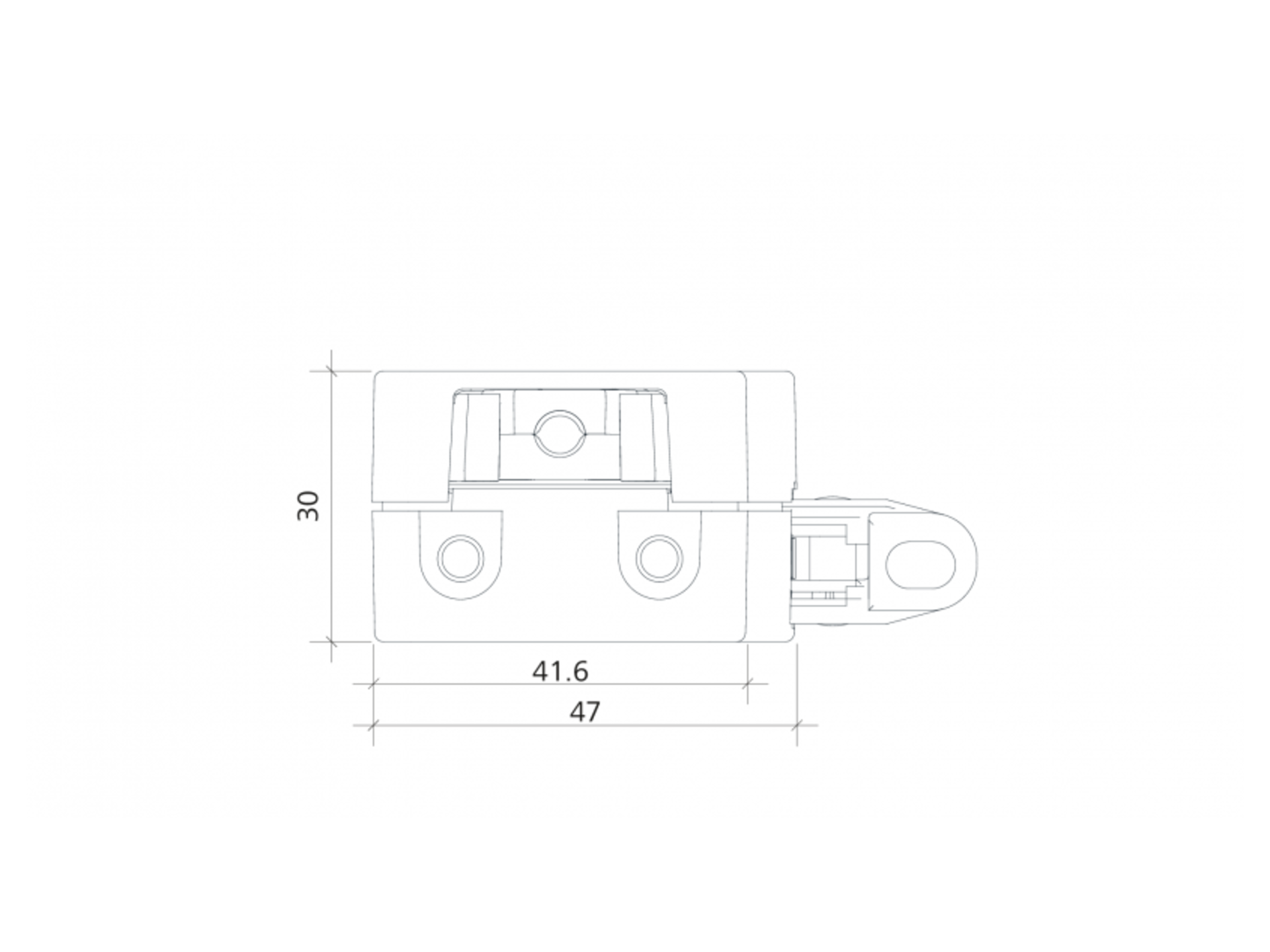

W x H x D	480 x 30 x 47 mm
Weight	1.55 kg

* For vertical use, consult a specialist from our company.
** Depending on the anchoring method.

Optional extras

Function programming
The option of configuring drive parameters (e.g. the stroke) individually using software and the related service tools, for drives fitted with PLP, BSY or BSY+ electronics.
ACB (Advanced Communication Bus)
Enables direct bus communication between the control panel and the drive, for example for control with precise positioning or for drive feedback. Communication runs over the open-source Modbus protocol and makes it possible to combine the drive with an ACB-capable control panel or to connect it directly to higher-level control systems such as a building management system.
BSY+ (drive synchronisation)
BSY+ enables communication and synchronisation between different components in a window. For example, between chain drives in synchronous operation or between window drives and locking drives (e.g. FRA 11 BSY+ or VLD-BSY+).
SKS (closing edge protection)
An optional function that allows an “anti-trap” safety edge or a presence detector to be connected directly to the drive (terminating resistor 5.6 kΩ).
Acoustic signal (corresponding to the protection class)
AS2 corresponds to “protection class 2” of the ZVEI risk assessment by means of an acoustic warning signal in the “CLOSED” running direction. AS3 corresponds to “protection class 3” of the ZVEI risk assessment: in addition to AS2, it stops the drive for 11 s with a remaining stroke of 28 mm.
