VCD 203

Name: VCD 203
Brand: FK servis s.r.o.

COMPACT AND AFFORDABLE DAILY VENTILATION DRIVE

The 24 V VCD 203 chain drive is particularly quiet when opening and closing façade windows, making it ideal for everyday ventilation operation. Our most compact window drive for installation, with a push force of 200 N and a stroke of up to 250 mm.

Features

For façade windows, roof windows and ventilation flaps in winter gardens.
With microprocessor-controlled motor electronics
"TMS+" safety function for operating 2 drives on one sash
The chain stroke can be programmed using a magnet
The reprogrammed opening stroke is transferred to the tandem drive
Simple connection via connector
Programmable drive functions and various drive parameters
Travel speed in the CLOSE direction drops to 5 mm/s (passive closing edge protection)
Timed reversing when an obstacle is detected in the CLOSE direction (active closing edge protection).
With an optional anti-burglary function and a maximum locking force of 4000 N
Available in any RAL shade

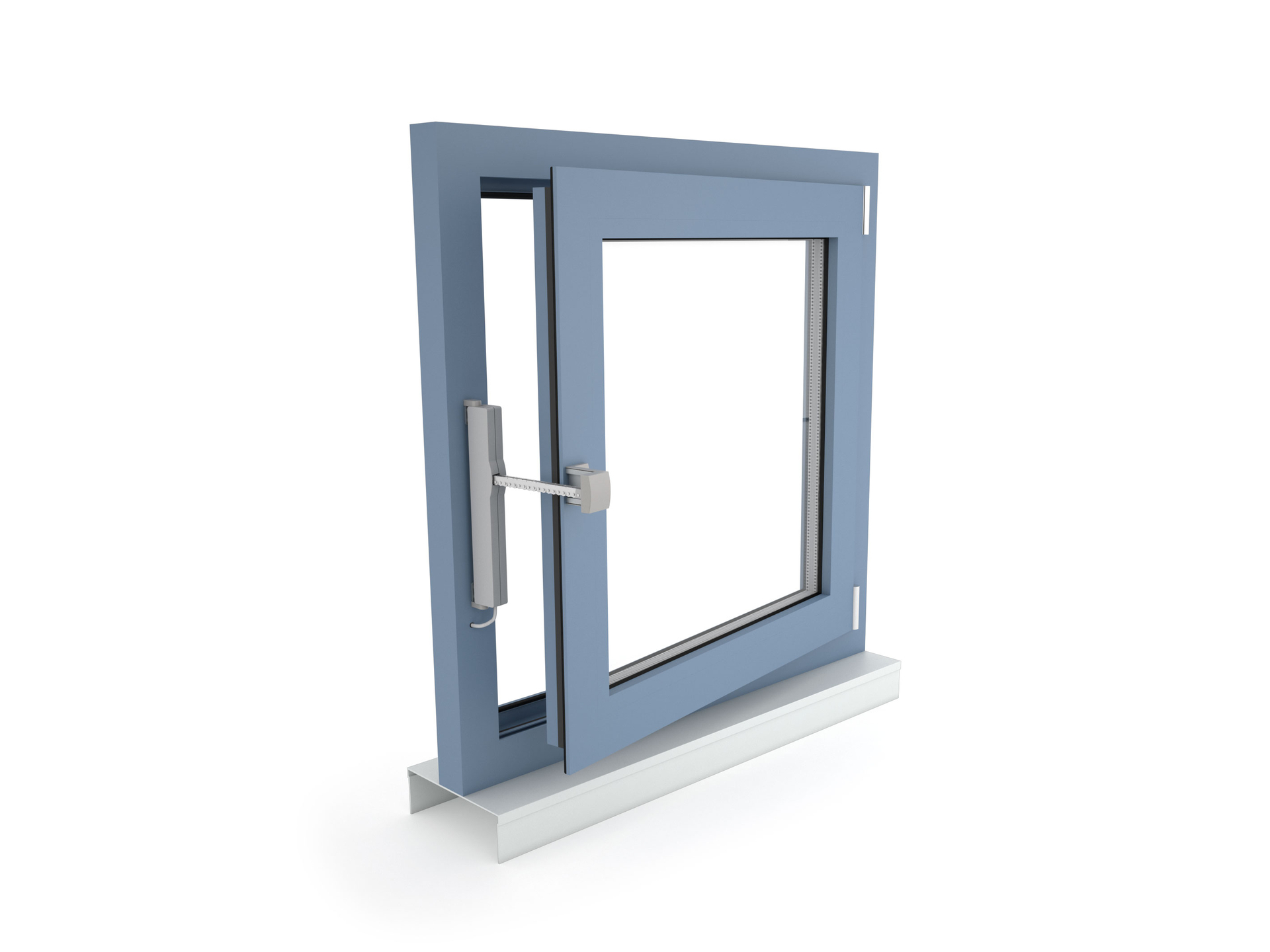

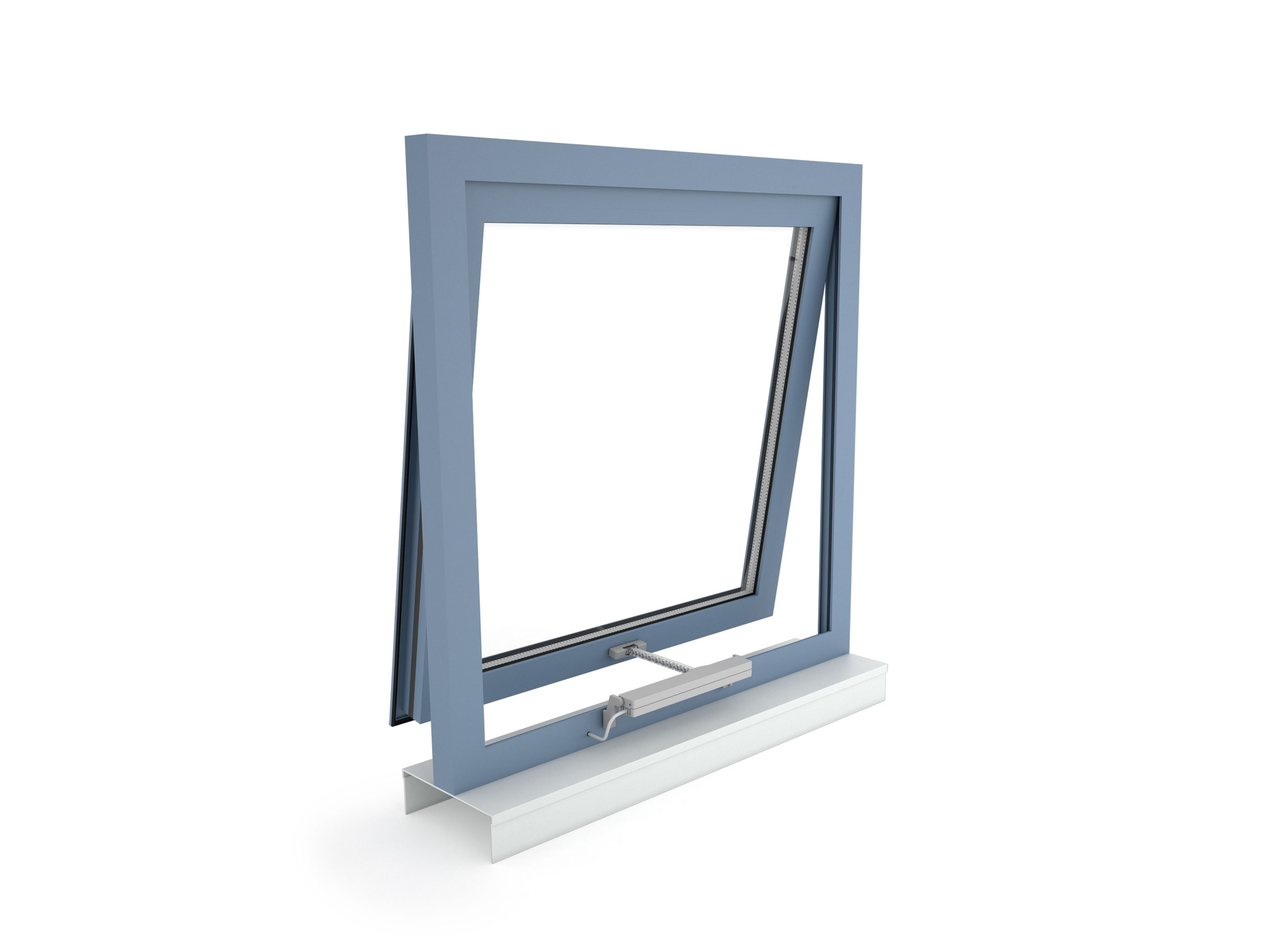

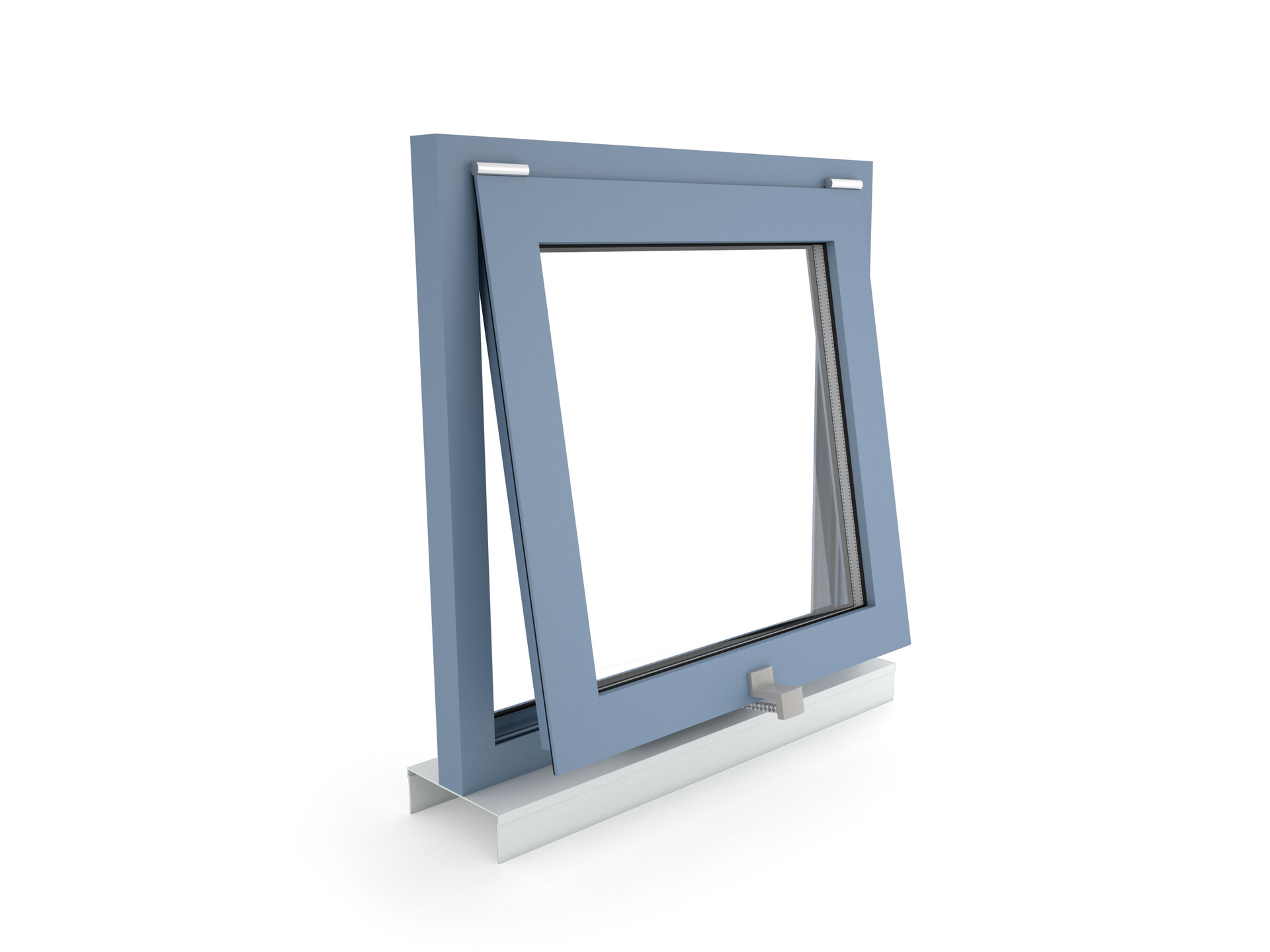

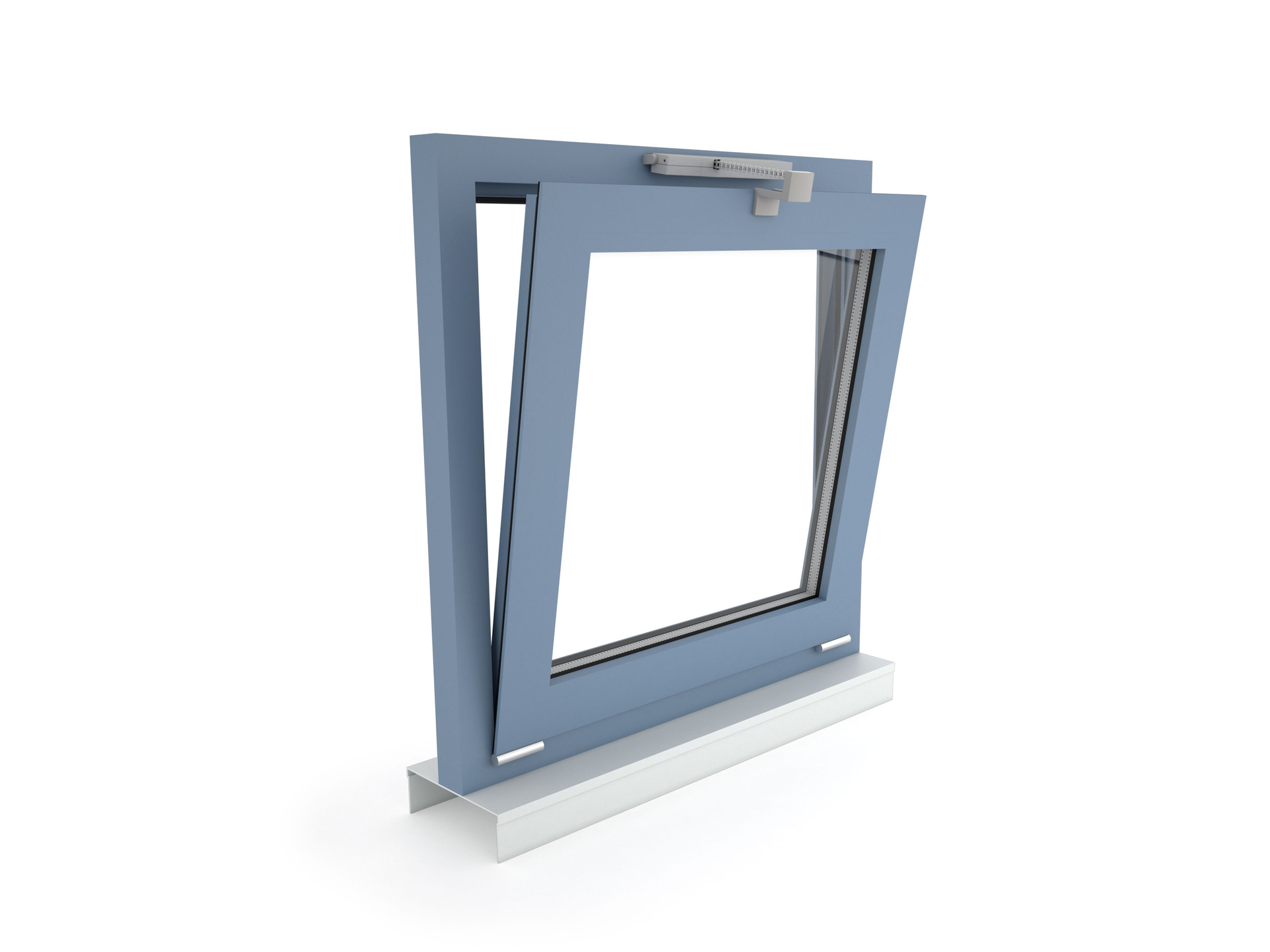

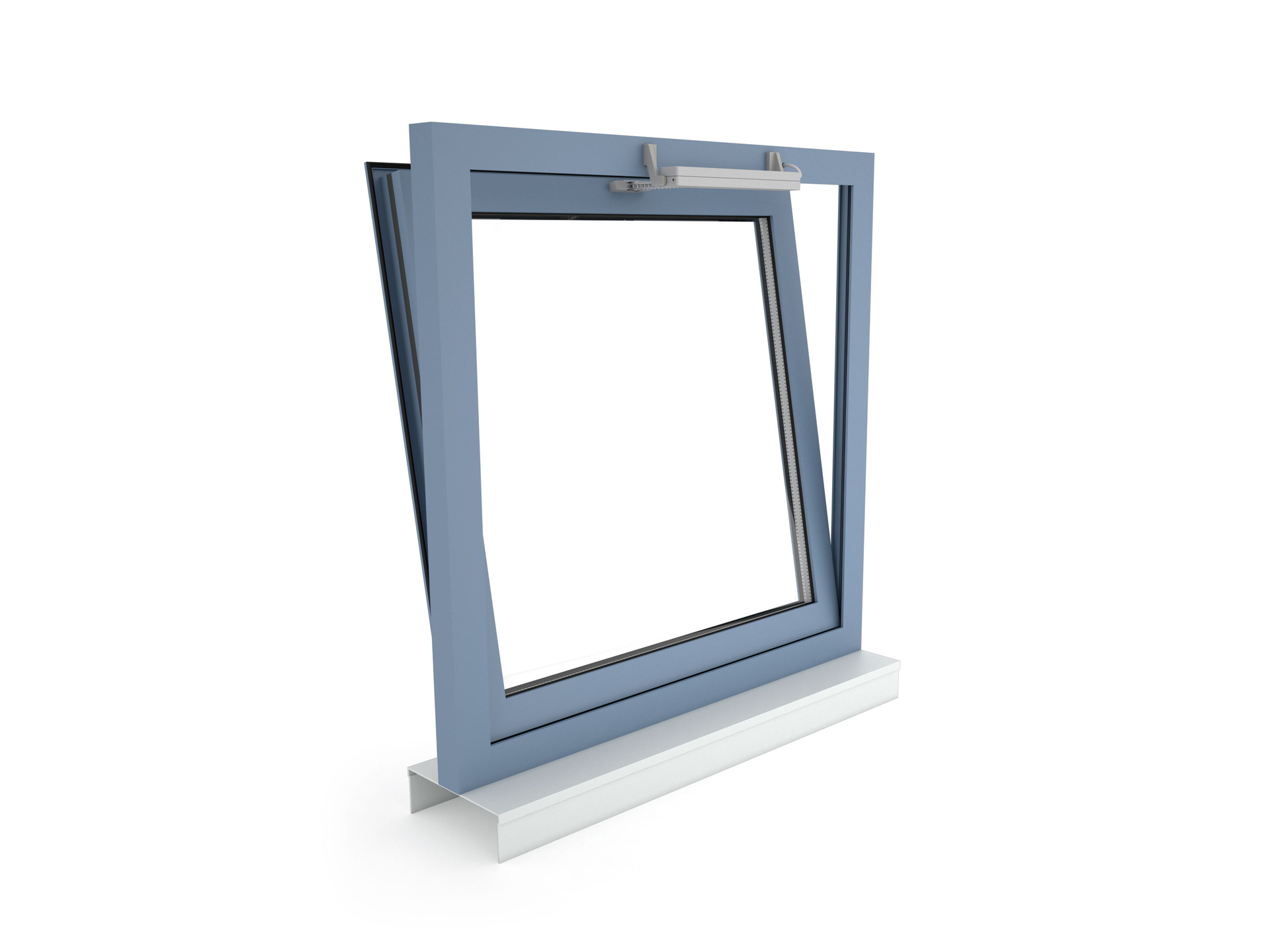

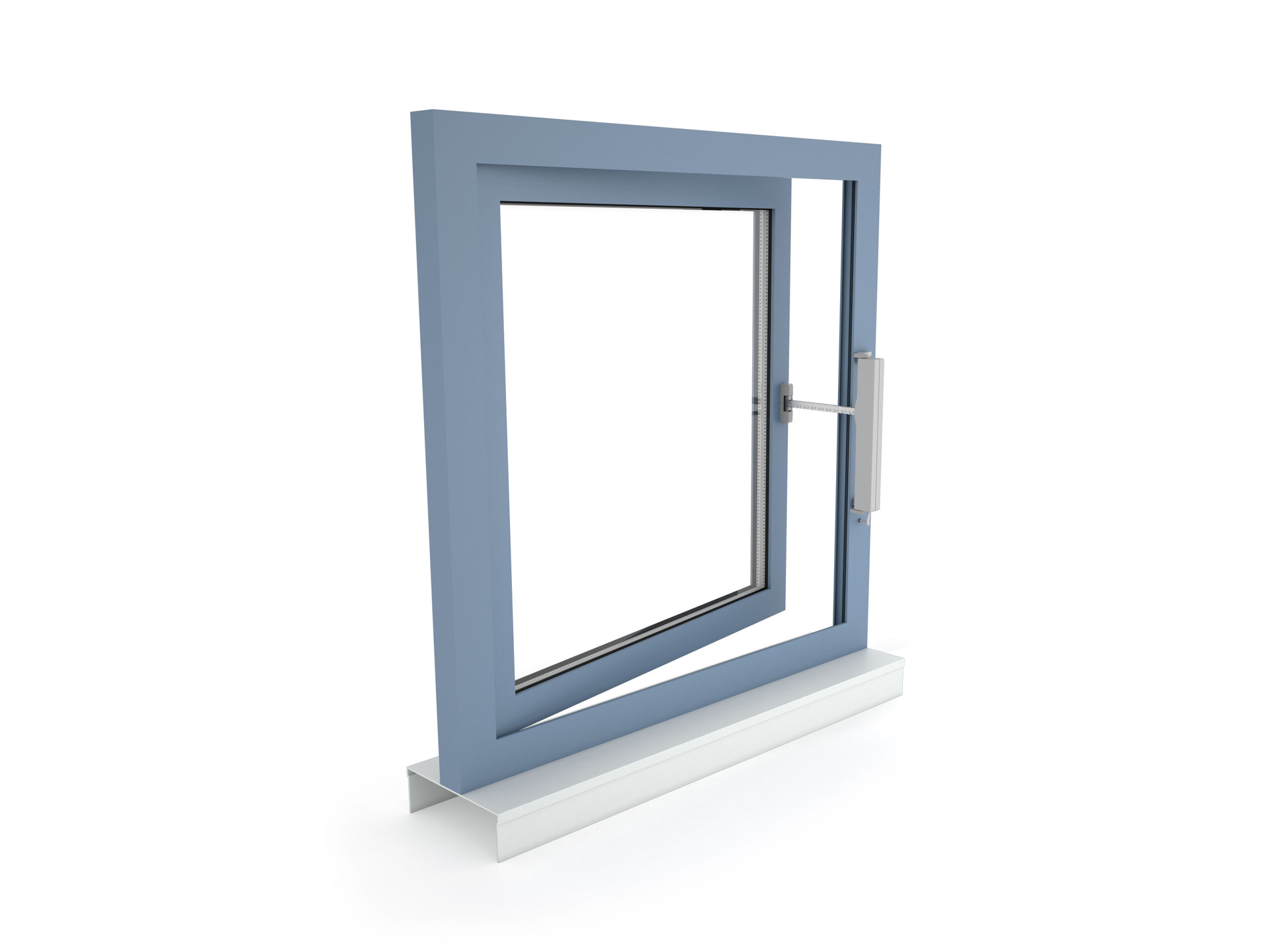

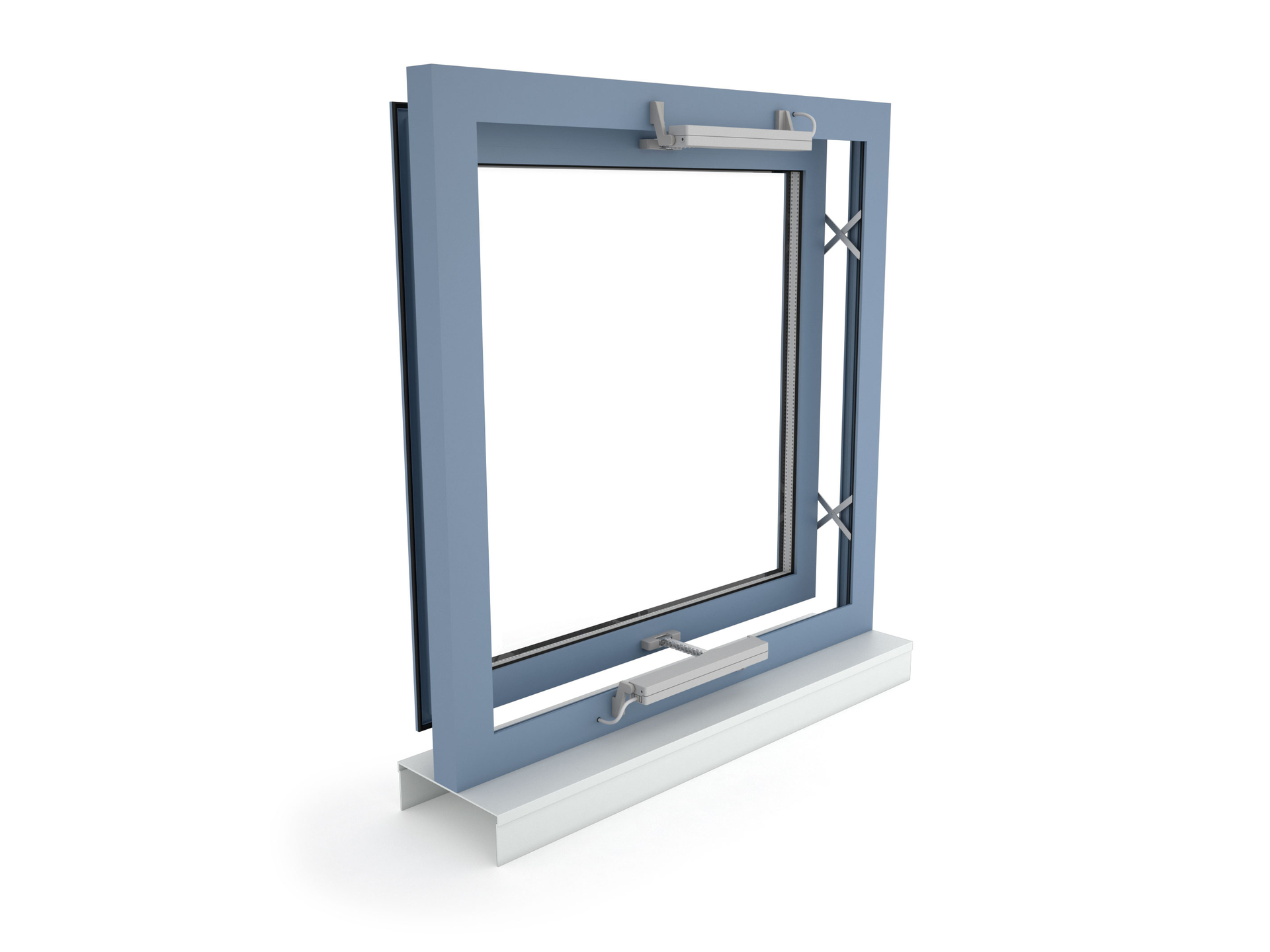

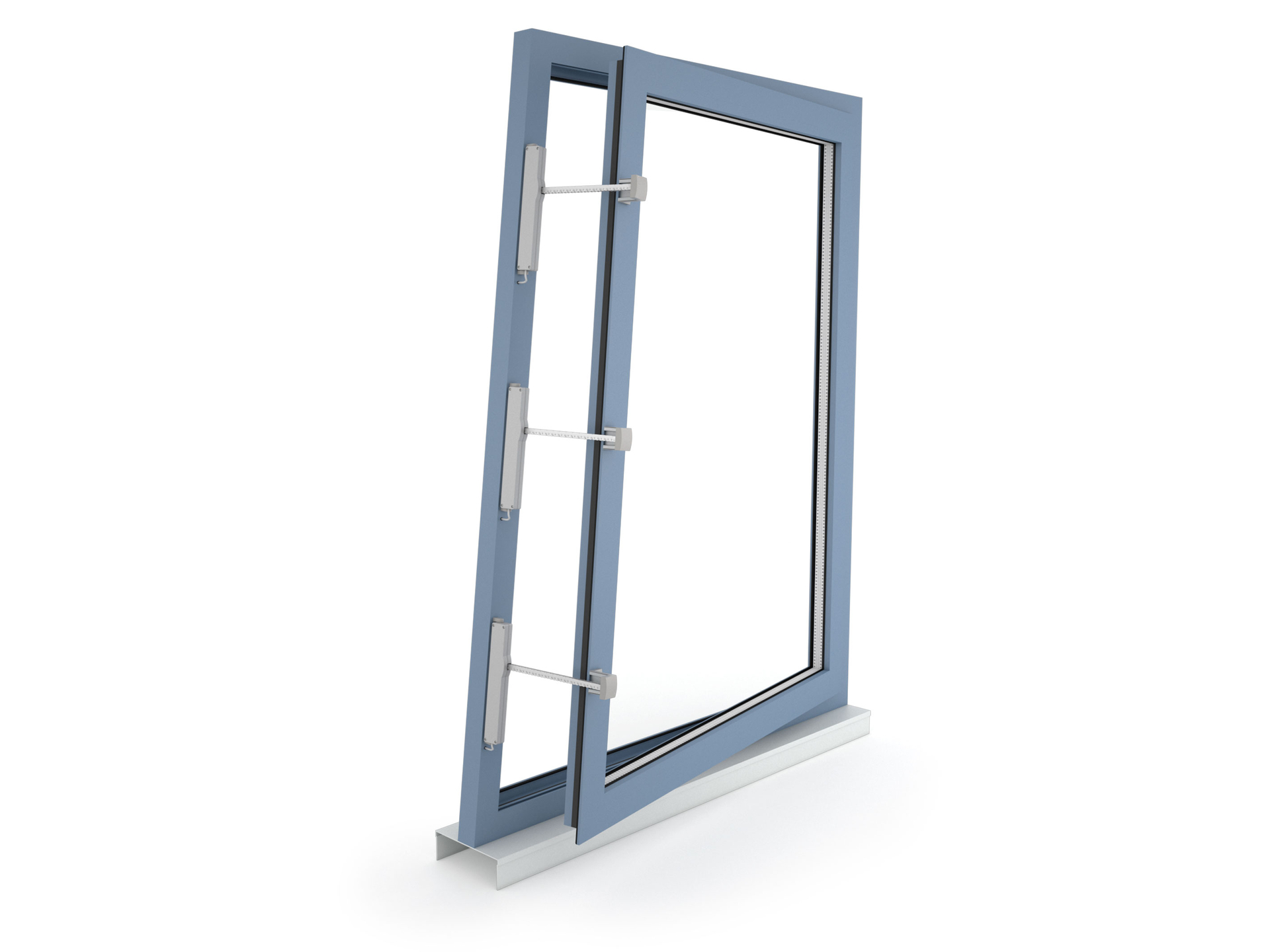

Can be used for practically all types of window openings
The drive is suitable for surface mounting on the window sash or frame
Thanks to universal brackets, the drive is compatible with almost all available types of system profiles incl. Aluprof, Colt, Gutmann, Heroal, Jet-Brakel, Raico, Reynaers, Sapa, Schüco, Skandinaviska, Technal, Wicona

Gallery

Downloads

Technical data

	VCD 203
Power supply	24 V DC / ±20 % / 0.35 A
Duty cycle	30 % (ON: 3 min. / OFF: 7 min.)

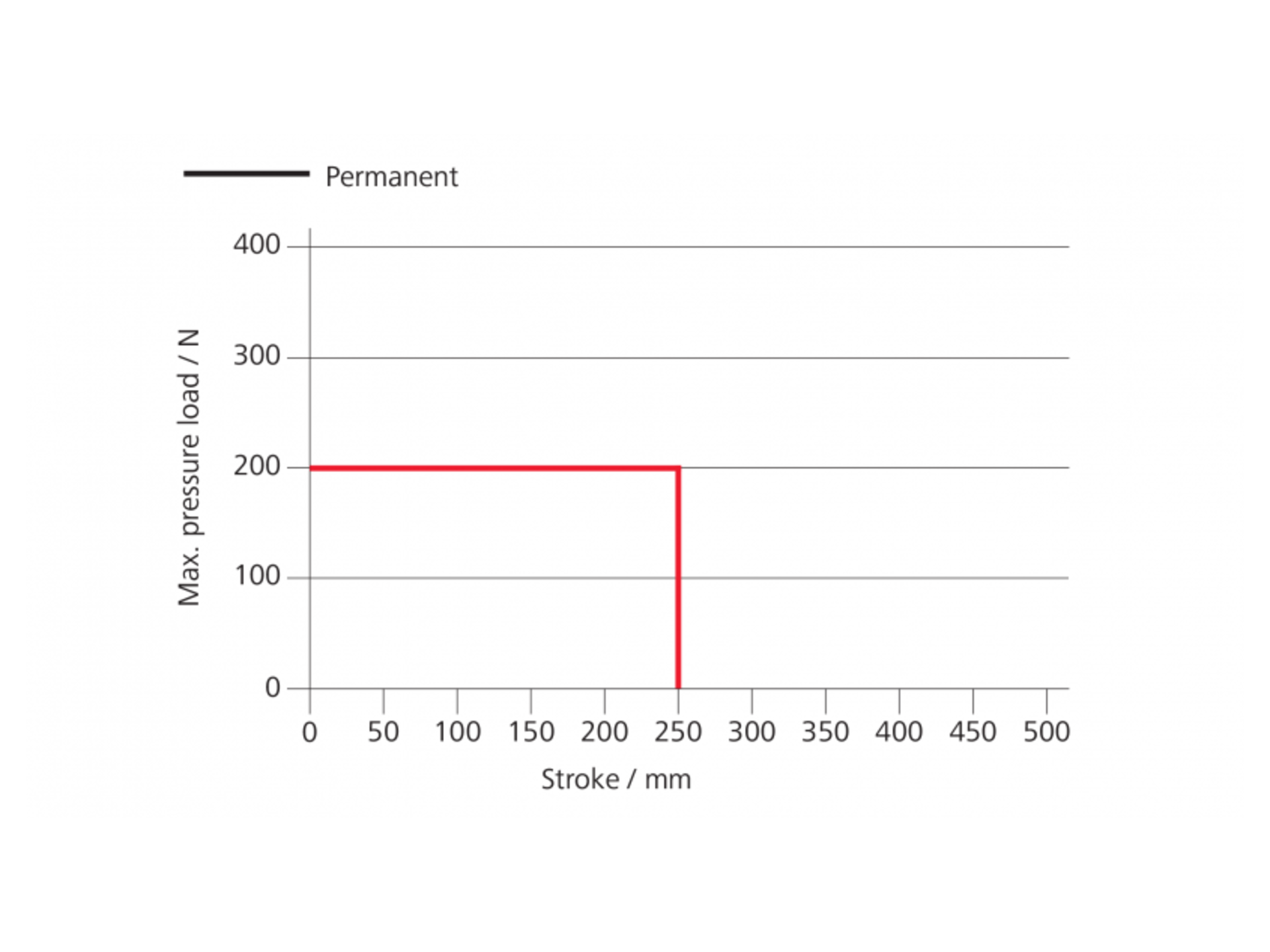

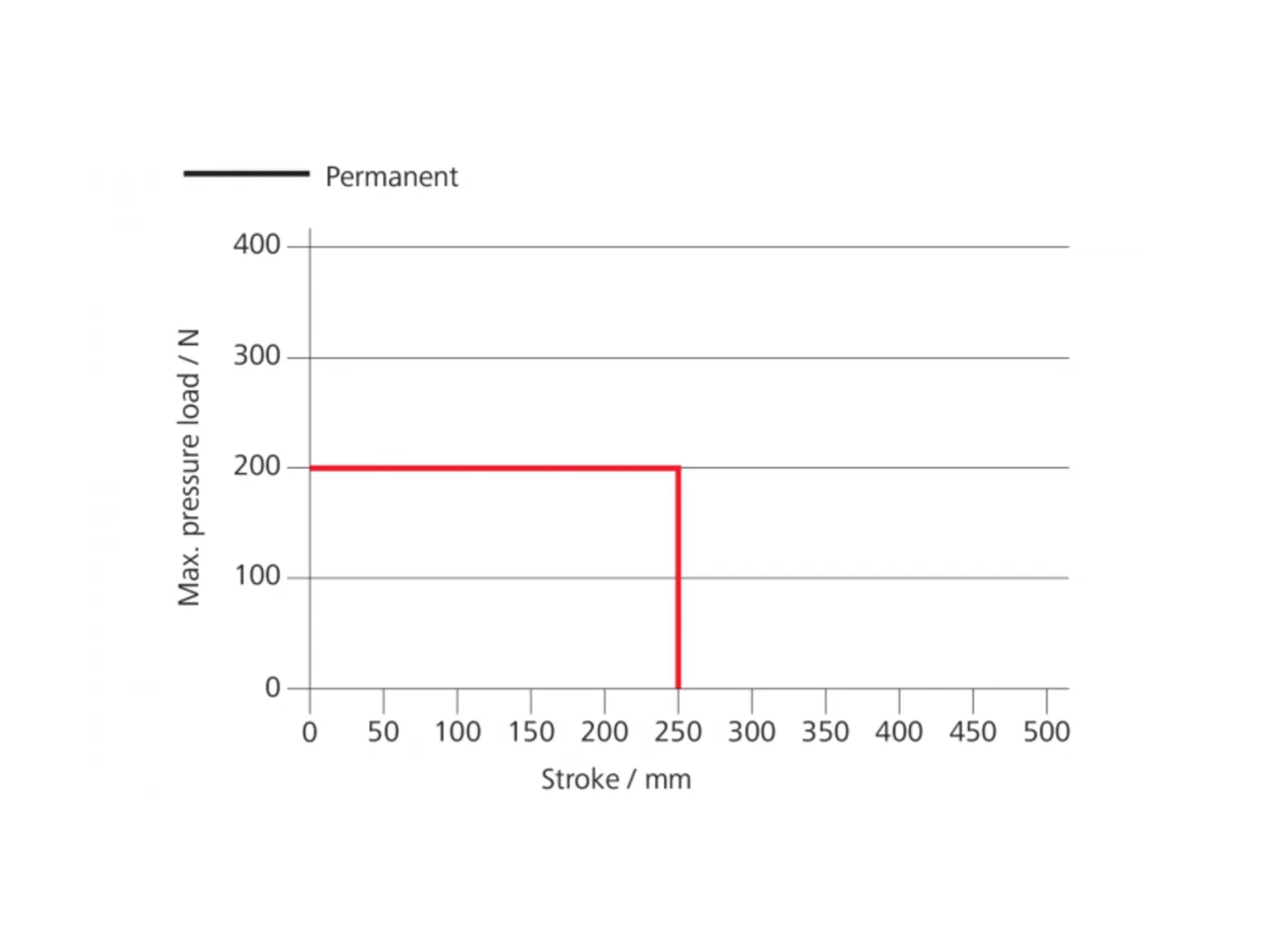

Push force	200 N
Pull force	200 N
Nominal locking force **	2000 N / 4000 N ***
Service life	20 000 double strokes *
Stroke	250 mm
Opening speed	6 mm/s
Closing speed	6 mm/s
Protection rating	IP 30
Emission sound pressure level	LpA ≤ 46 dB(A)
Temperature range	0 °C ... +60 °C
Material	die-cast zinc
Surface finish	powder coating
Colour	White aluminium (~ RAL 9006)
Connection	2.5 m PVC cable

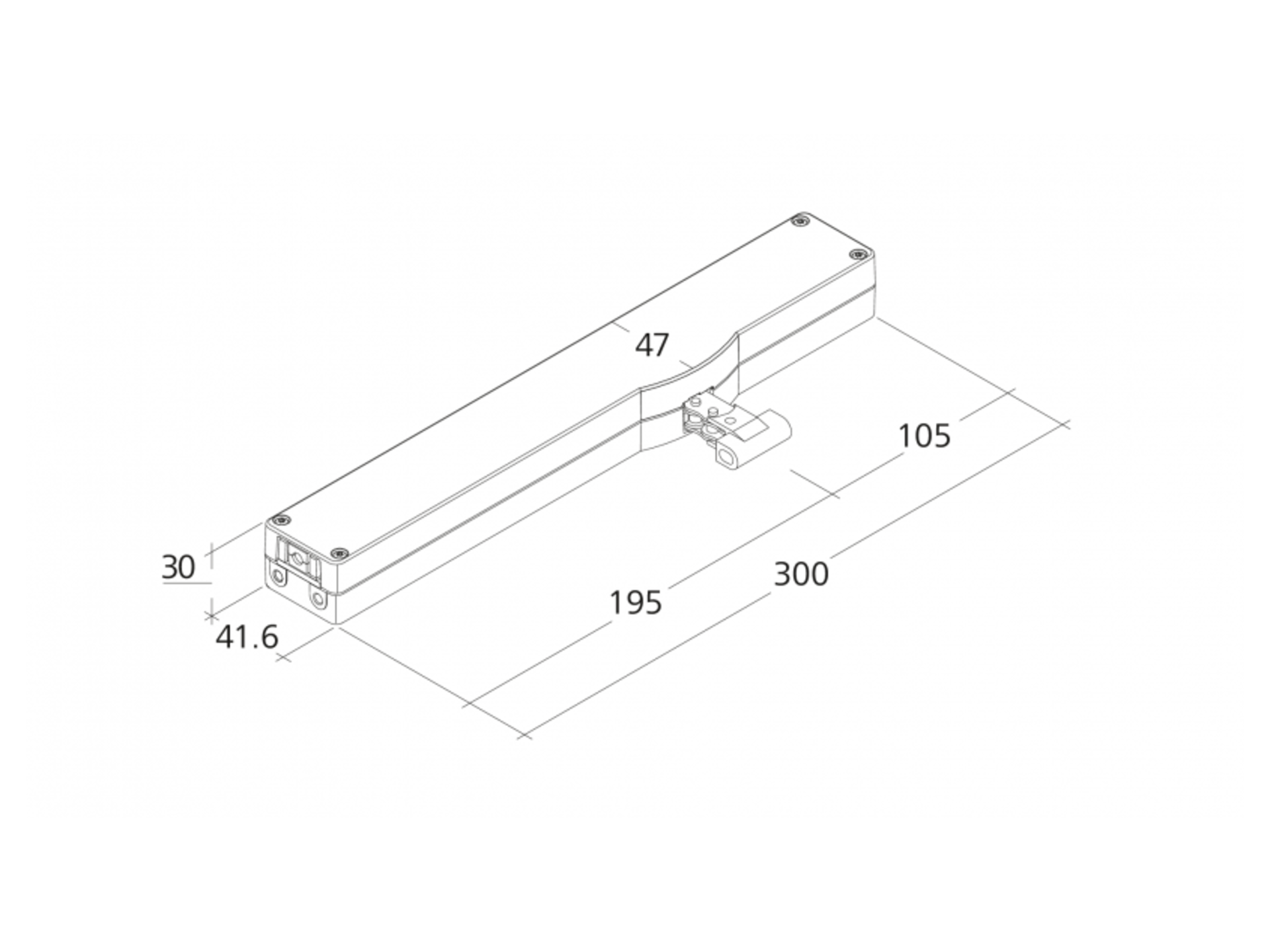

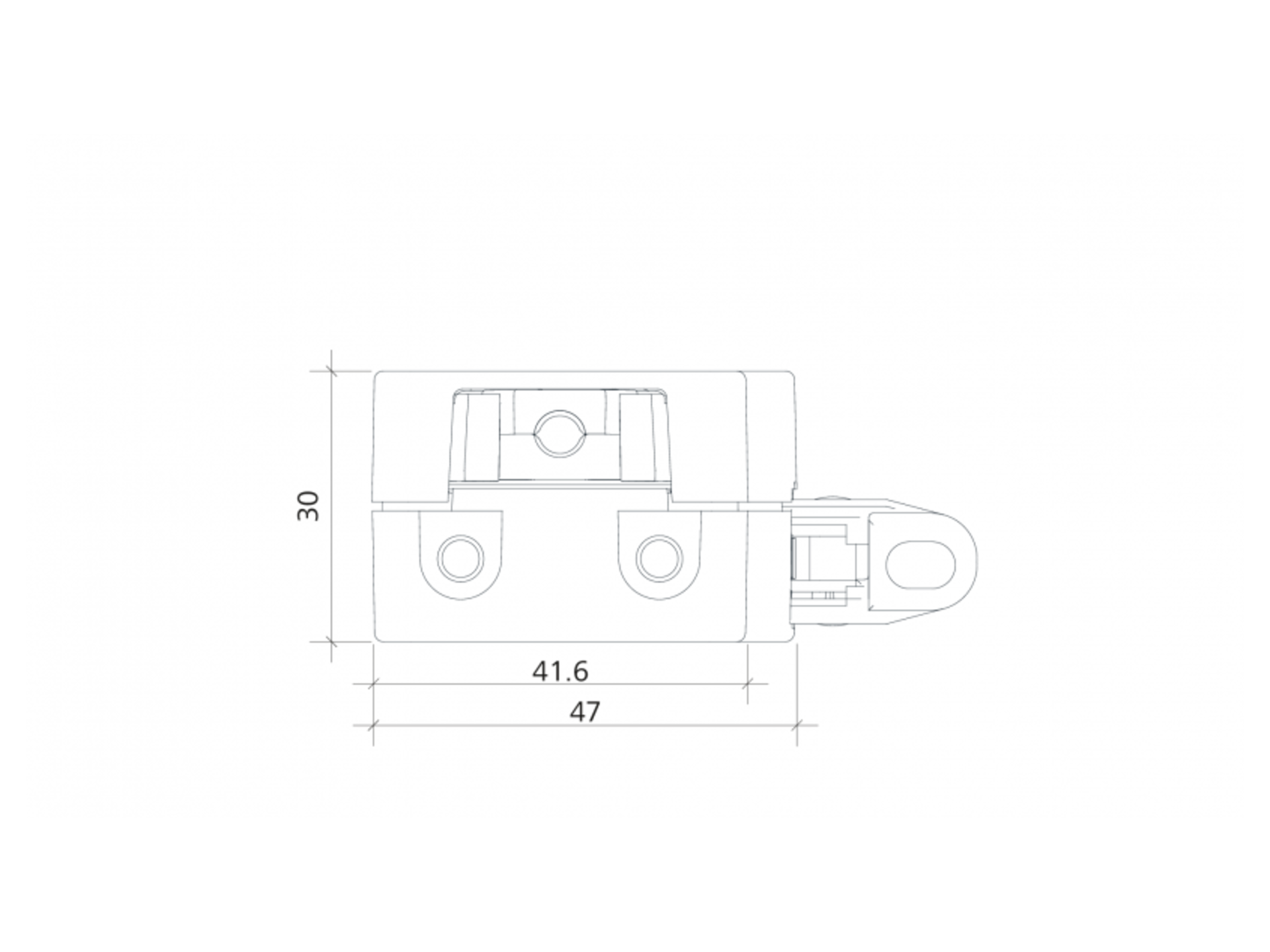

W x H x D	300 x 30 x 47 mm
Weight	1.40 kg

* For vertical use, consult a specialist from our company.
** Depending on the anchoring method.
*** Optionally increased nominal locking force

Optional extras

Function programming
The option of configuring drive parameters (e.g. the stroke) individually using software and the related service tools, for drives fitted with PLP, BSY or BSY+ electronics.
SGI signal (position reporting)
In combination with the D+H servo plug-in unit SE 622 or the BSY gateway BSY-GW-024-010-U, drives can be controlled with precise positioning.
End position signal (OPEN / CLOSED)
Feedback from the drive via an integrated potential-free switching contact. It is given when the chain drive or linear drive has fully extended or retracted.
