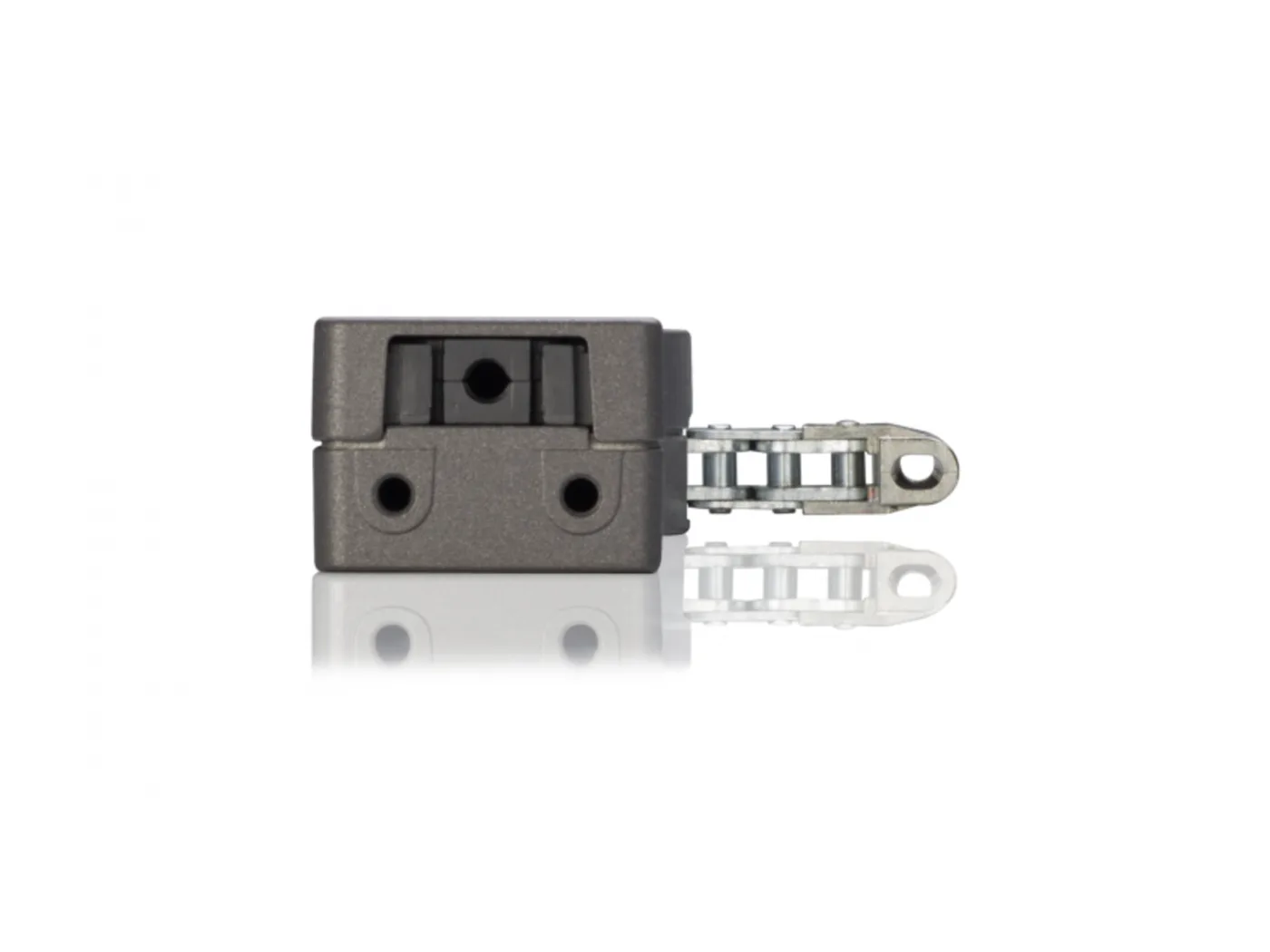

VCD 204

AFFORDABLE DAILY VENTILATION DRIVE

Category:

Natural ventilation

The big brother of the VCD 203: the VCD 204 chain drive provides a daily supply of fresh air through windows that open up to 350 mm. An aesthetic solution for the reliable opening and closing of façade and roof windows.

Features

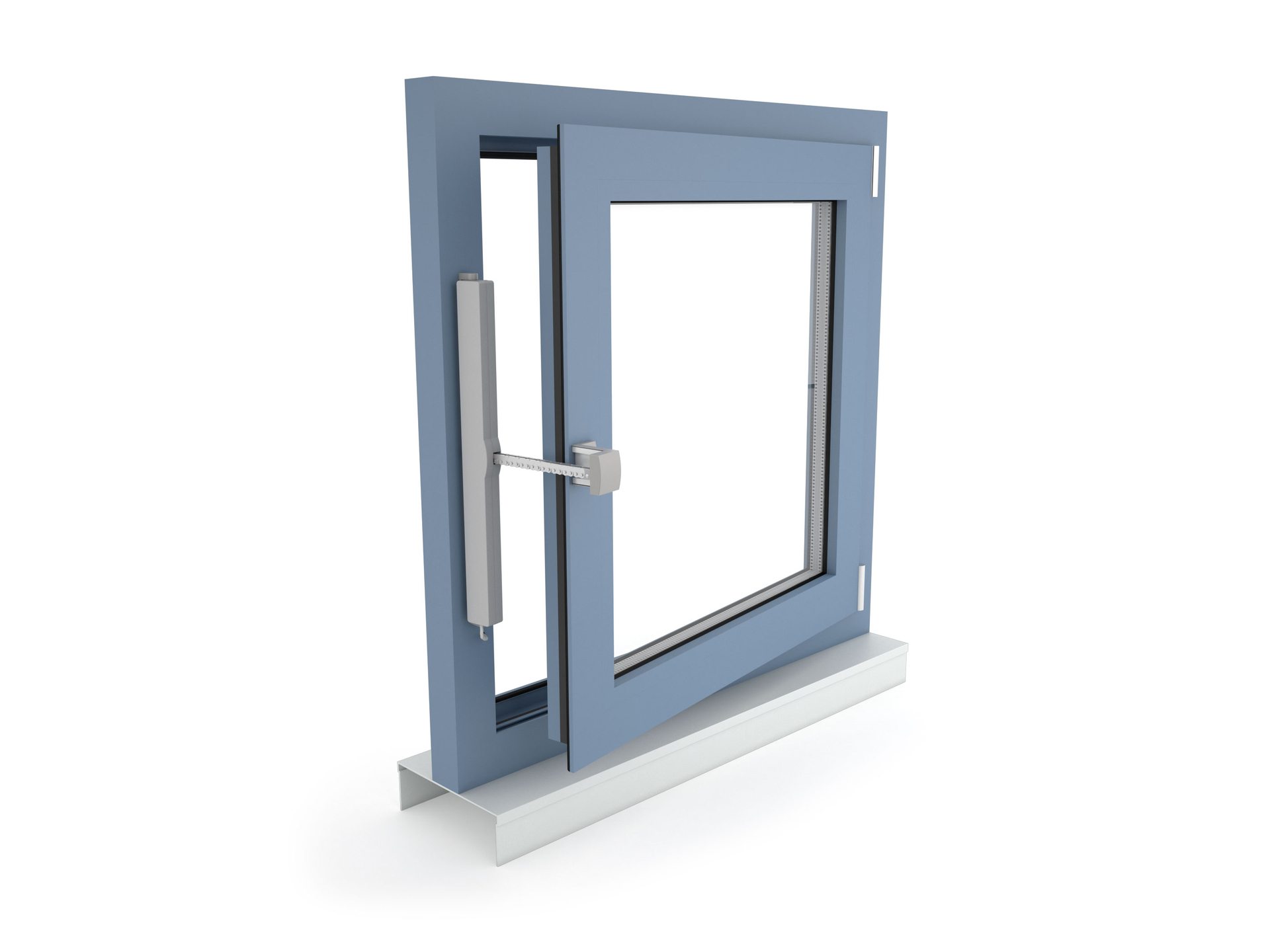

For façade windows, roof windows and ventilation flaps in winter gardens.
With microprocessor-controlled motor electronics
Special chain stabilisation and centred chain output

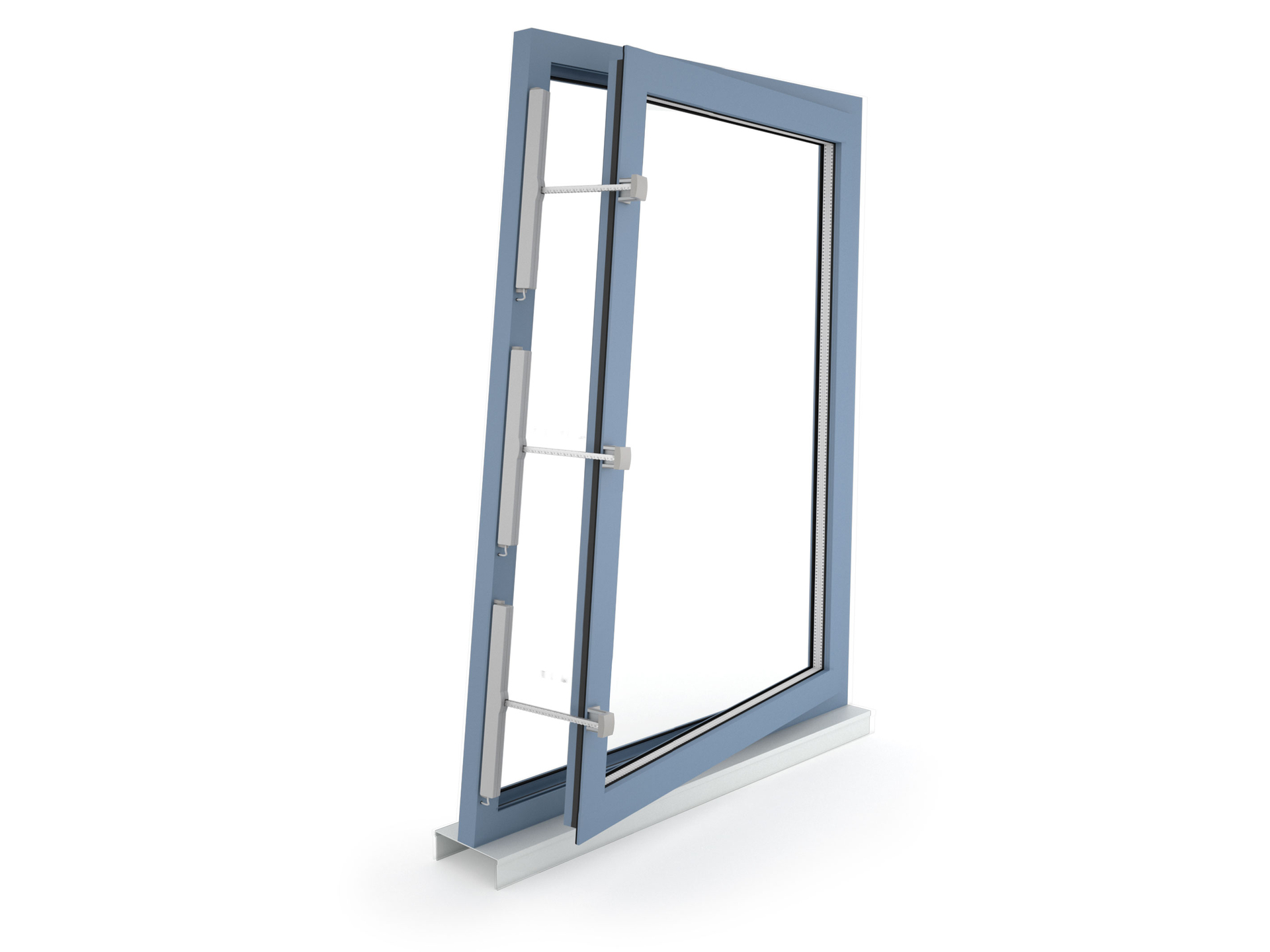

"TMS+" safety function for operating 2 drives on one sash
The chain stroke can be programmed using a magnet
The reprogrammed opening stroke is transferred to the tandem drive
Simple connection via connector
Programmable drive functions and various drive parameters
Travel speed in the CLOSE direction drops to 5 mm/s (passive closing edge protection)
Timed reversing when an obstacle is detected in the CLOSE direction (active closing edge protection).
Available in any RAL shade

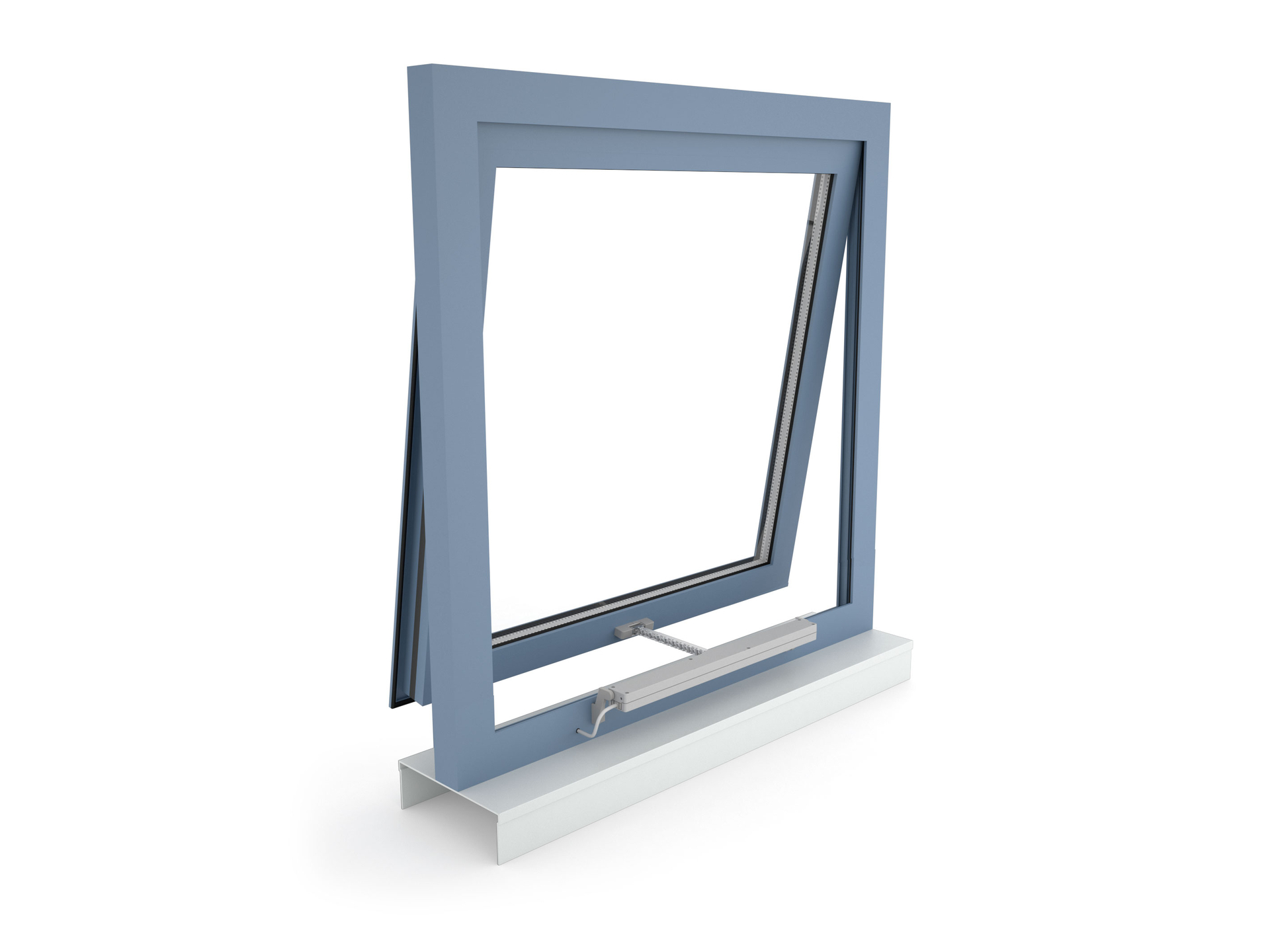

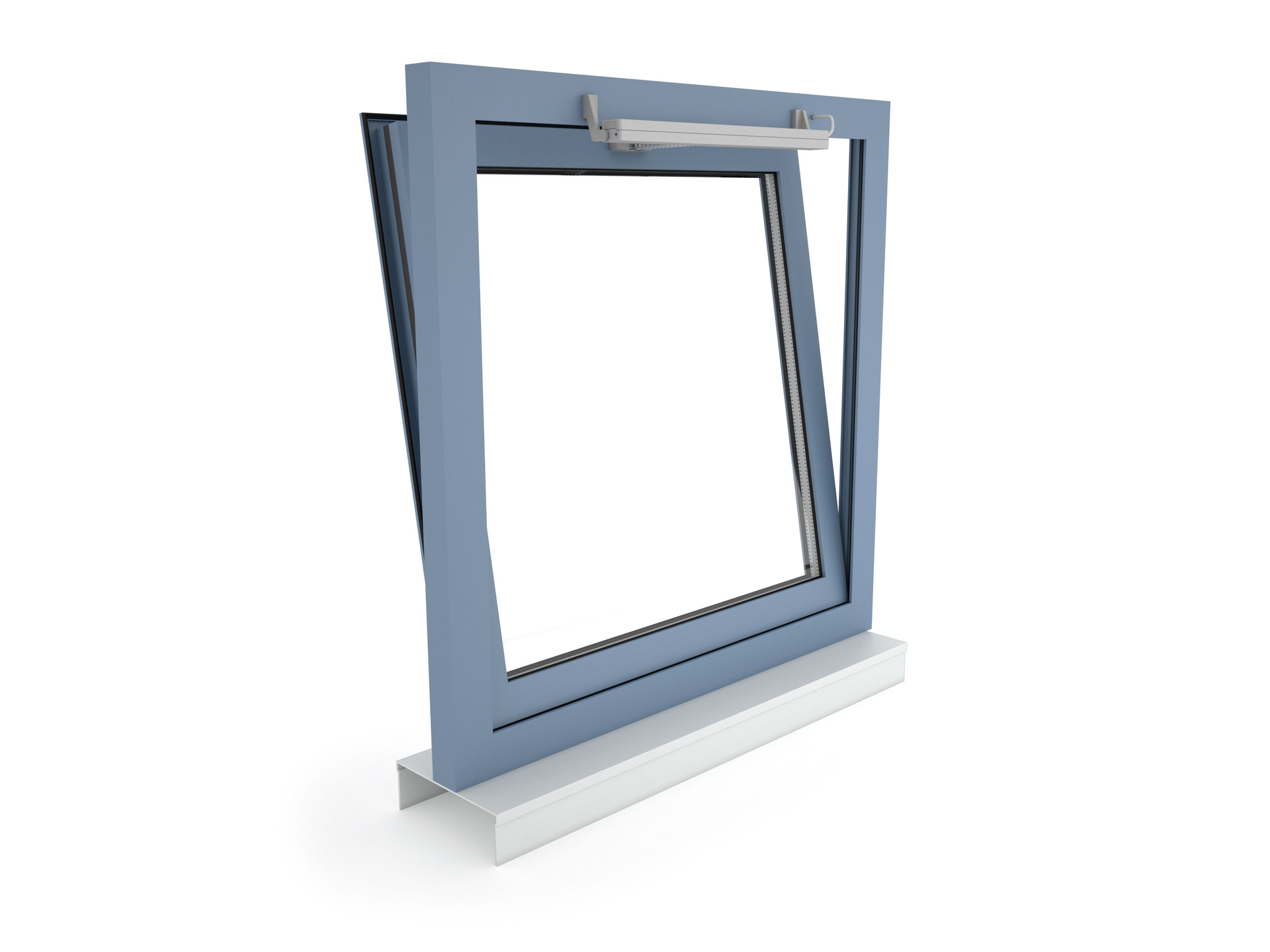

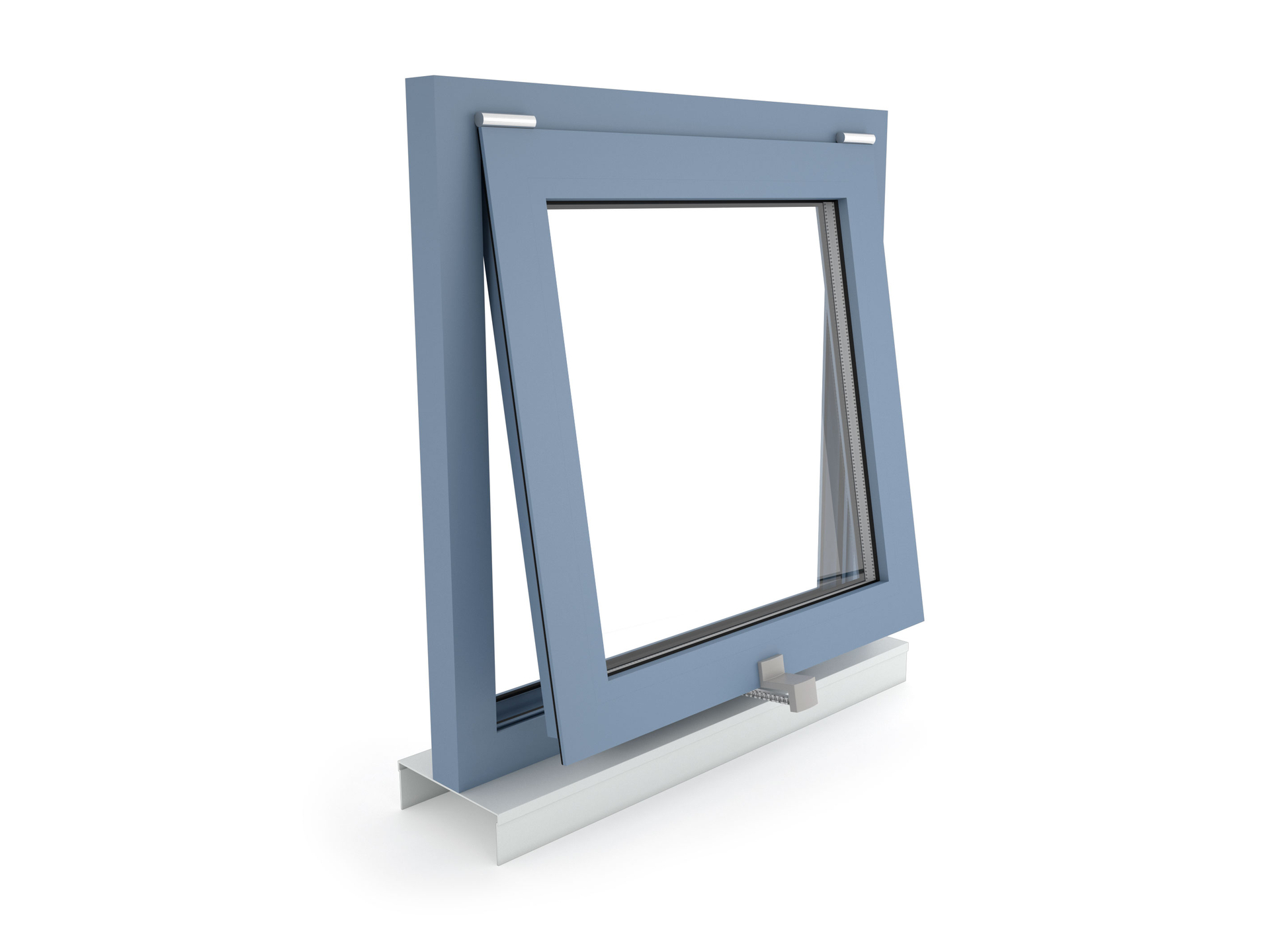

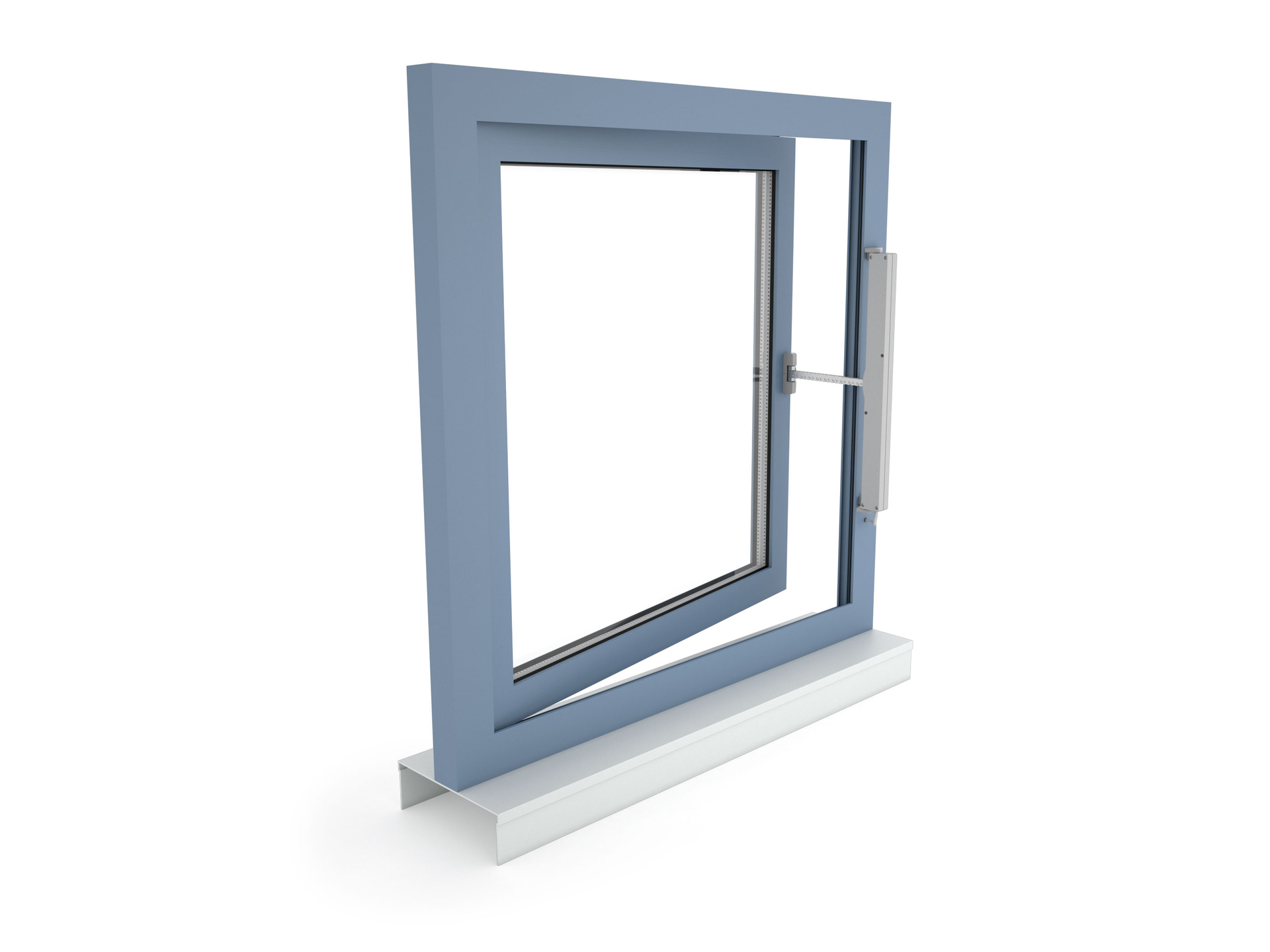

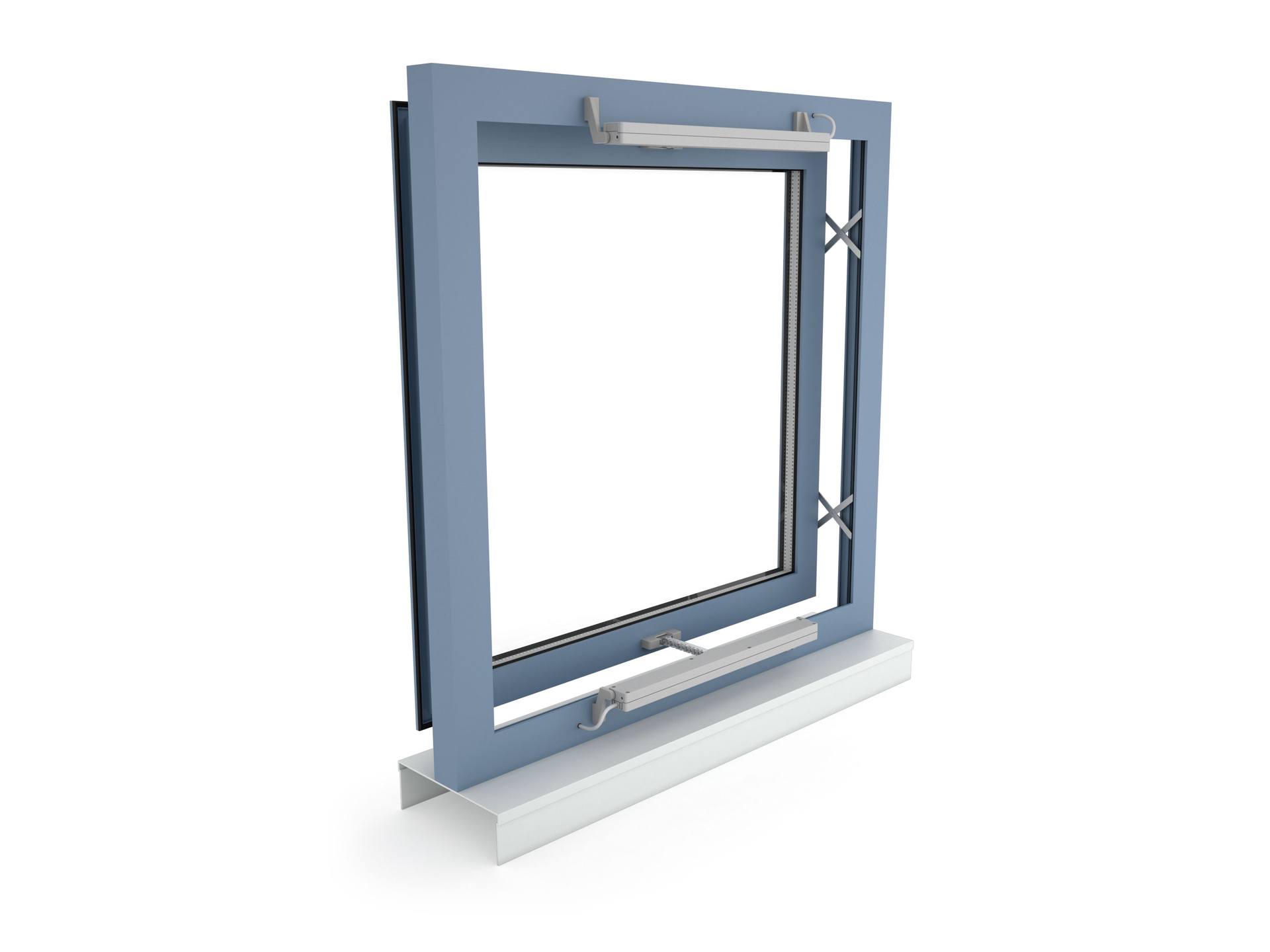

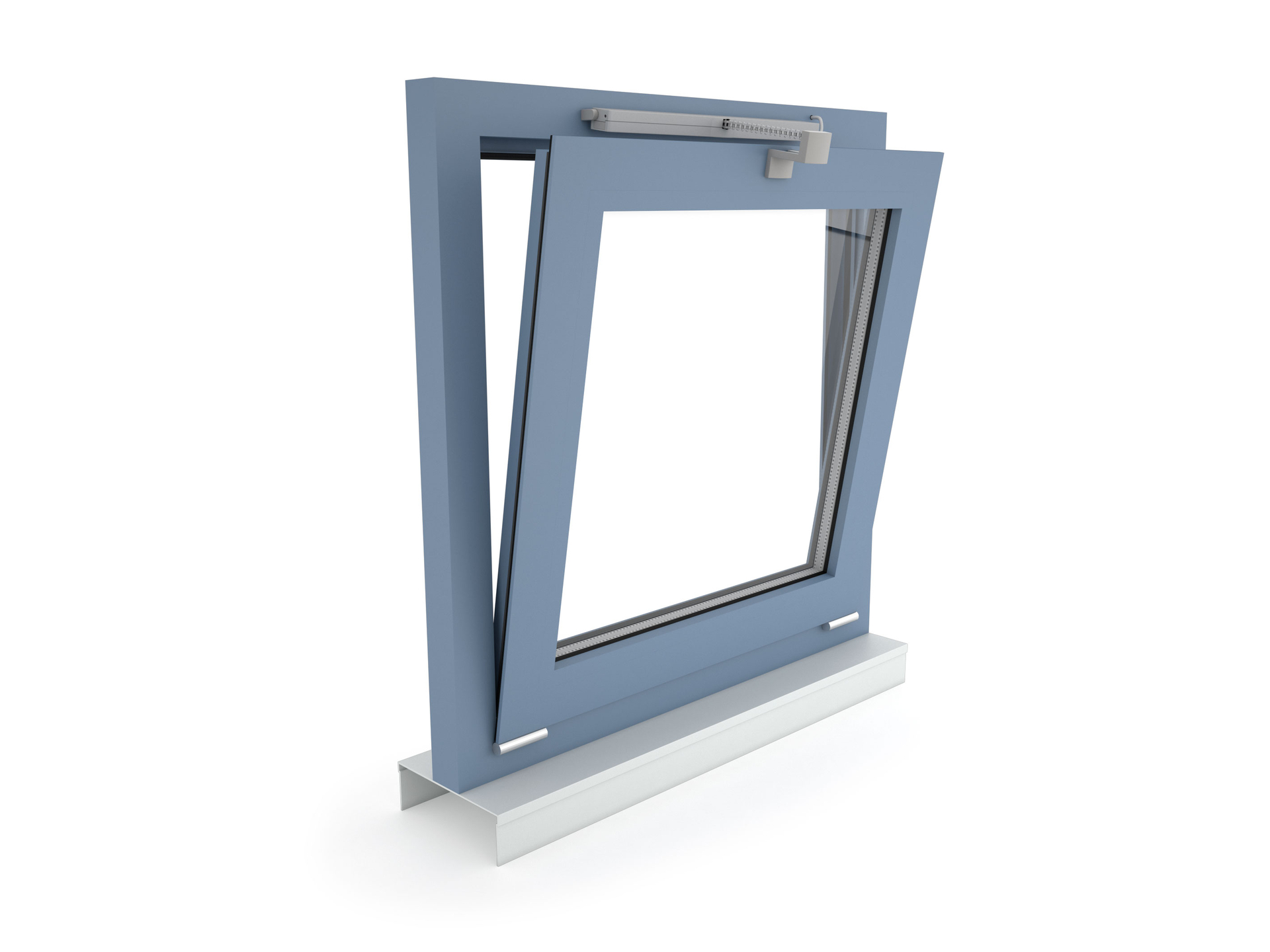

Can be used for practically all types of window openings
The drive is suitable for surface mounting on the window sash or frame
Thanks to universal brackets, the drive is compatible with almost all available types of system profiles incl. Aluprof, Colt, Gutmann, Heroal, Jet-Brakel, Raico, Reynaers, Sapa, Schüco, Skandinaviska, Technal, Wicona

Gallery

Downloads

Technical data

	VCD 204	VCD 204-TMS+ Set
Power supply	24 V DC / ±20 % / 0.35 A	24 V DC / ±20 % / 0.35 A
Duty cycle	30 % (ON: 3 min. / OFF: 7 min.)	30 % (ON: 3 min. / OFF: 7 min.)

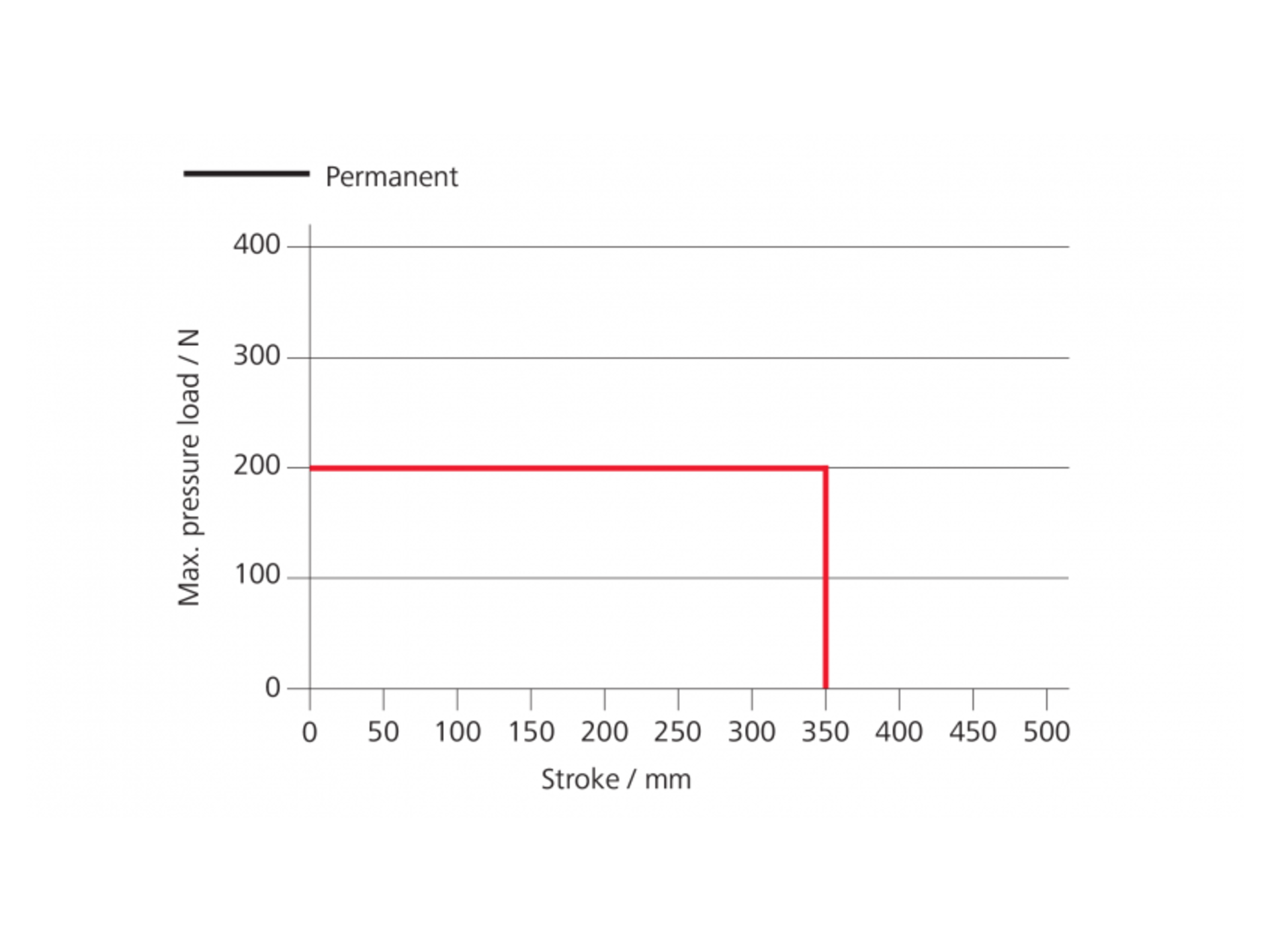

Push force	200 N	200 N
Pull force	200 N	200 N
Nominal locking force **	2000 N	2000 N
Service life	20 000 double strokes *	20 000 double strokes *
Stroke	250 - 350 mm	250 - 350 mm
Opening speed	6 mm/s	6 mm/s
Closing speed	6 mm/s	6 mm/s
Protection rating	IP 30	IP 30
Emission sound pressure level	LpA ≤ 46 dB(A)	LpA ≤ 46 dB(A)
Temperature range	0 °C ... +60 °C	0 °C ... +60 °C
Material	die-cast zinc	die-cast zinc
Surface finish	powder coating	powder coating
Colour	White aluminium (~ RAL 9006)	White aluminium (~ RAL 9006)
Connection	2.5 m PVC cable	2.5 m PVC cable

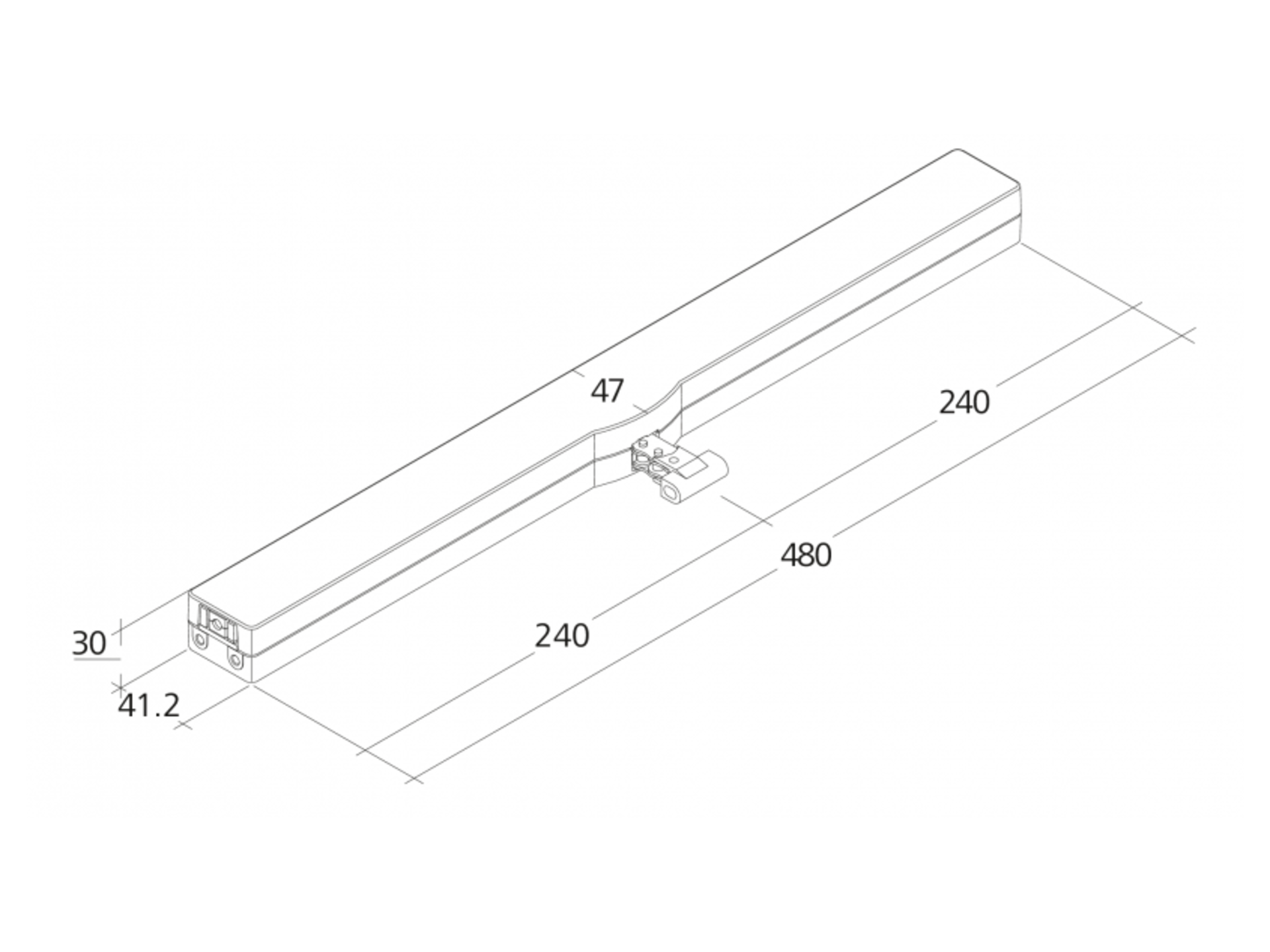

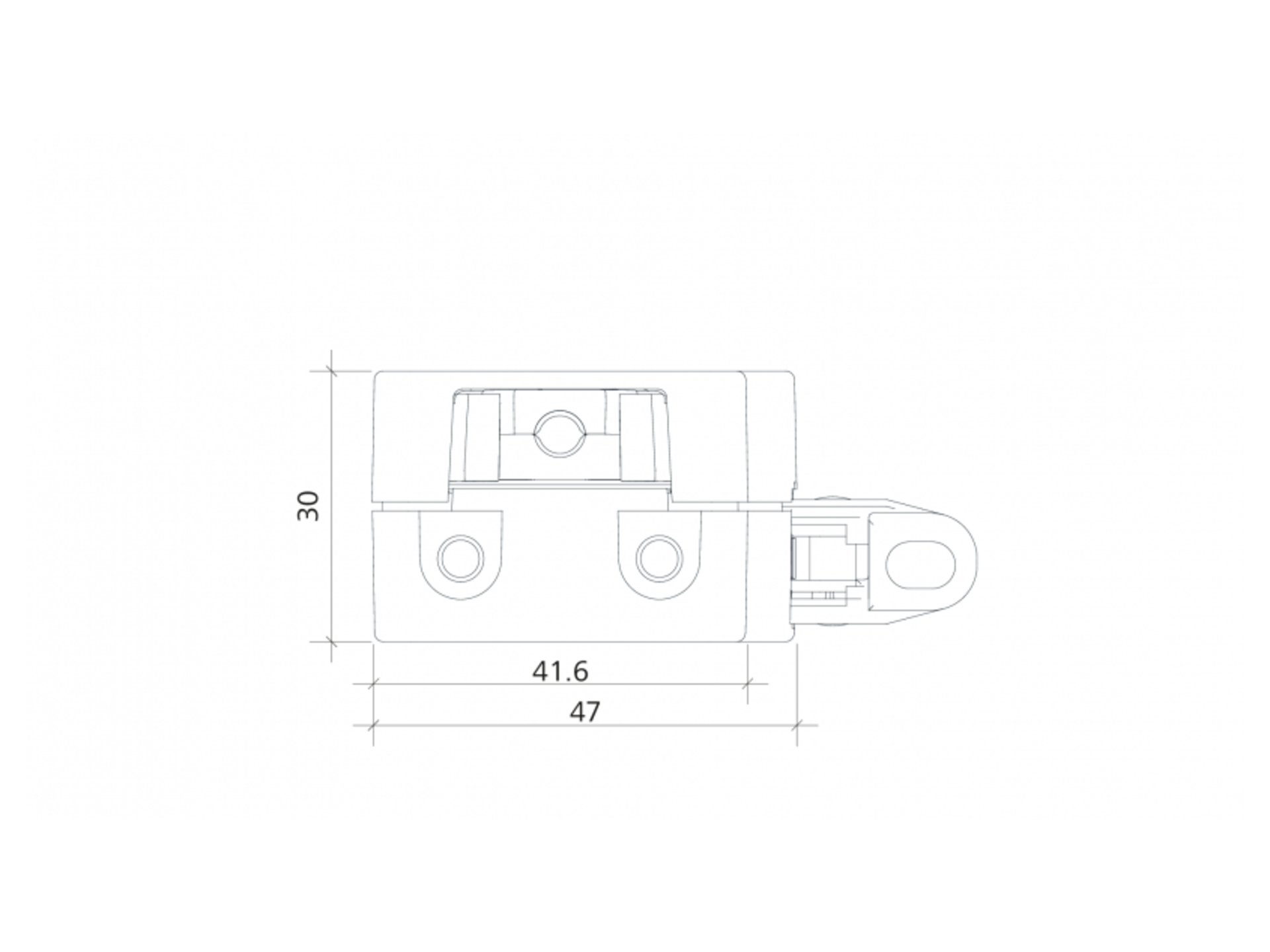

W x H x D	480 x 30 x 47 mm	480 x 30 x 47 mm
Weight	1.50 kg	1.50 kg

* For vertical use, consult a specialist from our company.
** Depending on the anchoring method.

Optional extras

Function programming
The option of configuring drive parameters (e.g. the stroke) individually using software and the related service tools, for drives fitted with PLP, BSY or BSY+ electronics.
SGI signal (position reporting)
In combination with the D+H servo plug-in unit SE 622 or the BSY gateway BSY-GW-024-010-U, drives can be controlled with precise positioning.
SKS (closing edge protection)
An optional function that allows an “anti-trap” safety edge or a presence detector to be connected directly to the drive (terminating resistor 5.6 kΩ).
End position signal (OPEN / CLOSED)
Feedback from the drive via an integrated potential-free switching contact. It is given when the chain drive or linear drive has fully extended or retracted.

Certificates and approvals

Dekra
