  • VCM 05U

VCM 05U

MINIATURE DAILY VENTILATION CONTROL UNIT
Category:

A flush-mounted control panel for controlled natural ventilation: the VCM 05U can be operated using buttons as well as wind and rain signals.

VCM 05U

Features

  • Compact daily ventilation control unit
  • Total drive current up to 0.5 A
  • 1 ventilation group
  • Ventilation safety function (saves OPEN / CLOSE position)
  • Optional connection to rain detectors or wind/rain detectors without an additional module.
  • Flush-mounted installation in a deep Ø 58 mm electrical box

Gallery

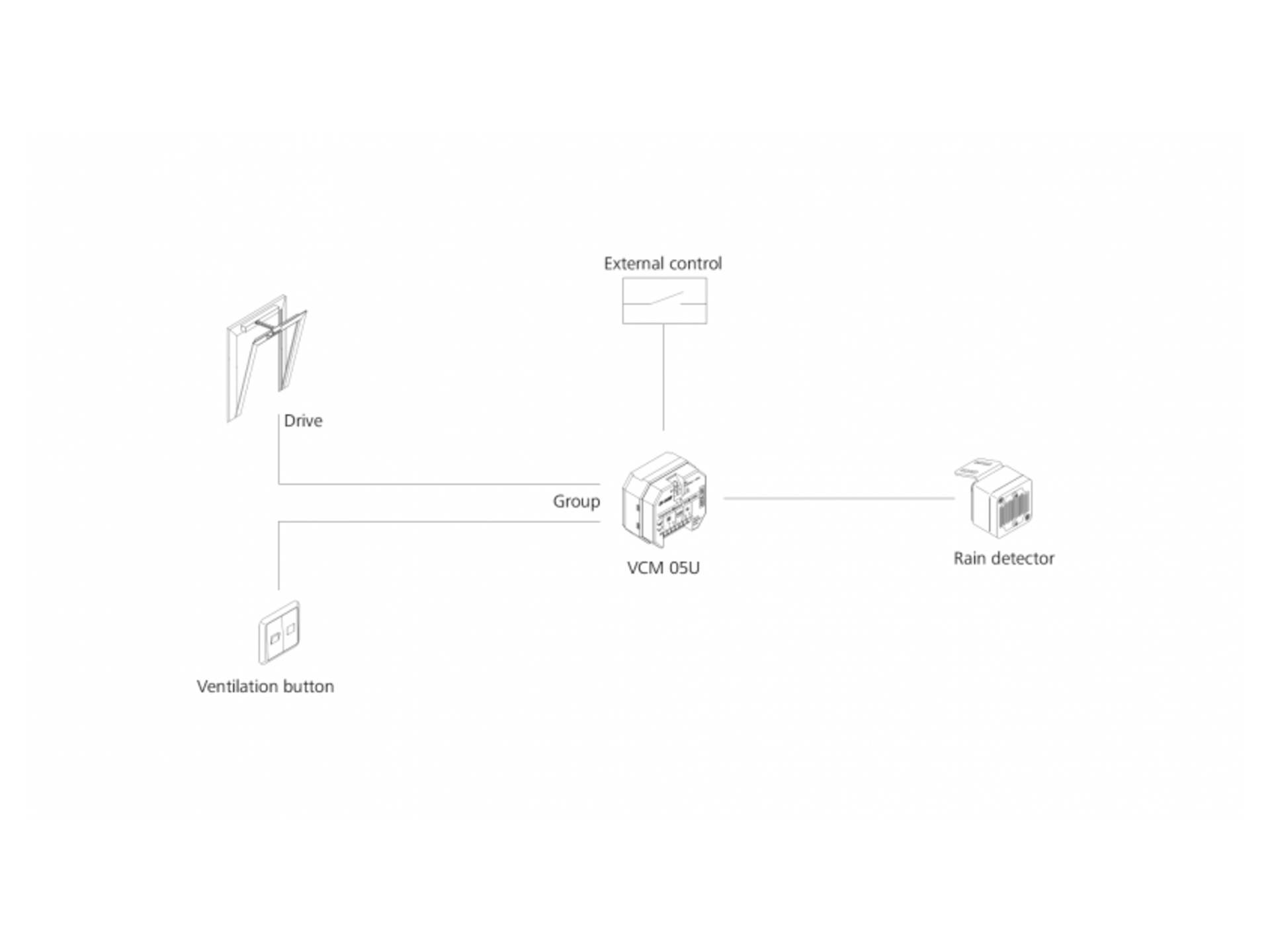

VCM 05U - Wiring diagram
VCM 05U - Wiring diagram (PNG, ~374 KB)

Downloads

Technical data

VCM 05U
Input voltage 230 V AC
Input frequency 50 Hz
Power 15 VA
Output voltage 24 V DC
Output current 0.5 A
Number of groups 1
Operating mode SHEV / daily ventilation short-term operation 20% duty cycle
Protection rating IP 30
Temperature range 0 °C ... +50 °C
Material Plastic
Colour Light grey (~ RAL 7035)
W x H x D 50 x 48 x 28 mm
Weight 0.13 kg
