  • VLD 51-BSY+

VLD 51-BSY+

LINEAR WINDOW LOCKING DRIVE INCL. SYNCHRONISATION
Category:

Our VLD 51-BSY+ electric lock is a true security expert. Like the VLD 51, it can be integrated into the window profile. Thanks to BSY+ technology, up to 6 of these drives can be synchronised, making it possible to lock larger windows too.

VLD 51-BSY+

Features

  • Can be used for smoke exhaust openings, D+H Euro SHEV to EN 12101-2, and for daily ventilation.
  • With microprocessor-controlled motor electronics for communication and sequential control of connected BSY+ window opening drives.
  • Up to 6 VLD BSY+ drives can be used on a single window
  • For operating standard perimeter window hardware
  • VP signal for connected BSY+ window opening drives
  • Programmable drive functions and various drive parameters
  • Manual emergency unlocking option
  • Configurable locking direction on the drive
  • Increased protection against break-in
  • Available in any RAL shade
  • Can be used for practically all types of window openings with perimeter hardware
  • Thanks to a standardised shaft, the drive is compatible with almost all available types of windows incl. Aluprof, Colt, Gutmann, Heroal, Jet-Brakel, Raico, Reynaers, Sapa, Schüco, Skandinaviska, Technal, Wicona, etc.

Gallery

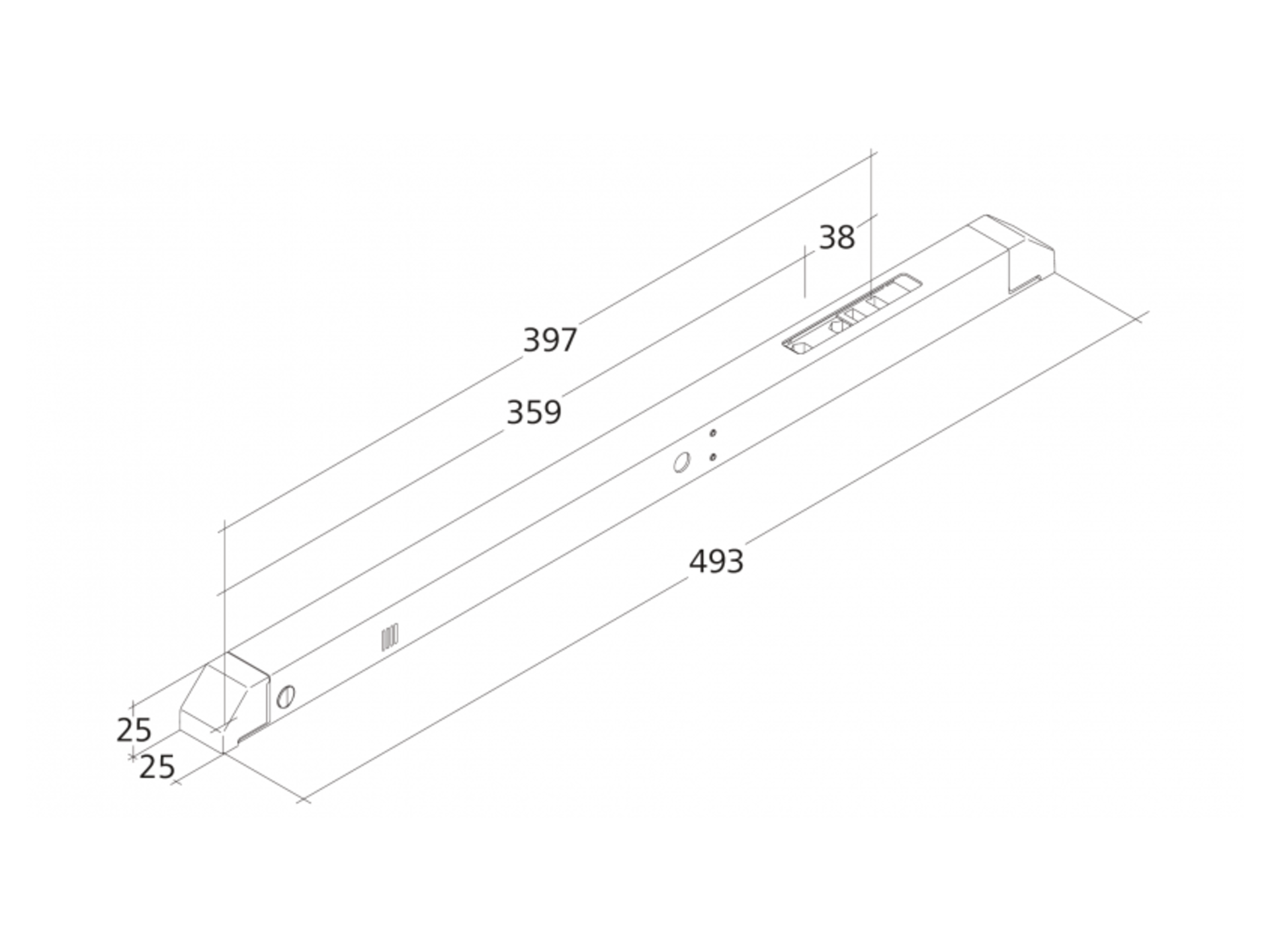

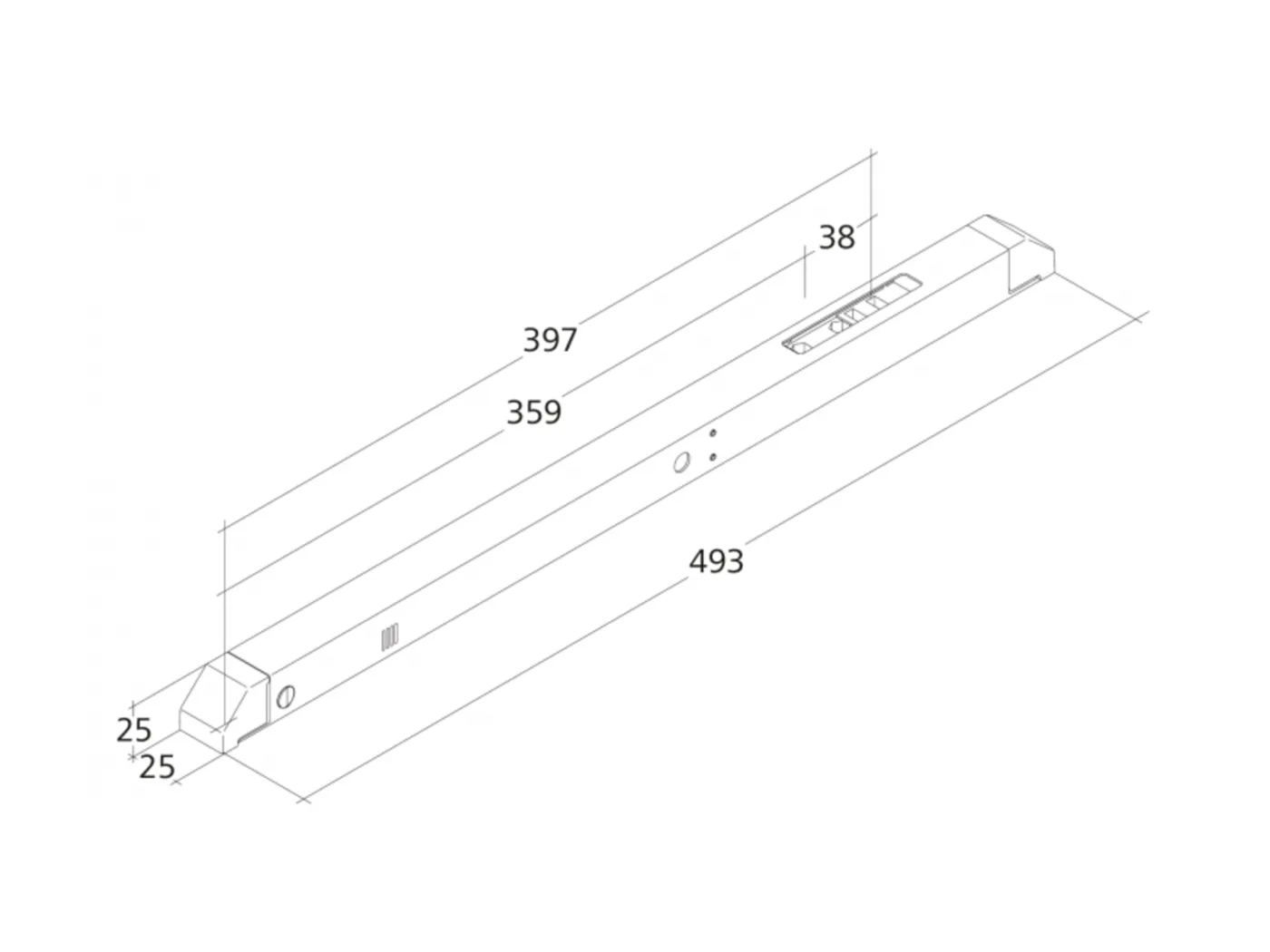

VLD 51-BSY+ - Dimensions
VLD 51-BSY+ - Dimensions (PNG, ~501 KB)

Downloads

Technical data

VLD 51-BSY+
Power supply 24 V DC / ±20 %
Duty cycle 30 % (ON: 3 min. / OFF: 7 min.)
Rated input current 1 A
Locking force 500 N
Breakaway force 1 000 N *
Service life > 10 000 cycles
Opening speed (daily ventilation) 3.3 mm/s
Opening speed (SHEV) 4.2 mm/s
Closing speed 3.3 mm/s
Protection rating IP 50
Emission sound pressure level LpA ≤ 70 dB(A)
Temperature range -15 °C (-5 °C **) ... +75 °C
Fire resistance B300 (30 min / 300 °C)
Material stainless steel V2A
Connection 2.5 m silicone cable
W x H x D 493 x 25 x 25 mm
Weight 1.20 kg
