FK SMOKE

STATIC SMOKE BARRIER

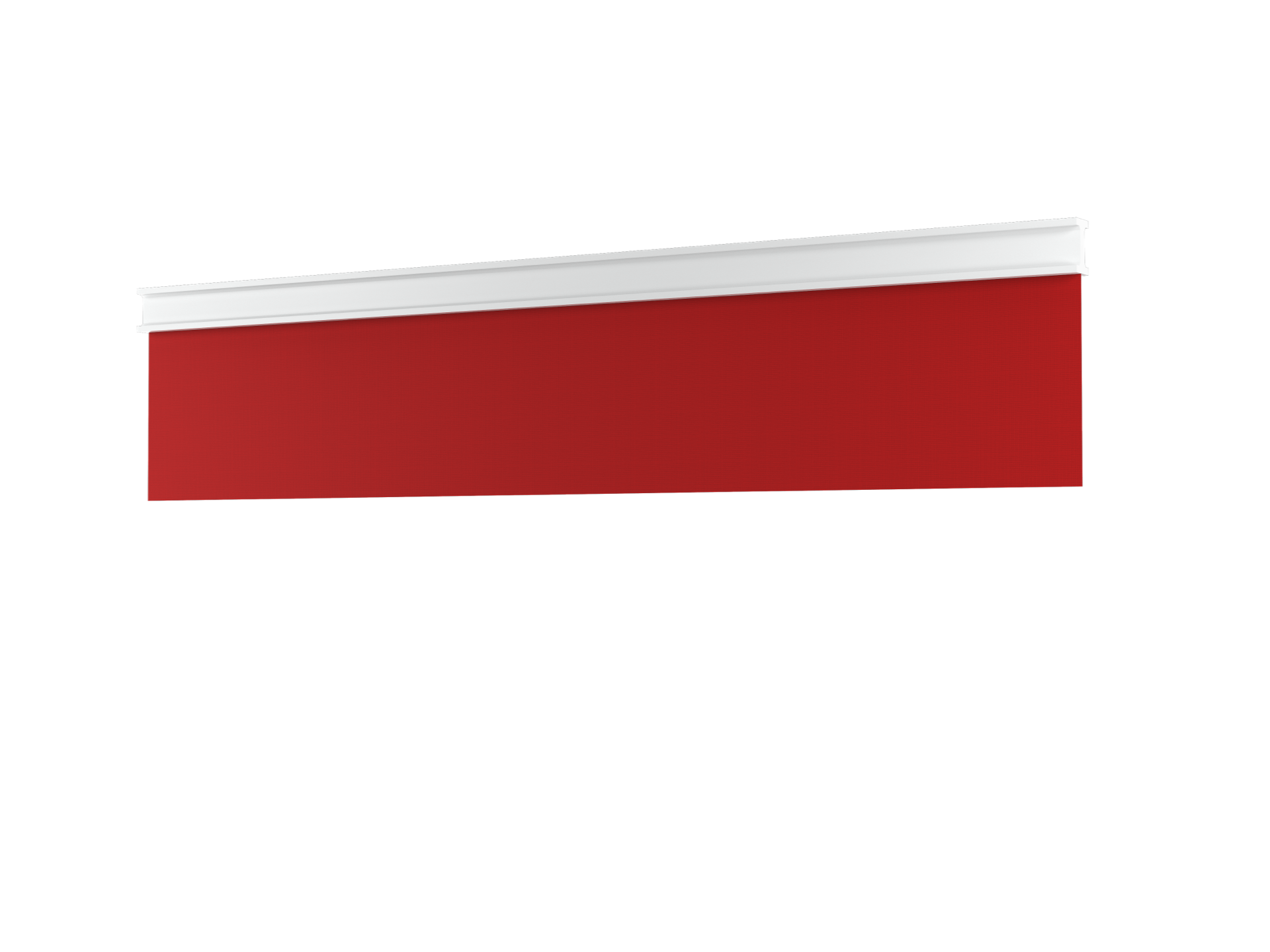

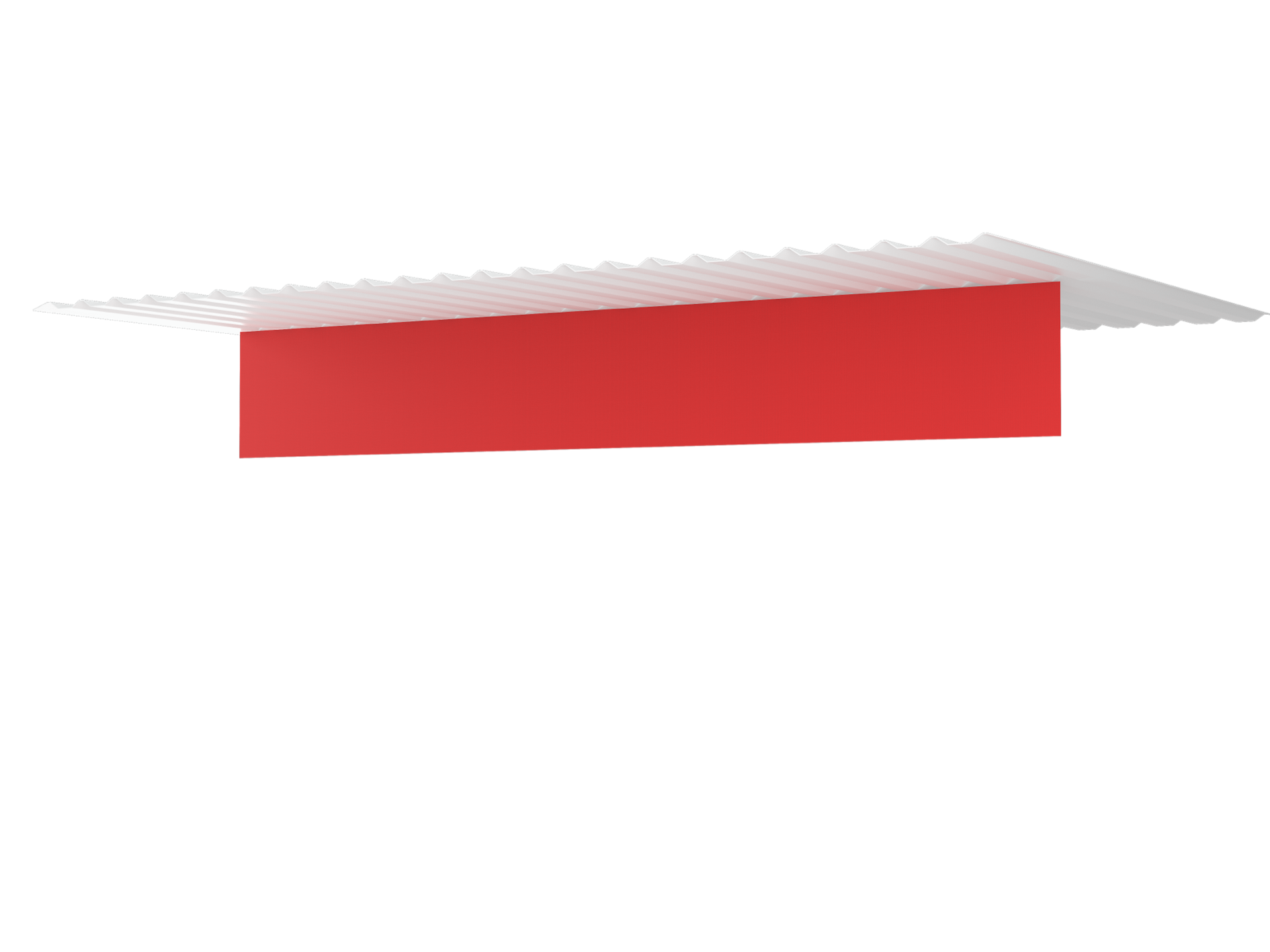

They are used to divide a building into smoke zones and have DH fire resistance class, thus limiting the spread of smoke for up to 30 minutes. Their construction is based on a smoke-tight glass-fibre fabric with a polyurethane coating. They are most often anchored directly to a concrete or steel structure. Compared with FK ROLL SMOKE, the static smoke barrier FK SMOKE is permanently visible — both in the rest position and in standby mode.

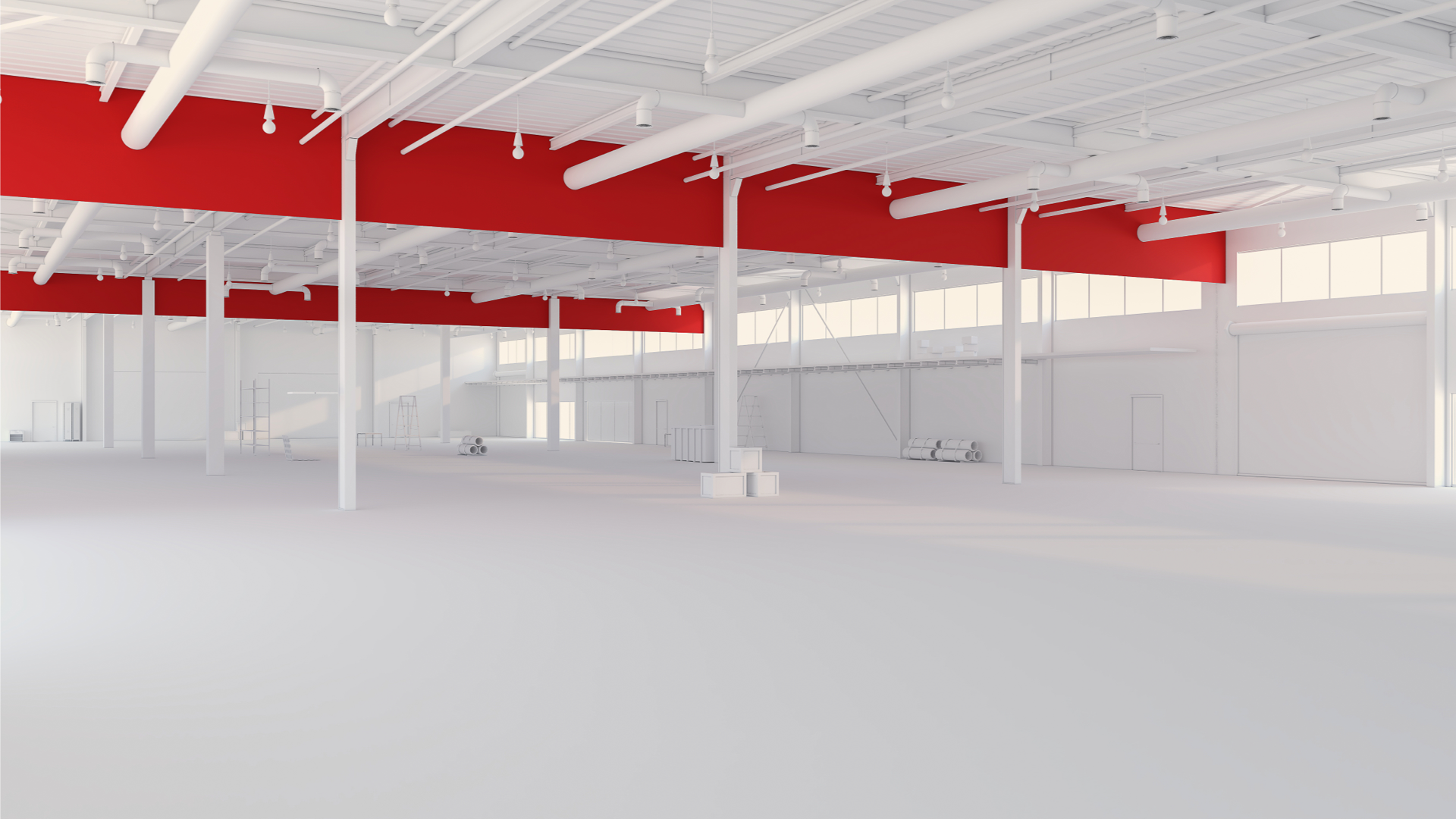

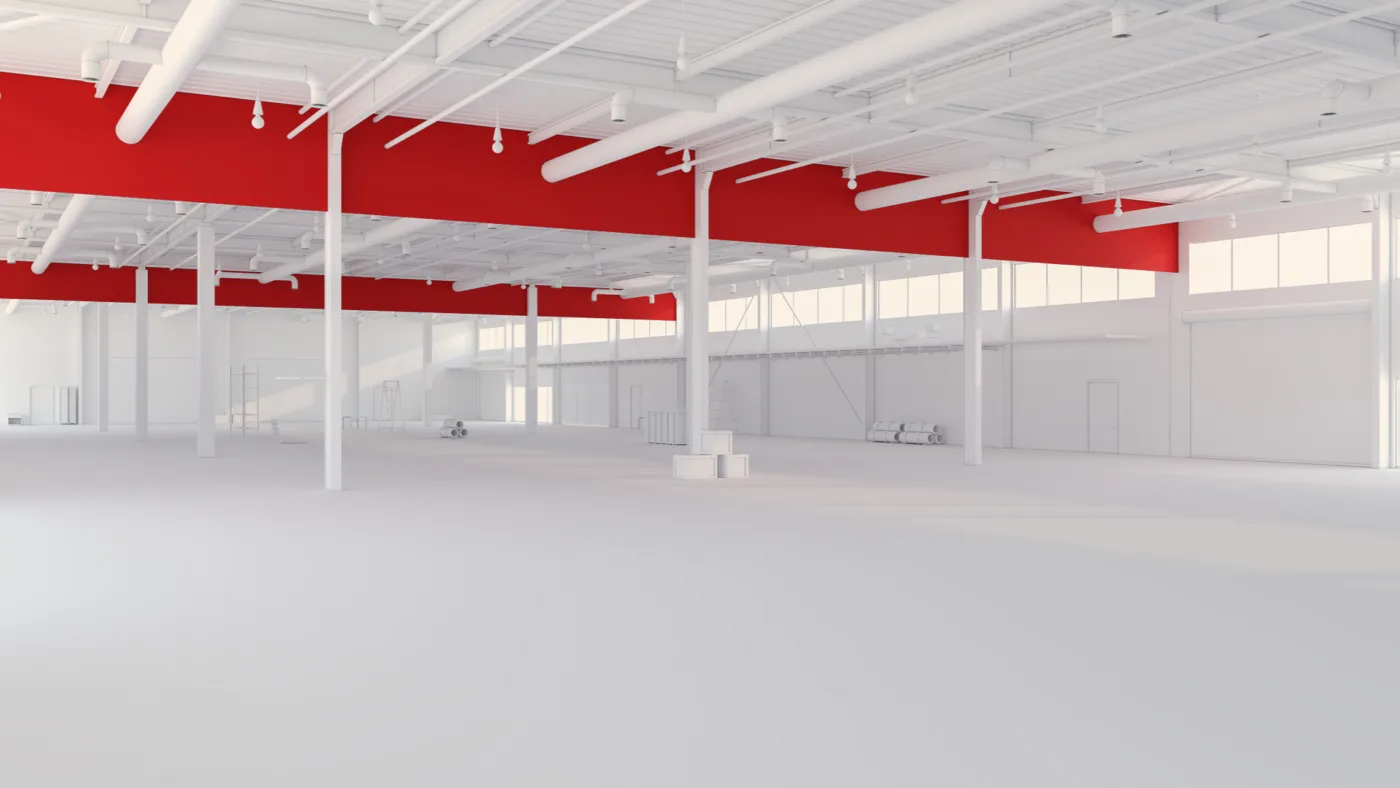

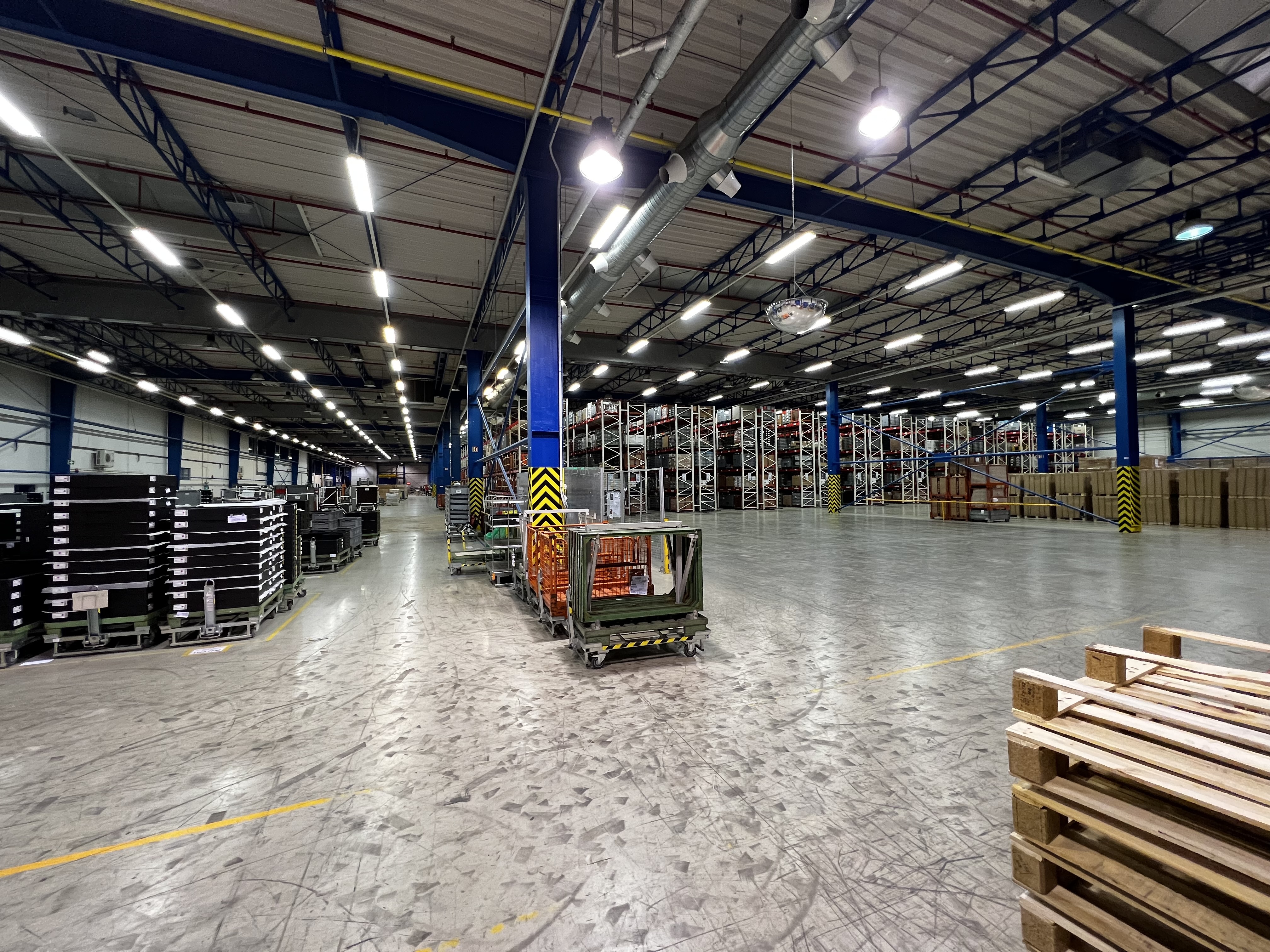

It is most often used in industrial buildings such as production halls or warehouses, where aesthetics are not a priority. It is also suitable where cable trays, pipework or other services run beneath the roof, as FK SMOKE can be adapted to them during installation.

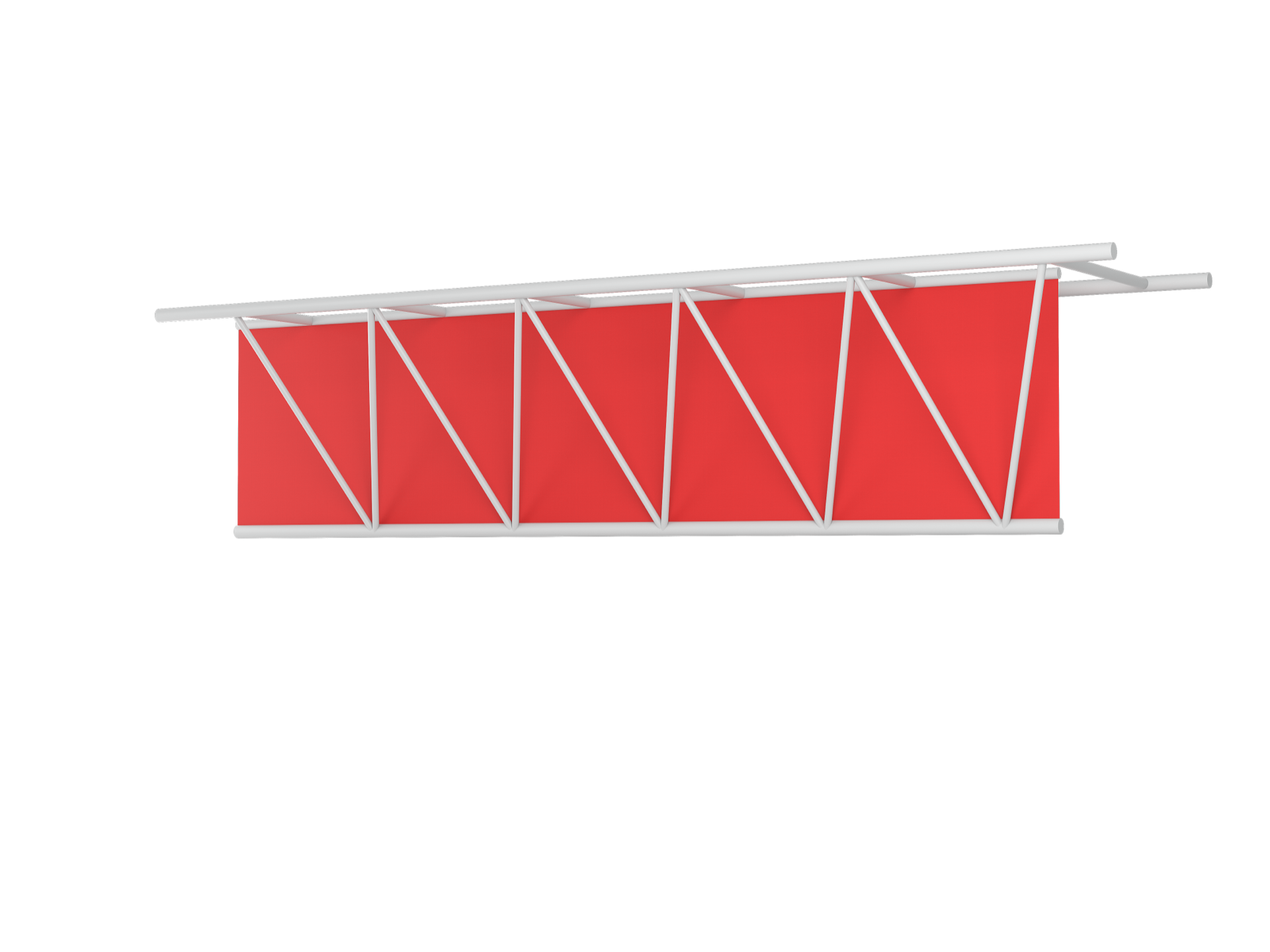

FK SMOKE Beam

Features

  • Can be anchored to almost any type of structure
  • FK SMOKE always hangs in the required position and prevents the spread of smoke. It suits situations where an open space is not required, or where a rolled-up fabric is not an aesthetic problem.
  • This smoke screen has no headbox and no control system, which also makes it cheaper than FK ROLL SMOKE.
  • Easily adapts to services and other obstacles
  • Can be manufactured in segments of any size

Technical data

FK SMOKE
Fabric material Glass fibre with a polyurethane coating
Fabric colour grey-silver
Fabric weight 460 g/m²
Maximum width ∞ m *
Maximum height ∞ m
* Individual modules can be joined together to achieve unlimited length.
