Smoke barriers make smoke extraction easier in a fire
Smoke is often more dangerous than fire. Smoke barriers divide a space into several smaller smoke zones, which are then easier to clear with a smoke and heat exhaust ventilation system. We offer active FK roll smoke barriers and static FK smoke screens, both with European quality certification.
-
FK servis - How smoke barriers work How smoke barriers work
- Smoke barriers are usually installed in larger buildings of several hundred square metres. They are fitted at ceiling level, where during a fire they divide the space into several smaller smoke zones.
- Each smoke zone usually has at least one rooflight that opens automatically in a fire, so that fans or natural smoke extraction clear the products of combustion faster. Smoke barriers therefore support smoke and heat exhaust ventilation systems.
- Smoke barriers are most often fixed to the roof beams, or they can be fixed directly to the roof.
-
FK servis Smoke barriers are divided into active and static Smoke barriers are either active or static
- Active smoke barriers work much like fire curtains. When there is no fire they are rolled up in a headbox and out of sight. In a fire they drop down.
- This solution is used mainly for aesthetic reasons, for example in shopping centres, supermarkets or the public areas of railway stations and airports. It also helps where a smoke barrier would get in the way of a crane or other equipment.
- Static smoke barriers are cheaper and are usually used in industrial buildings such as warehouses or production halls. Unlike the active ones, they stay in the lowered position at all times.
The smoke barriers you can choose from

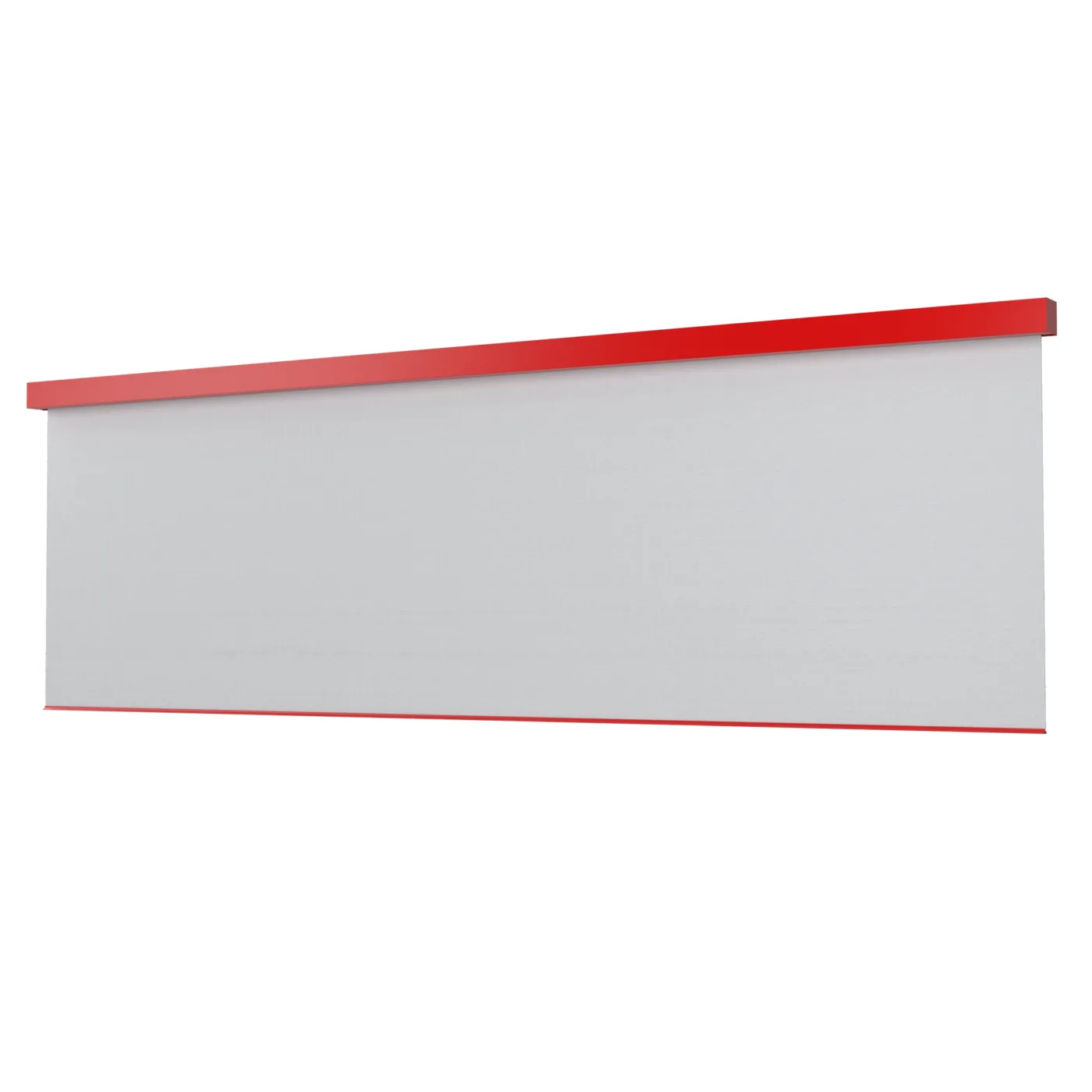

FK ROLL SMOKE
- Until there is a fire, the FK ROLL SMOKE smoke curtain is wound up in the…
- The FK ROLL SMOKE smoke barrier includes a backup power source in case of…
- When smoke detectors detect a fire or the operator presses the safety…
FK SMOKE
- Can be anchored to almost any type of structure
- FK SMOKE always hangs in the required position and prevents the spread of…
- This smoke screen has no headbox and no control system, which also makes…
Why buy your smoke barriers from us
We supply a complete solution, smoke ventilation included
If the rooflights and fans are not yet in place on site, we will supply and install them. We manufacture our own rooflights and façade and roof windows, and we import the other components from D+H, a proven supplier of fire protection equipment.
We manufacture and install smoke barriers ourselves
We use high-quality fabric from Germany. We make smoke barriers to measure so that they can be fixed to any structure. We can cope even when the building is finished and there is pipework or air conditioning running along the ceiling.
We connect the smoke barriers to your smoke ventilation
Already have fans and smoke vent rooflights installed? We will connect the active FK roll smoke barriers to your central unit so that they deploy during a fire and help clear the space.
Professional installation throughout the Czech Republic and Slovakia
Our team of experienced fitters will come and install the smoke barriers and the other components.
We hold the European CE certificate
Our smoke barriers have passed testing to European directives. We are proud to hold the CE certificate, the standard throughout the European Union.
We supply all the other components and extras
We provide a complete service for fire protection equipment. We can supply heat and smoke detectors, safety buttons, fire curtains and fire extinguishers too.
We will help you choose the right smoke barriers
Leave us your contact details. We will get in touch shortly and prepare a tailor-made quote.
We protect buildings in the Czech Republic and across Europe
Smoke barriers and smoke ventilation at the Mochovce nuclear power plant
Mochovce, Slovakia (since 2016)Two units of the nuclear power plant are protected by our smoke and heat exhaust ventilation and smoke barrier systems, made in larger-than-standard dimensions. It was a challenge if only because of the strict fire safety requirements.
Václav Havel Airport Prague
Prague, Czech Republic (since 2002)For Terminal 2 we developed special aluminium façade windows that had no equal anywhere in the world.
Smoke ventilation for the Fondation Louis Vuitton
Paris, France (since 2011)For this unconventional building we designed a smoke and heat exhaust ventilation system to French standards. Within two months we solved a problem that had had Paris stumped for two years.
